Troubleshooting
4-114 Samsung Electronics

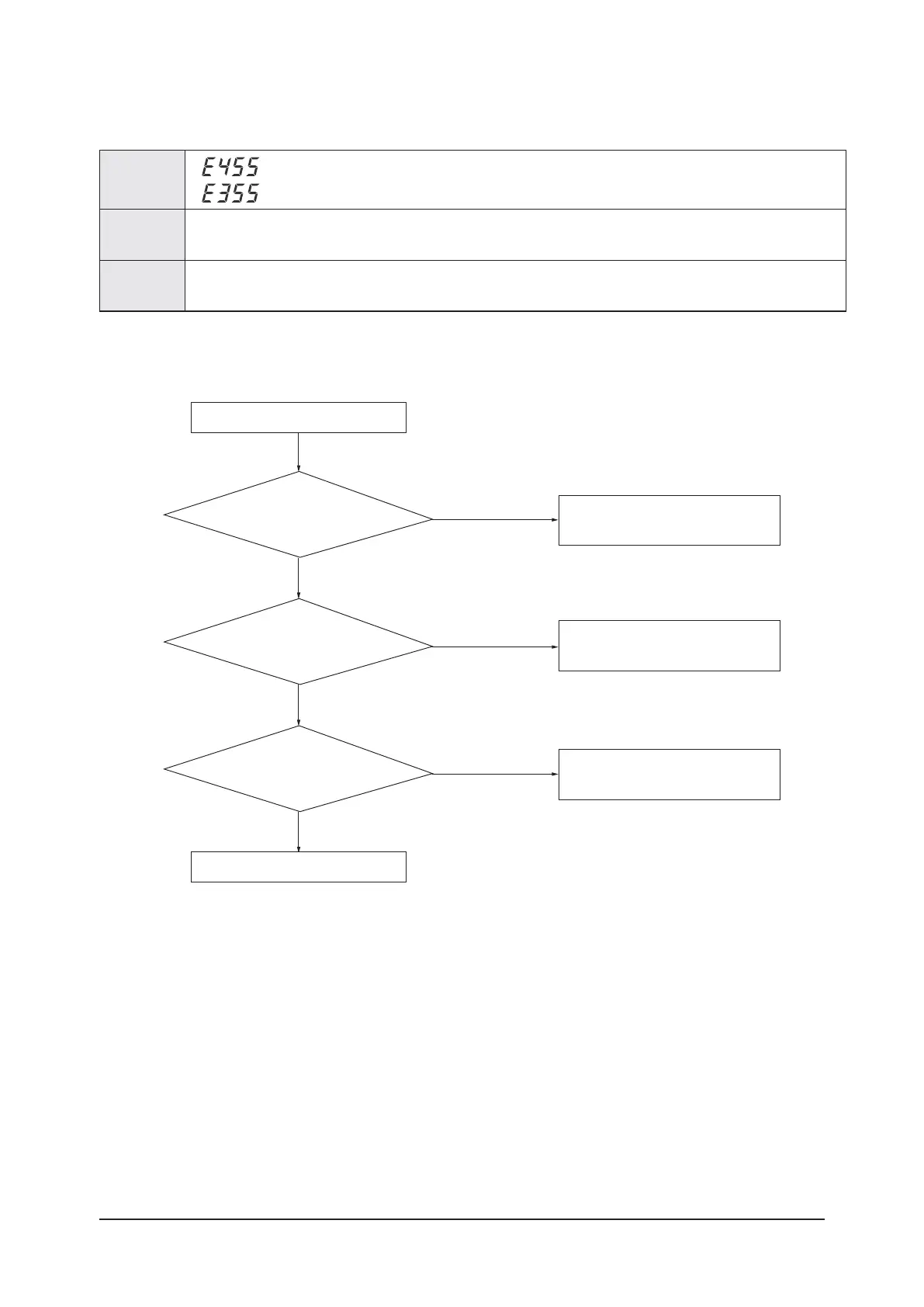

4-4-70 Fan IPM Overheat error
Outdoor unit
display
(FAN1 PCB)
(FAN2 PCB)
Judgment
Method
 IPM internal temperature more than 85°C (E455, E355)
Cause of prob-
lem
 Heat sink and IPM assembly defective.
 Defective heat sink cooling
Power Off
Yes
Did check the foreign objects between
the heat sink pin?
Remove foreign objects
*Cold heat sink assembly defect occurs.
No
Yes
Is the bolt of the heat sink fully tightened?
Tighten Bolt
No
Yes
Did check the foreign objects between
the heat sink and IPM?
No
1.
Cause of problem
Complete
Remove foreign objects and
apply the heat sink grease.
And then reassembly

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
