Troubleshooting
4-72 Samsung Electronics

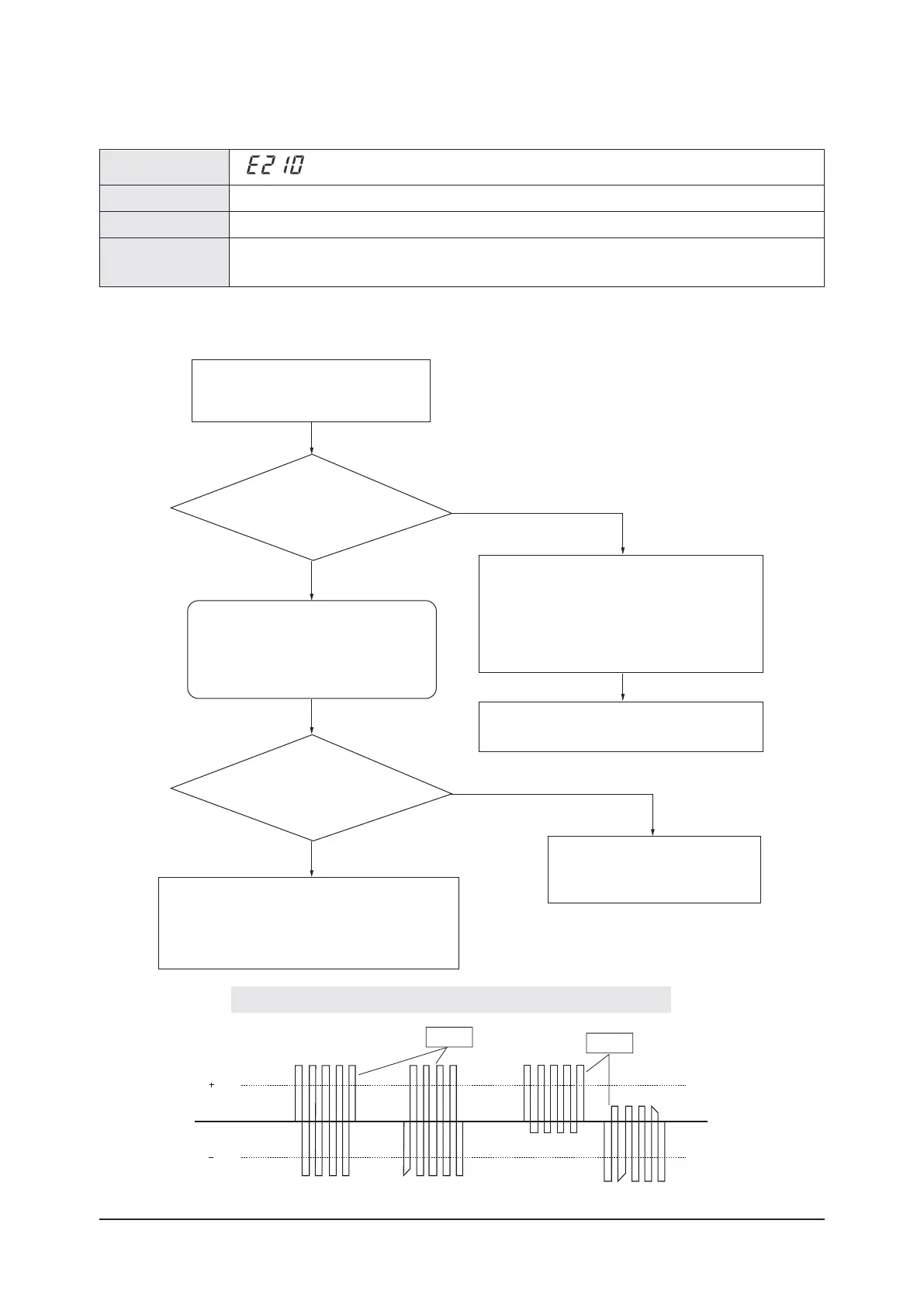

4-4-28 Communication Error between MCU and Outdoor Unit after Tracking is Completed
t$PNNVOJDBUJPOFSSPSCFUXFFOJOEPPSBOEPVUEPPSVOJUTBOETFUVQFSSPSPGJOEPPSVOJUJOTUBMMBUJPORVBOUJUZ
setup switch
Judgment Method
Special Cause
t0VUEPPSVOJUJTVOBCMFUPDPNNVOJDBUFGPSUXPPSNPSFNJOVUFTEVSJOHPQFSBUJPOOPSFDFQUJPOPGSFMPDBUJPO
Outdoor Unit Display
1. Inspection Method
Indoor Unit Display
-
Yes
Press the PCB reset key (K3) of the outdoor unit
and check the display module.
Is the voltage between the 2 cables a
square wave with DC±0.7V or more?
Is there no MCU response at all on the
display mod
ule during the tracking?
Remove the communication cable which
connects the outdoor unit to the MCU, and measure
the 2 cables of the outdoor unit with a scope.
Connect the communication cable which connects the
outdoor unit to the M
CU again, remove all communication
connectors from the MCU PCB. Connect each unit one by one,
and find the MCU which interferes with communication to
check and change the MCU PCB.
After two minutes, find the MCU which displays
the communication error
and check if the PCB address
settings are overlapped. (A communication error occurs
if the indoor unit addresses are overlapped.)
- In this case, a communication error will occur in every
MCU (two or more units) with the address incorrectly set.
Inspect the communication cable
and the connector of the outdoor PCB
and then change the PCB.
0.7V
0.7V
Good
Defective
If there is no peculiarity in the address, check
communication and then change the MCU PCB.
Yes
No
No
❈ Essential Requirements before Changing PCB in Case of Communication Error: Refer to p.4-80

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
