Disassembly and Reassembly
3-48 Samsung Electronics
QDuct type(Mid pressure1)

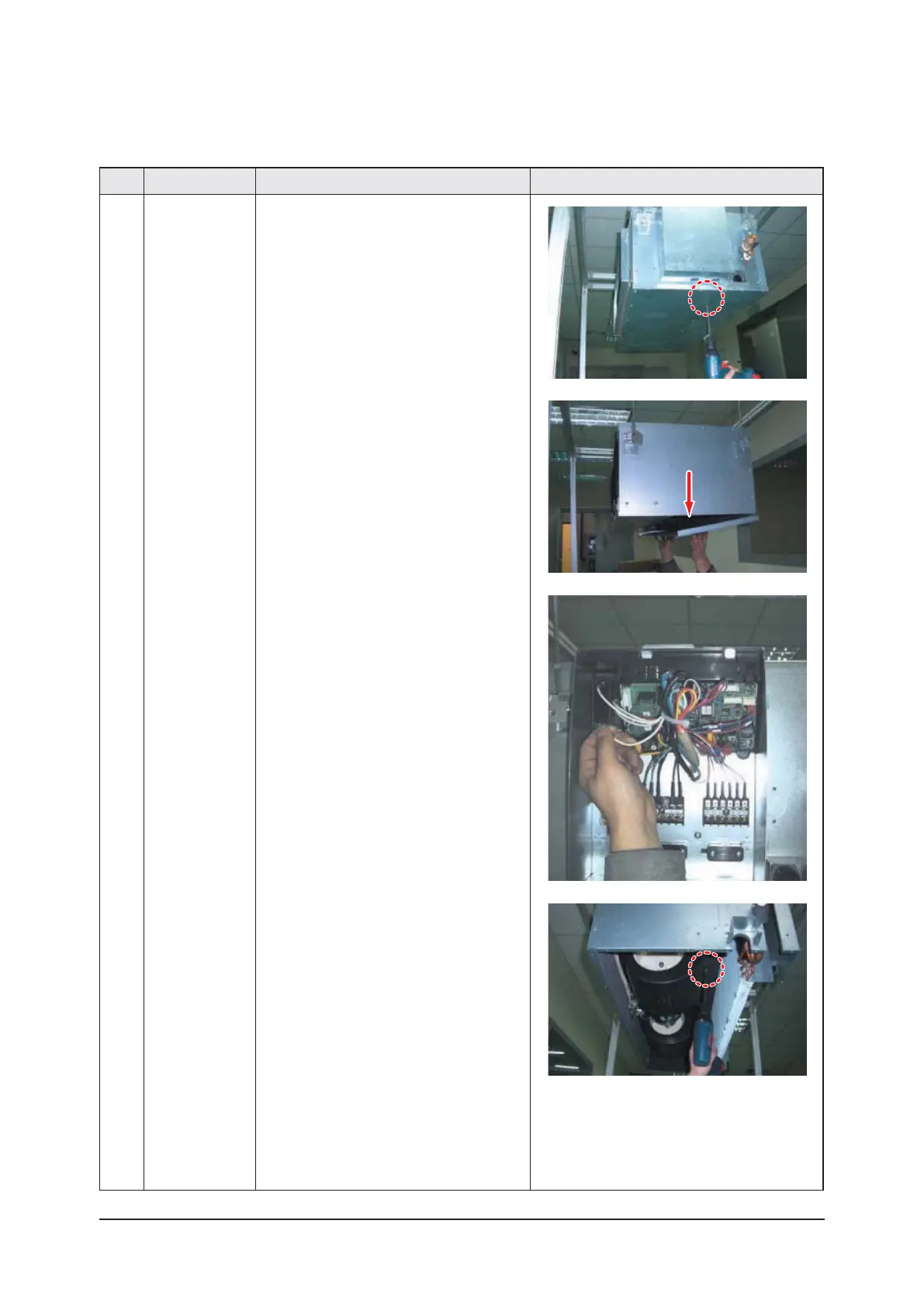

No Parts Procedure Remark
1 Filter 1) After disassembling 16 places indicating
screws,detach Ass'y Cabi Bottom Blower.
(Use +Screw Driver.)
2) Detach from Ass'y Control In the capacitor
connection wire between the Motor Fan and
housing connector.
3) After disassembling 2 places indicating
screws,detach the 2 Fan Case.
(Use +Screw Driver.)

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
