Troubleshooting
Samsung Electronics 4-83
1.
Cause of problem

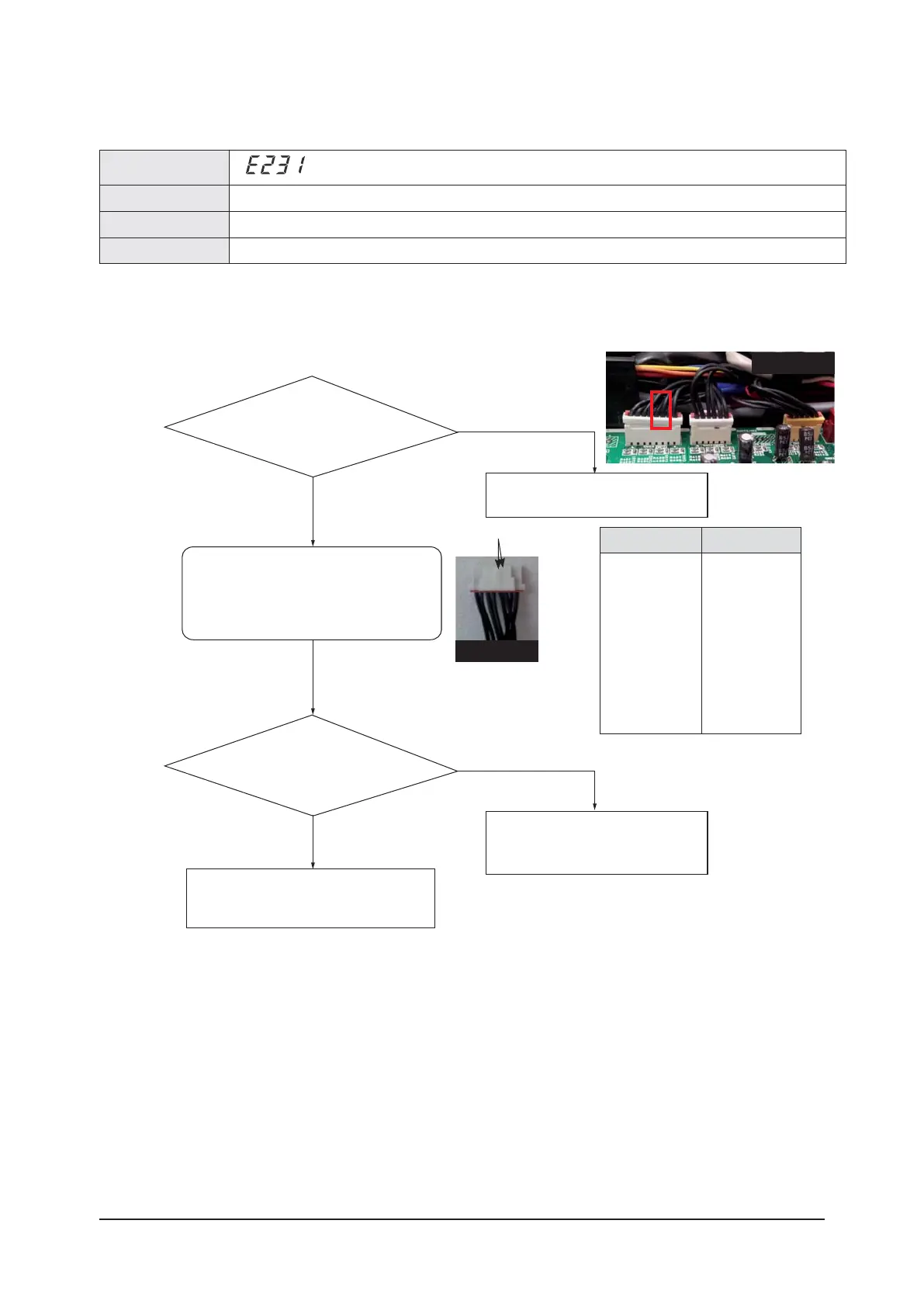

4-4-39 Cond Out Temperature Sensor Error (Open/Short)
ስ (Operation) ×(Reservation) ስ (Blast) ×(Filter) ×(Defrost)
 Disconnection or breakdown of relevant sensor .
 Refer to the judgment method below.
Indoorunit display
Judgment Method
Cause of problem
Outdoor unit display
Yes
Did the outdoor Cond Out
sensor connector break away from
the PCB?
Did the resistance
value significantly stray from the following
temperature table?
After separating the outdoor Cond Out
sensor connector from the PCB, measure the resistance
value between the two terminals.
Restart operation after replace the PCB
Restart operation after connecting
the connector to the PCB.
Repla
ce this part as it is the defective of the
outdoor Cond Out sensor itself.
Yes
No
No
Temperature (°C)
70
60
50
40
30
20
10
0
-10
Resistance (K)
2.2
3.0
4.2
5.8
8.3
12.1
18.0
27.3
43.0
Resistance value measure part
COND
COND

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
