Reverse Side
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
DISPLAY OUT

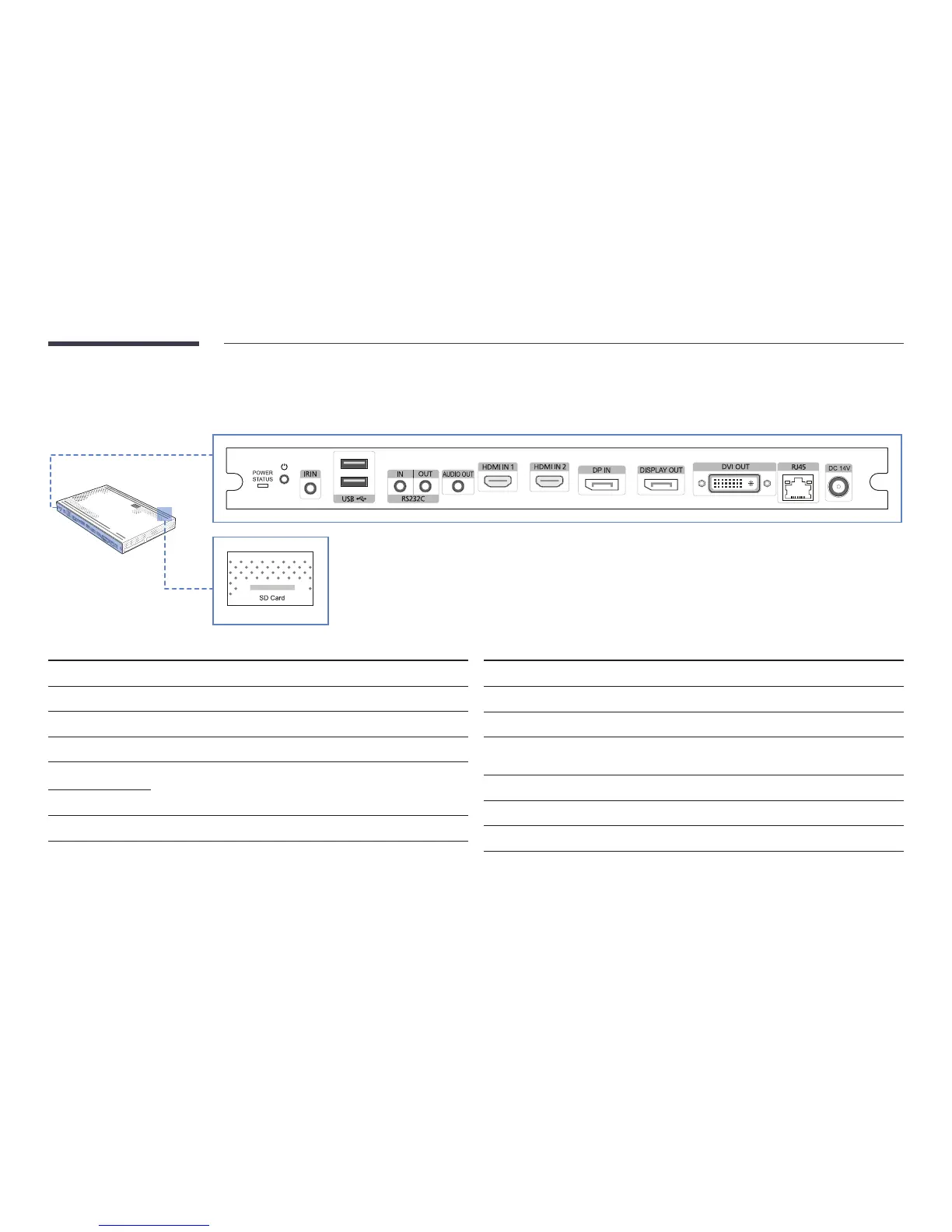

Port Description
POWER STATUS
View the power status of the Signage Player Box.
P
Power on or off the Signage Player Box.
IR IN
Connect to the IR blaster cable.
USB
¨
Connect to a USB memory device.
RS232C OUT
Connects to MDC using an RS232C adapter.
RS232C IN
AUDIO OUT
Connects to the audio of a source device.
Port Description
HDMI IN 1, HDMI IN 2
Connects to a source device using a HDMI cable or HDMI-DVI cable.
DP IN
Connects to a PC using a DP cable.
DISPLAY OUT
Connects to another display device, using a DP cable.
DVI OUT
Use the DVI cable or HDMI-DVI cable to connect the Signage Player Box
to the display device.
RJ45
Connects to MDC using a LAN cable.
DC 14V
Connects to the AC/DC adapter.
SD Card
Connect to an SD memory card.
