18_
connection & installation
connection & installation

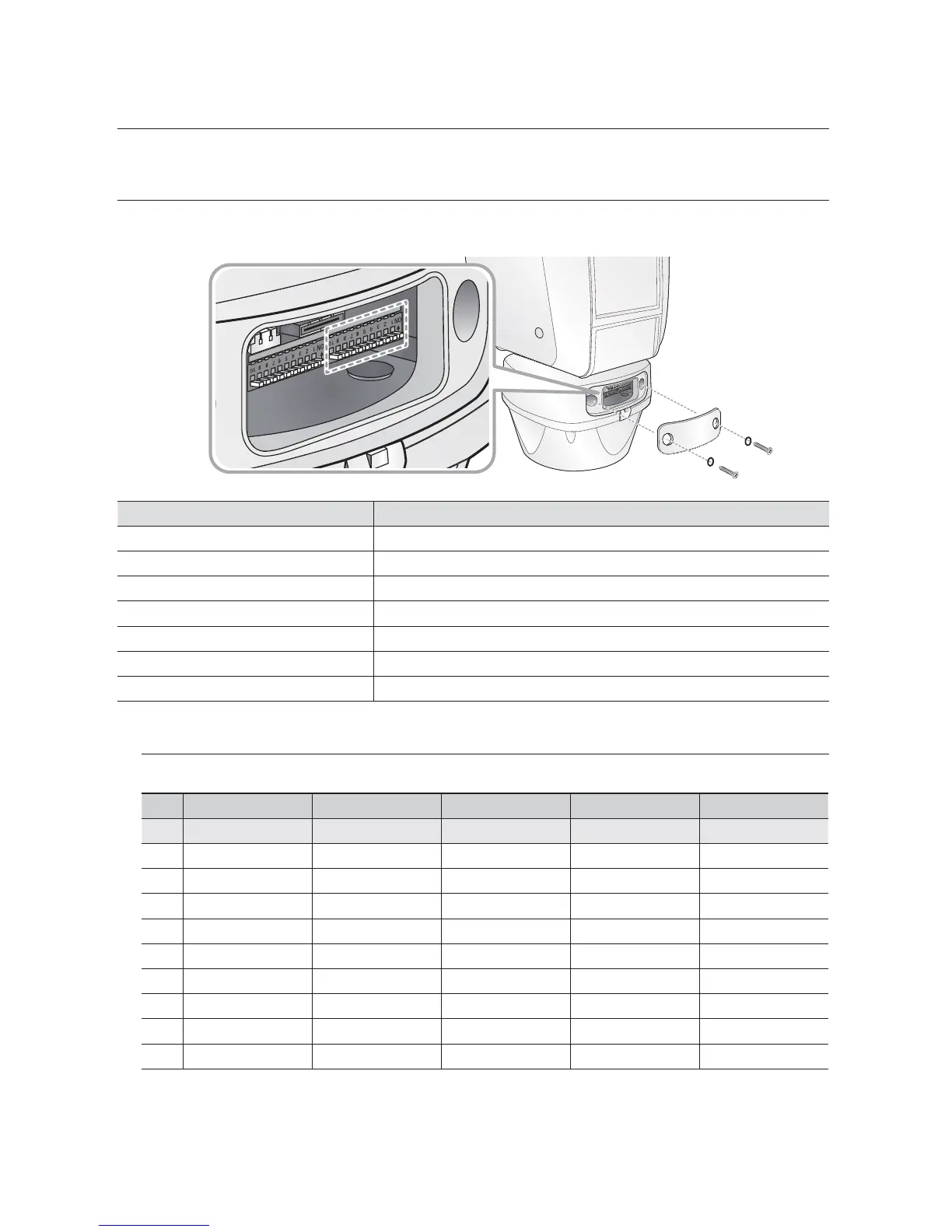

COMMUNICATION PROTOCOL DIP SWITCH SETTINGS
Coaxial communication automatically detects signals, and so does not require a separate communication
setup process.
Pin No. Purpose
1 ~ 4 Protocol Settings
5 Transfer Method (RS-485/422) Settings
6 Response Mode Settings
7 Terminal Resistance TX
8 Terminal Resistance RX
9 TEST
10 Factory Default
Protocol Settings
Select a communication protocol for the camera.
No Protocol #4 #3 #2 #1
1 SAMSUNG-T OFF OFF OFF OFF
2 SAMSUNG-E OFF OFF OFF ON
3 Pelco-D OFF OFF ON OFF
4 Pelco-P OFF OFF ON ON
5 Panasonic OFF ON OFF OFF
6 Vicon OFF ON OFF ON
7 Honeywell OFF ON ON OFF
8 AD OFF ON ON ON
8 GE ON OFF OFF OFF
10 Bosch ON OFF OFF ON
To Next Page
