P(Priority) :
Set the priority of Alarm Inputs. If more than one alarm is simultaneously activated,
the alarm with the highest priority activates before the others. Once the alarm is canceled, the next
highest priority alarm activates.
SEQ. :
Enables setting up a sequence action for the camera in response to an alarm. Available sequence
actions are Preset, Swing, Group, Trace and A.Pan.
Alarm Output
Setting 1,2 :
Enables selecting an Alarm Output method.
Each of 1, 2, 3 and MD of the selected item indicates the
applicable alarm input and motion detection ports. You can
set the alarm output for each of 3 alarm inputs and MD. You
can also assign more than one alarm input and MD to one
alarm output port.
Timer 1, 2 :
On : Retains an alarm output for a set duration from a
minimum of 1 second to a maximum of 60 hours upon
the alarm occurrence.
MOMENT : Retains an alarm output only until the alarm is canceled.

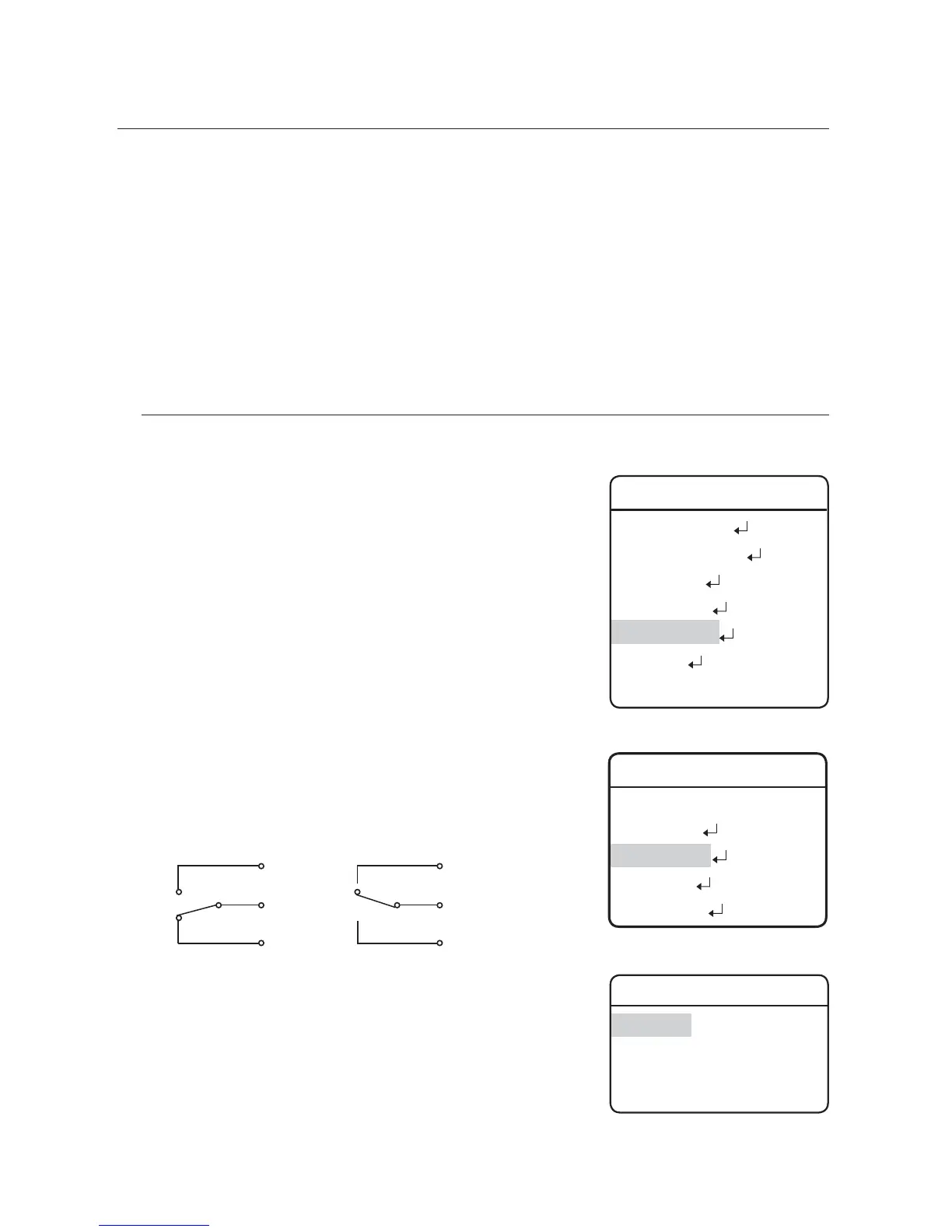

The Alarm Output is equipped with a relay circuit. The
operation of the alarm output port is as shown in the
diagram below. (Based on NO – Normal Open)
Ä
/0/0
/$
$0.
Alarm Out OFF
/$
$0.
Alarm Out ON
z
z
z
-
z
-
-
-
Æ
Alarm Output
偓 Setting1 þ 1 þ 2 þ 3 þ MD
Timer1 OFF
Setting2 þ 1 þ 2 þ 3 þ MD
Timer2 OFF
Alarm Setting
Alarm Enable OFF
Alarm Input
偓 Alarm Output
Aux Output
IR Illuminator
Main Menu
 Camera Setting
#
 Sequence Setting
#
 P/T Setting
#
 OSD Setting
#
偓 Alarm Setting
#
 Initialize
#
 Status
