● SETUP
Connecting the power connector and GND incorrectly to the NC/NO and COM ports may cause a short circuit and fi re,
damaging the camera.
The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A. Operating the
camera beyond the capacity may decrease the camera’s lifespan and damage it.
Aux Output
AUX Output menu is to operate the camera’s peripheral devices such as lamps and sirens through the
controller and switches as well as through network communications.
On/Off :
Cancels or activates the Aux function.
Time :
Enables setting up a duration for the Aux output when the Aux
command is transmitted from the controller. A duration can
be selected from a minimum of 1 second to a maximum of 60
minutes.
Ä
NO
COM
AUX Off
NO
COM
AUX On
Connecting the power connector and GND incorrectly to the Aux terminal’s NO and
COM ports may cause a short circuit and fi re, damaging the camera.
The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A. Operating the camera beyond the capacity may decrease the camera’s lifespan and damage it.
※ The Aux Output of Alarm Setting is not available if Wiper function is set to ON.
- For more information, see page 61.
M
z
z
M
Æ

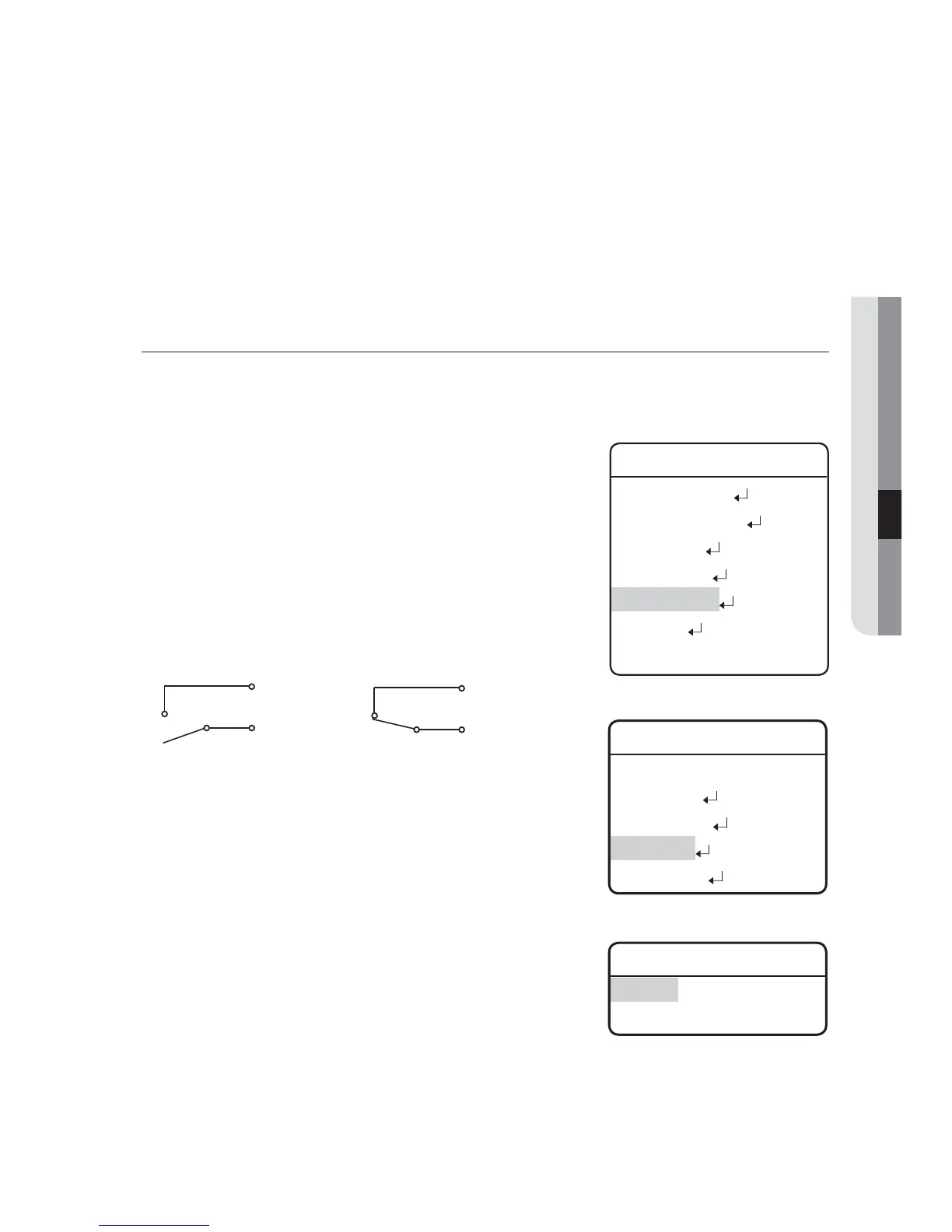

Alarm Setting
Alarm Enable OFF
Alarm Input
Alarm Output
偓
Aux Output
IR Illuminator
Main Menu
Camera Setting
#
Sequence Setting
#
P/T Setting
#
OSD Setting
#
偓
Alarm Setting
#
Initialize
#
Status
Æ
Aux Output
偓
On/Off OFF
Time OFF
To Next Page
