Baud Rate Settings
Select the transfer speed of a selected communication protocol.
No Baud Rate(BPS) #9 #10
1 2,400 ON ON
2 4,800 ON OFF
3 9,600 OFF OFF
4 19,200 OFF ON
To use a third party controller with this product, please contact our After-Sales Service or Technology Department.
Controls Using Different Protocols
AD Protocol VICON Protocol GE Protocol
Entering Camera OSD 3+Auxilary ON IRIS OPEN IRIS OPEN
Exiting Camera OSD 3+Auxilary OFF IRIS CLOSE IRIS CLOSE
ENTER IRIS OPEN IRIS OPEN IRIS OPEN
ESC IRIS CLOSE IRIS CLOSE IRIS CLOSE
For more information about the protocols, refer to our offi cial website.
The product’s DIP switch is set to OFF when shipped, and the default values are presented as shadowed in corresponding
settings table.

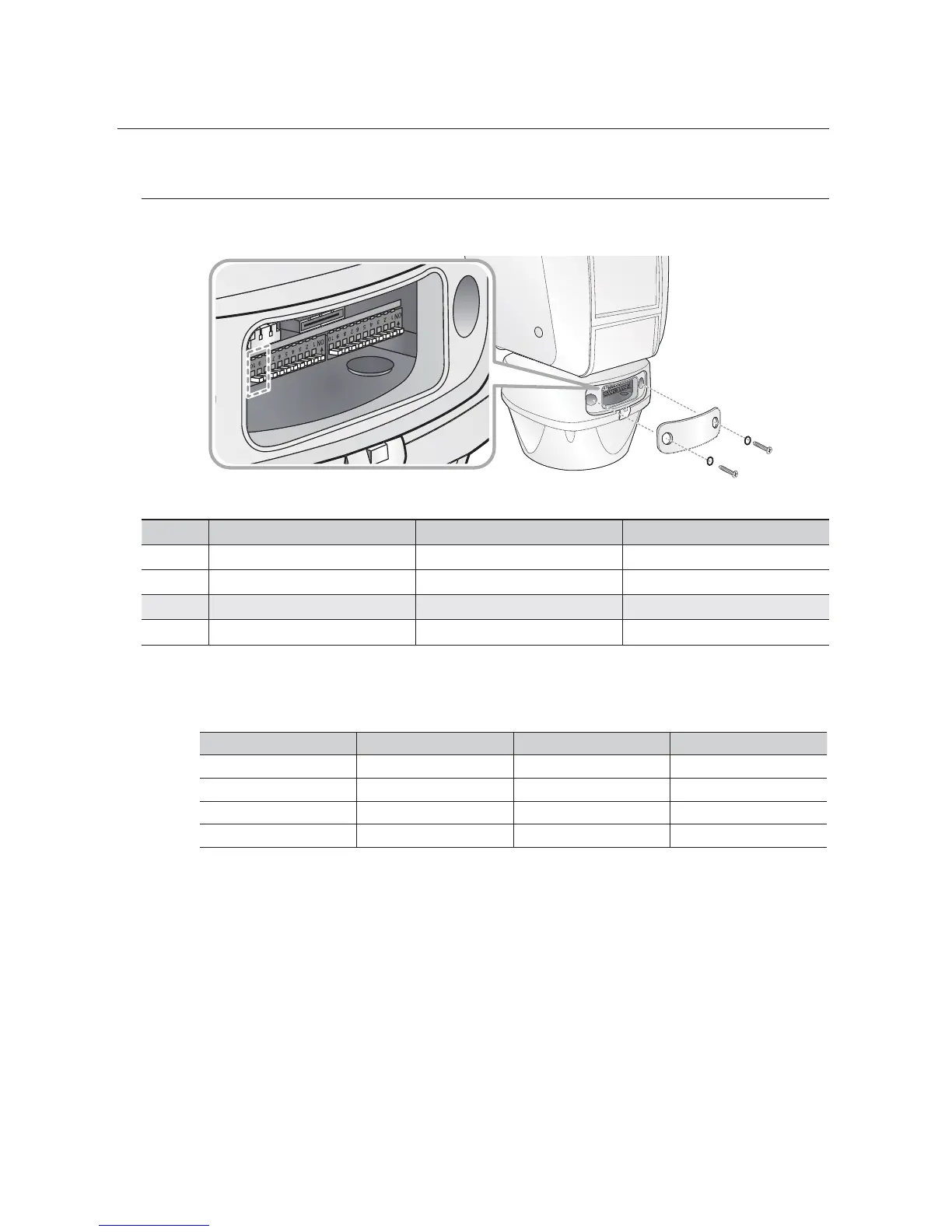

Remove the rubber packing of the DIP switch cover to reveal the switch settings.
