10/121 Revision 05 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DJH • 500-8067.9

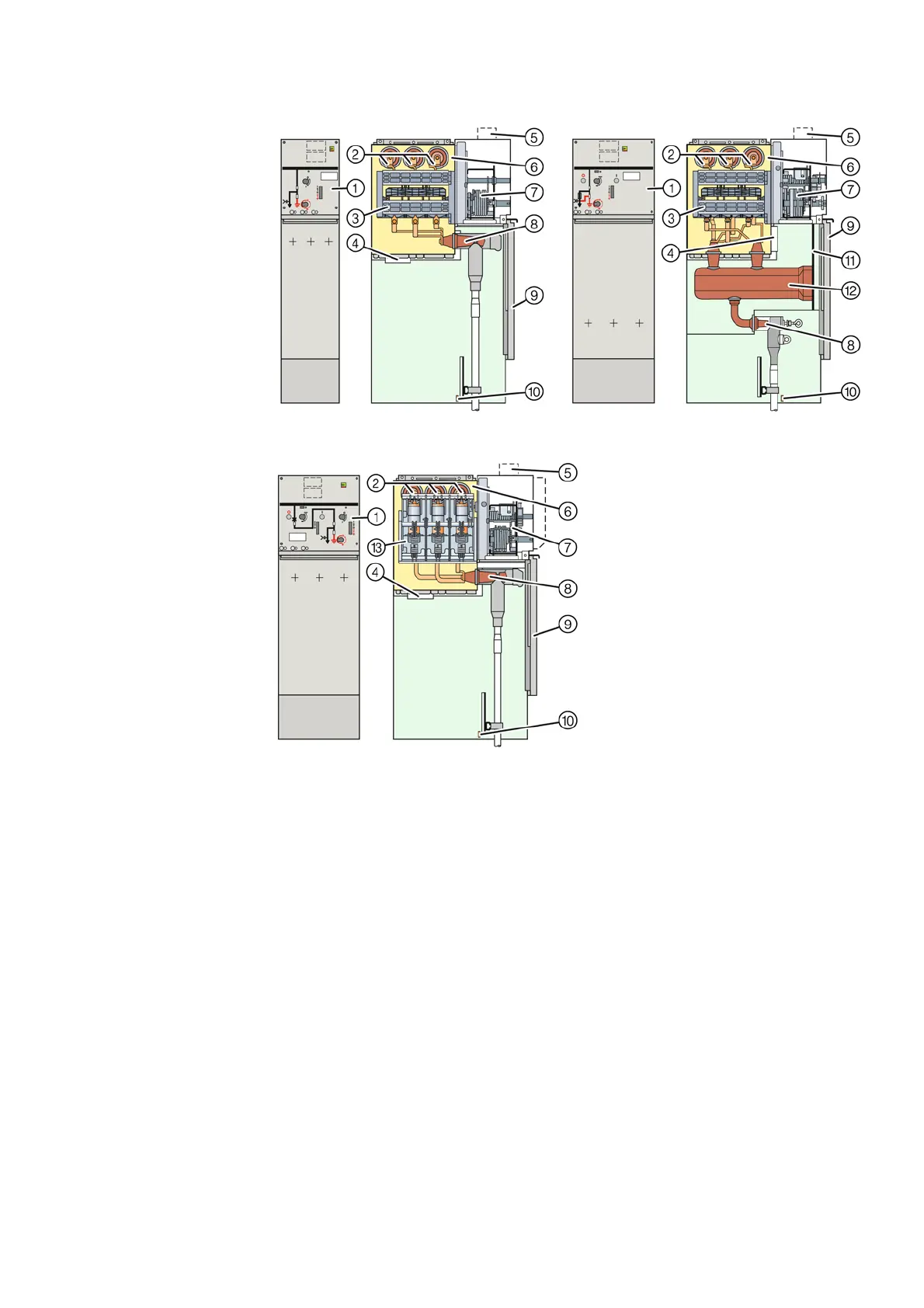

Examples for panels
Fig. 5: Circuit-breaker panel type 2
Fig. 3: Ring-main panel type R Fig. 4: Transformer panel type T
①
Control board
⑧
Bushing for cable plug
②
Busbar
⑨
Cable compartment cover
③
Three-position switch-disconnector
⑩
Earthing busbar
④
Pressure relief device
⑪
Partition
⑤
Wiring duct (removable)
⑫
HV HRC fuse assembly
⑥
Switchgear vessel
⑬
Vacuum circuit-breaker
⑦
Operating mechanism of switching
device
