Operation
19.4 Switching the three-position disconnector from OPEN to CLOSED position
Preconditions • Circuit-breaker in OPEN position
• Three-position disconnector in OPEN position
➭ Check service readiness (see page 85,
"Ready-for-service indicator").
➭ Remove the padlock (optional) from the
locking device of the three-position
disconnector.
Releasing the actuating
opening

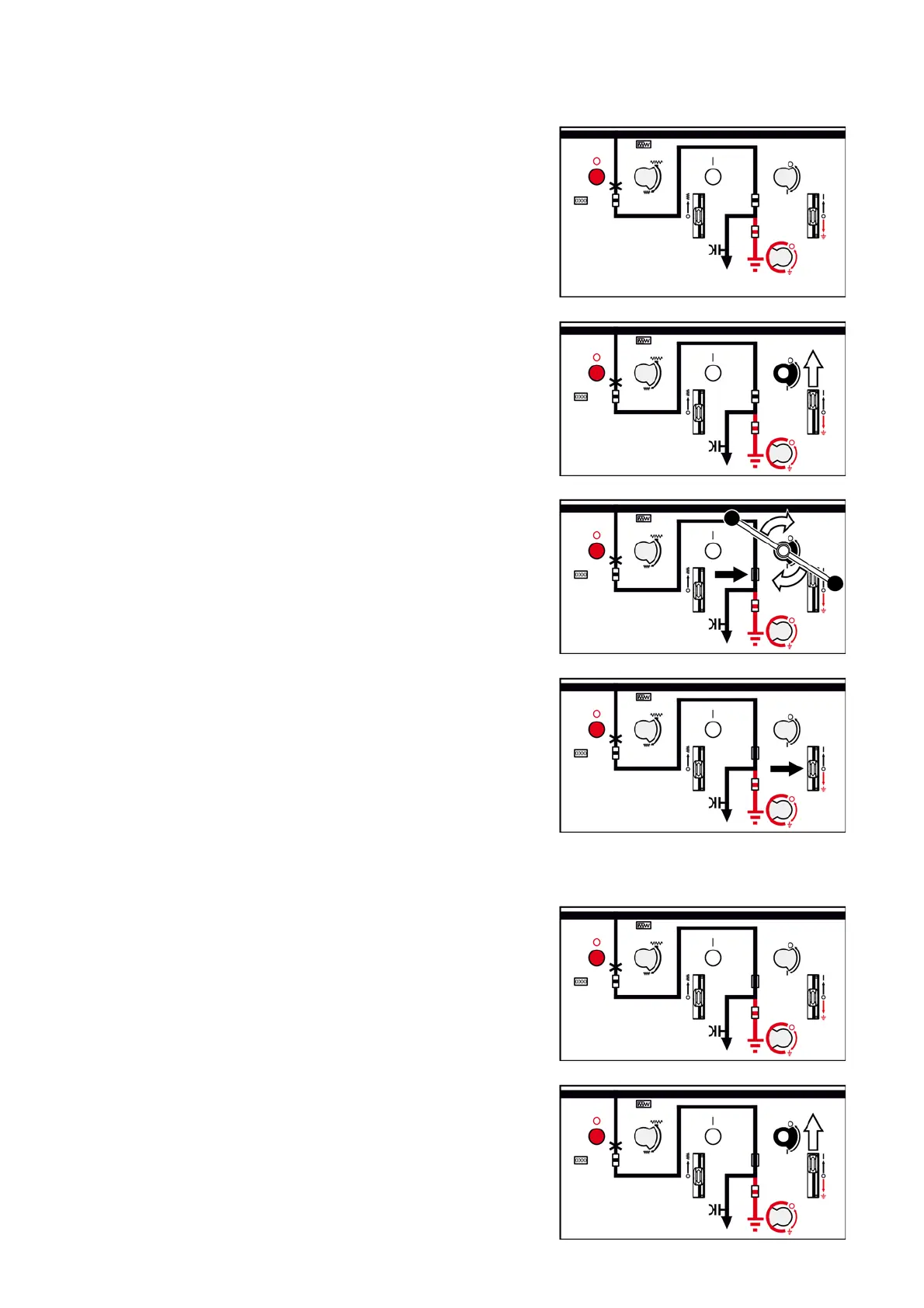

➭ Push the control gate of the three-position
disconnector upwards, and hold it.
✔ The actuating opening of the disconnector
is open.
Switching to CLOSED
position
➭ Insert the operating lever and turn clockwise
as far as it will go.
✔ The position indicator of the disconnector
shows the CLOSED position.
Final activities ➭ Remove the operating lever.
✔ The control gate returns to its initial
position.
➭ Fit the padlock (optional) on the locking
device in the desired position (see page 87,
"Mechanical interlocking with padlock").
19.5 Switching the three-position disconnector from CLOSED to OPEN position
Preconditions • Circuit-breaker in OPEN position
• Three-position disconnector in CLOSED
position
➭ Check service readiness (see page 85,
"Ready-for-service indicator").
➭ Remove the padlock (optional) from the
locking device of the three-position
disconnector.
Releasing the actuating
opening
➭ Push the control gate of the three-position
disconnector upwards, and hold it.
✔ The actuating opening of the disconnector
is open.
