Installation
Transport facilities
Switchgear transport with
transport eyes
The transport eyes are pre-assembled at the factory.
➭ Attach the lifting equipment or the rod.
➭ Transport the switchgear.

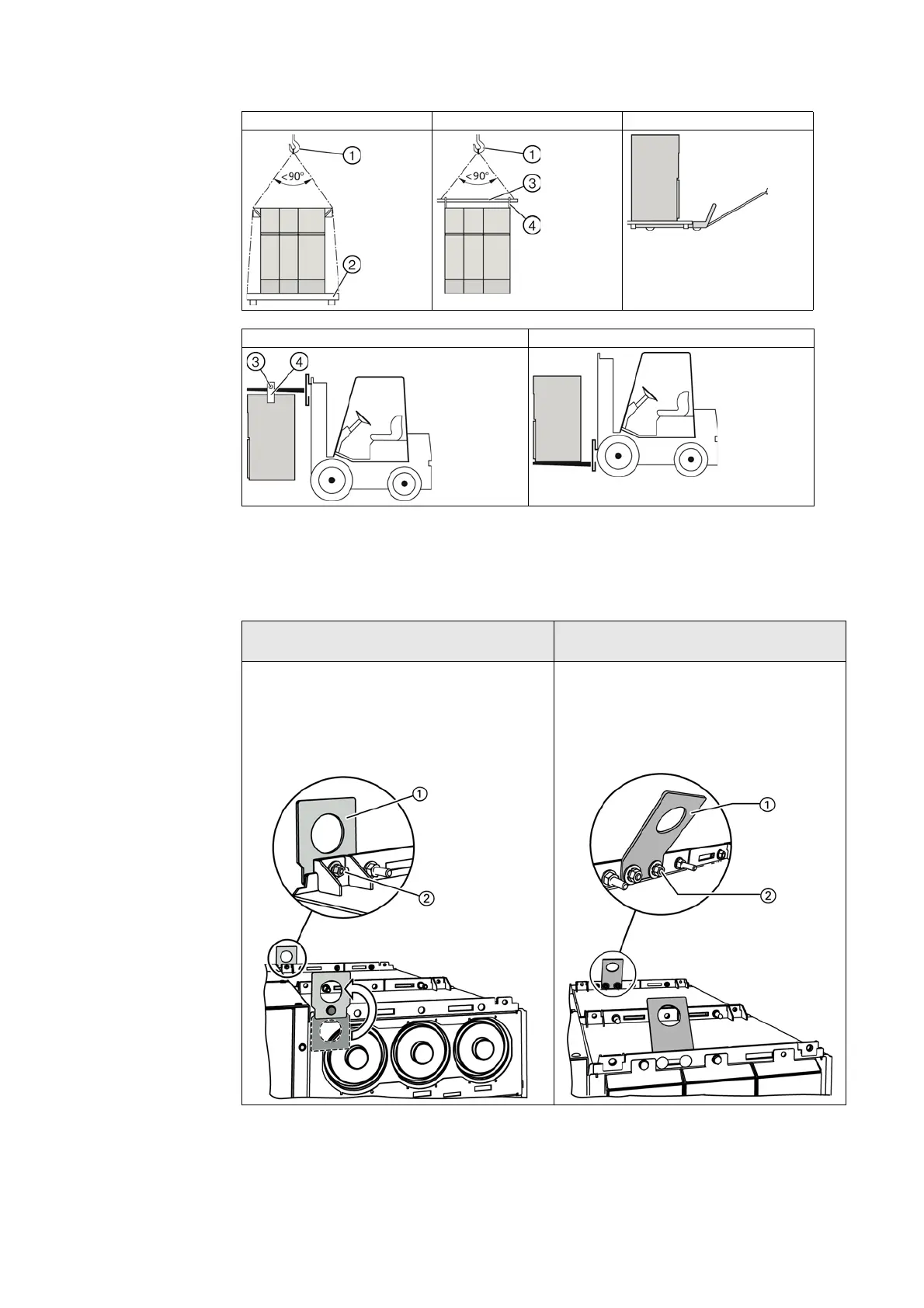

Craning with pallet Transport with crane rod Transport with lifting truck
Transport with fork-lift truck, suspended Transport with fork-lift truck, standing
①
Crane hook
③
Crane rod (Ø 40 mm, observe switchgear weight)
②
Transport pallet
④
Lifting eye
For delivery without low-voltage compartment and
without pressure absorber:
For delivery with low-voltage compartment or
pressure absorber:
Before transporting the switchgear, the transport eyes
must be turned.
➭ Undo the bolt-and-washer assembly
② of the
transport eyes
① , and turn the transport eyes
upwards by 180°.
➭ Re-tighten the bolt-and-washer assembly
② .
The transport eyes are fixed to the clamping plate
with 2 bolt-and-washer assemblies each.
①
Lifting eye
②
Bolt-and-washer assembly
