Installation
56/121 Revision 05 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DJH • 500-8067.9
Removing the transport
angles
The panels are fixed on the wooden pallets with transport angles on both sides.
➭ Unscrew all bolts of the transport angles and remove the transport angles.

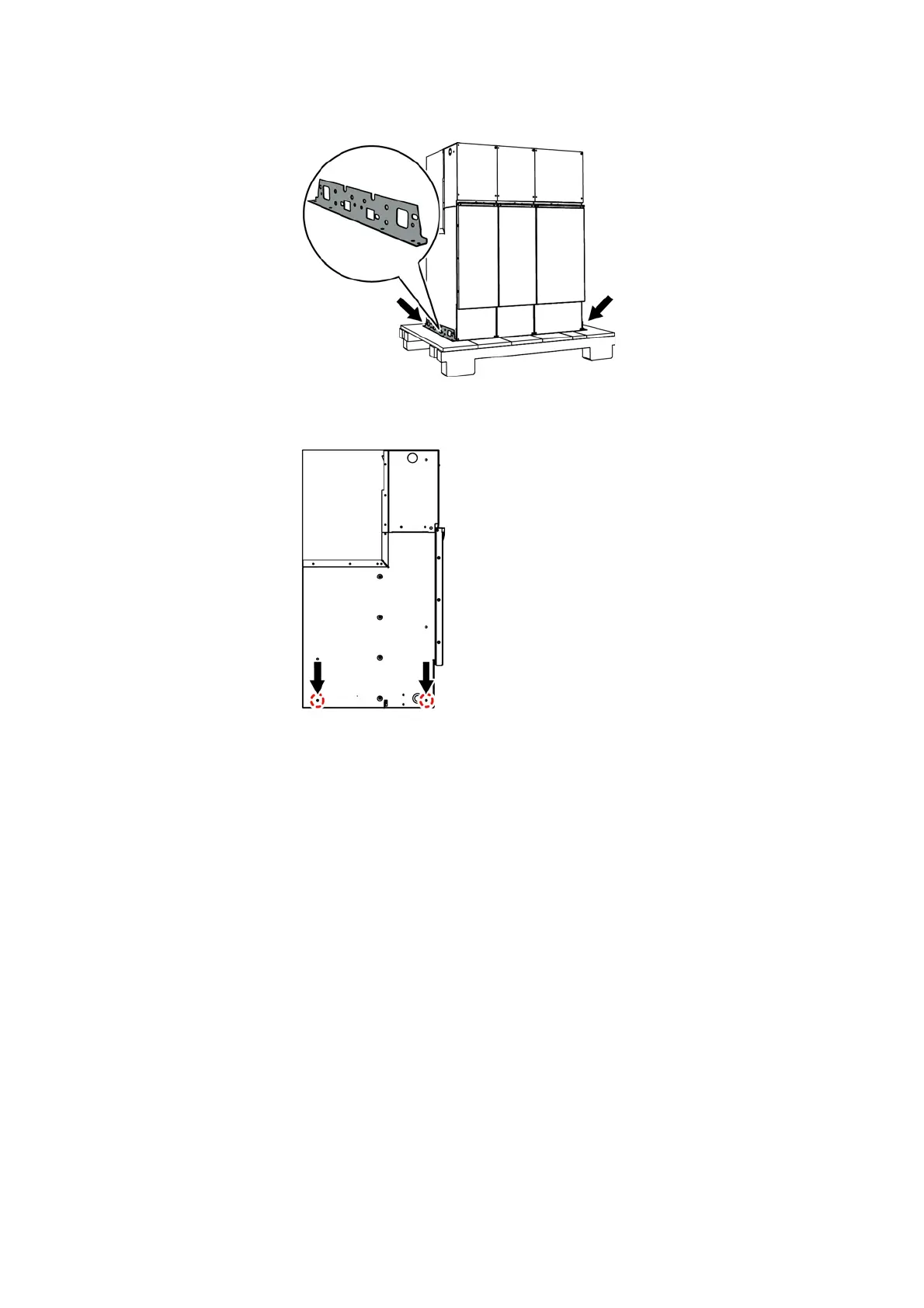

Fig. 27: Transport angle for wooden pallet
➭ Screw the fixing bolts in again on both sides of the transport unit.
Fig. 28: Points for fixing bolts (view from the left)
