Installation
58/121 Revision 05 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DJH • 500-8067.9
➭ If required, remove the cross member, see page 77, "Removing and mounting the cross
member".
➭ The panel must rest flush on the foundation; if necessary, lay shims underneath.
➭ Prepare the foundation for fastening; e.g. mark holes and drill.
➭ Remove pollution such as drilling dust or drilling chips.
➭ Bolt or weld the panel to the foundation.
➭ Protect welded seams against corrosion.
Fixing points The panel frames have cutouts for fastening the panels, see page 59, "Floor openings and
fixing points".
➭ Fasten the panels at the following fixing points using bolts M8 :
- Fasten end panels at least at 4 fixing points; 1 x at the front, 1 x at the rear, and
2 x laterally (see example).
- Fasten intermediate panels at least at 2 fixing points; 1 x at the front and 1 x at the rear
(see example).
- Fasten panels with floor covers at all available fixing points.

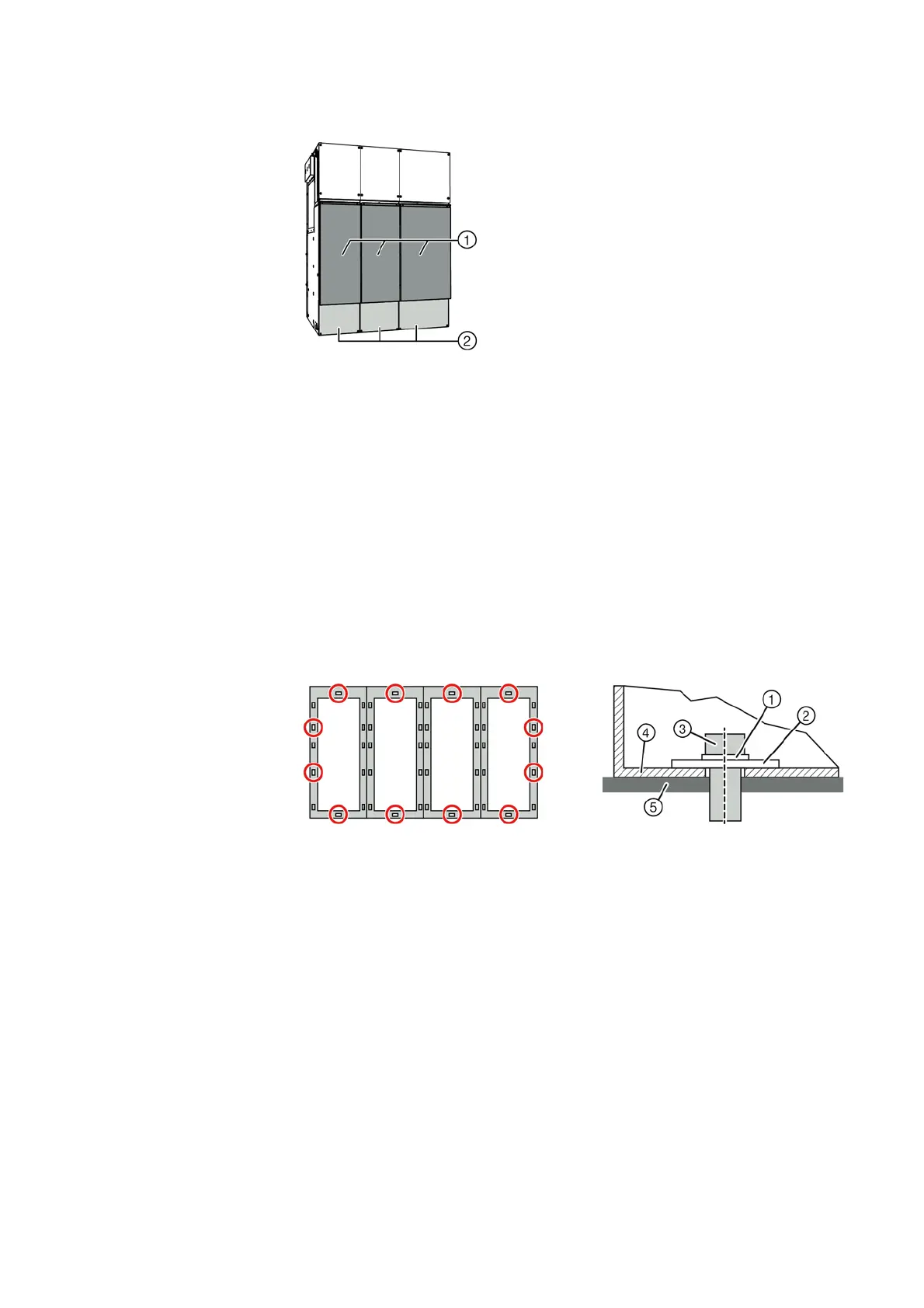

①
Cable compartment cover
②
Cross member
Fig. 31: Fixing points for end panels and
intermediate panels (example)
Fig. 32: Fastening the panel to the
foundation
①
Conical spring washer M8 (DIN 6796)
④
Panel frame
②
3D washer M10 (DIN EN ISO 7093)
⑤
Foundation or foundation rail
③
Bolt M8
