User manual RVS61.843 CE1U2355en_02
HVAC Products 7 Plant diagrams 23. November 2007

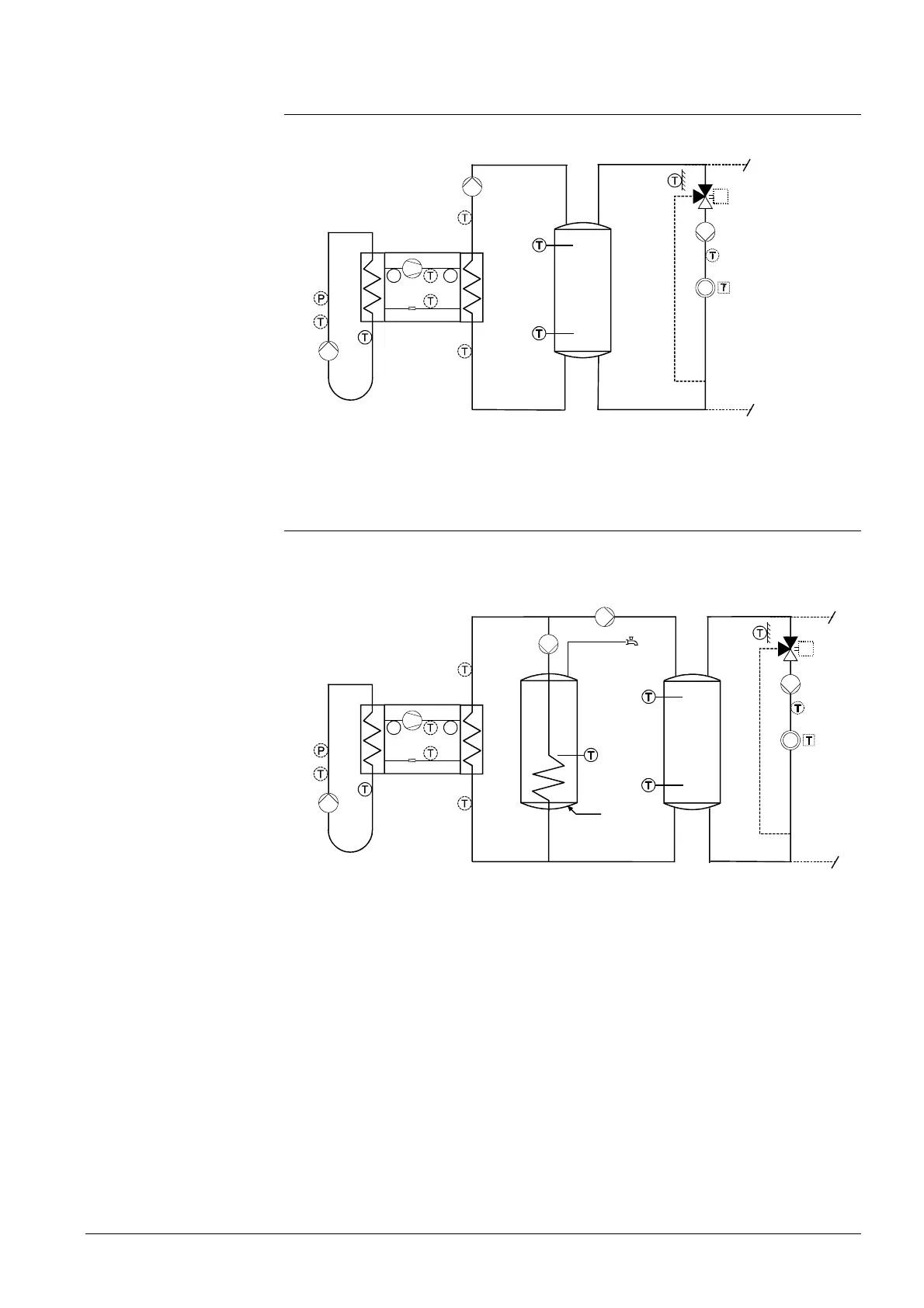

7.1.4 Plant diagram 4
Brine-to-water heat pump with buffer storage tank and mixing or pump heating circuit.
B4
B41
B21
K1/E11
B71
B92
Q8/E14
B91
E15
E9
PP
B81
E10
B83
Q9
2358h12
B9
Y1/Y2
Q2
B1
RG
7.1.5 Plant diagram 5
Brine-to-water heat pump with buffer storage tank, DHW storage tank with charging
pump Q3, and mixing or pump heating circuit.
2358h13
B3
Q3
Q9
B21
K1/E11
B71
B92
Q8/E14
B91
E15
E9
P
P
B81
E10
B83
B4
B41
B9
Y1/Y2
Q2
B1
RG
