Siemens Switzerland Ltd User manual RVS61.843 CE1U2355en_02
HVAC Products 5 Handling 23. November 2007
5.1.2 Programming the QAA75... / QAA78… / AVS37..
Setting principle
Settings that cannot be made directly with the operating elements are made through
programming. For this purpose, the individual settings are structured in the form of
menus and operating lines, thus creating practical groups of settings.
The following example shows how to set the time of day and the date.

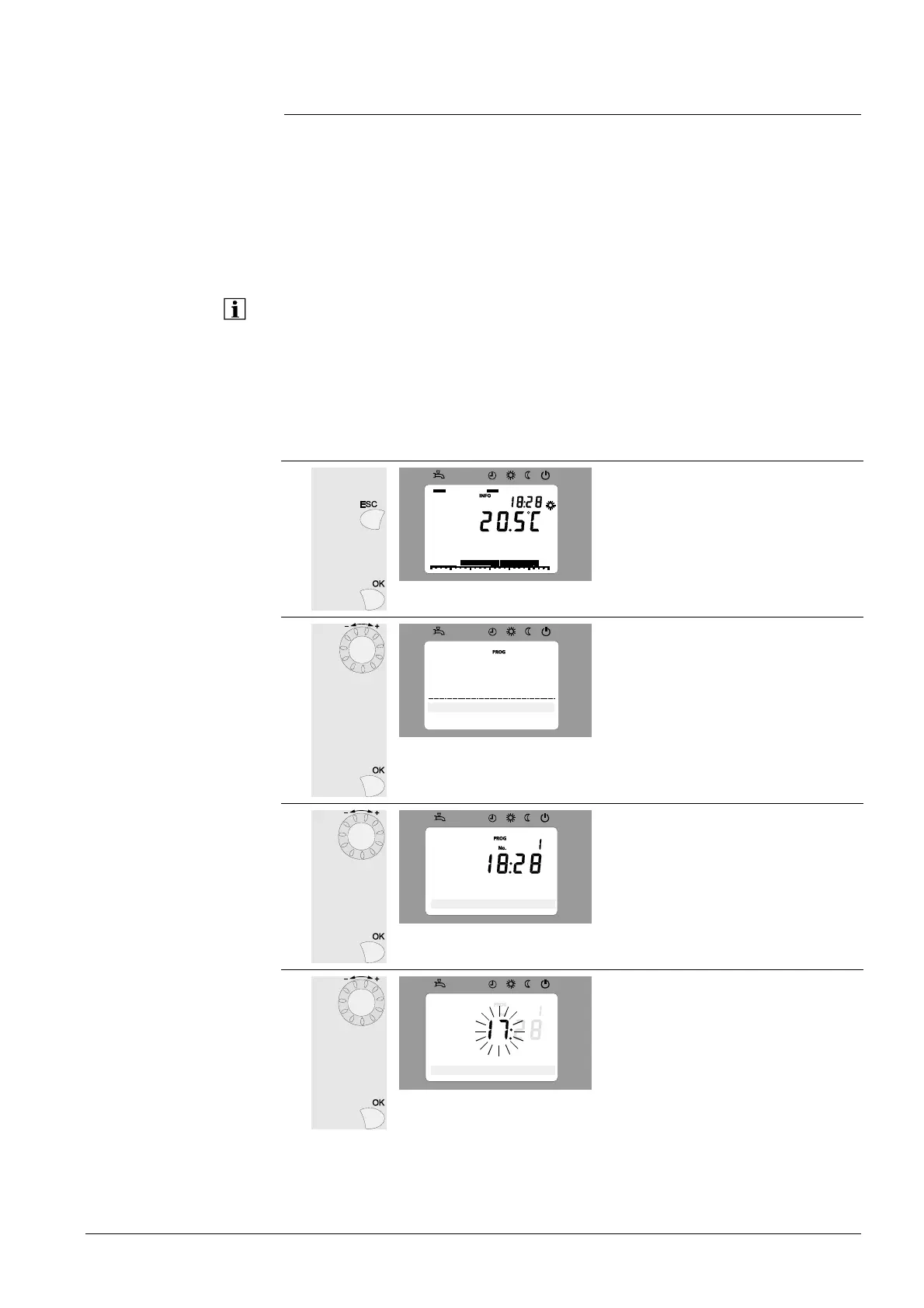

Example “Setting the time of day“
• Press the ESC button to go one step back at a time, readjusted values are not
adopted
• If no setting is made for 8 minutes (2 minutes with RF devices), the unit will
automatically return to the basic display
• Certain operating lines may be hidden at certain times, depending on the type of unit
and the operating level
Operation Display example Description
1
0
4 8 12 16 20 24
AUTO
2359Z140
Room temperature
Basic display.
If the basic display is not shown, press
the ESC button to go back.
Press the OK button.
2
Text3
0
4 8 12 16 20 24
AUTO
2359Z140
Operator section
Time of day and date
The bottom section of the display
shows various menus.
Turn the setting knob until menu Time
of day and date appears.
Press the OK button to confirm.
3
0
4 8 12 16 20 24
AUTO
2359Z140
Time of day and date
Hours / minutes
In the bottom section of the display, the
first operating line of menu Time of day
and date appears.
Turn the setting knob until operating
line Hours / minutes appears.
Press the OK button to confirm.
4
0
4 8 12 16 20 24
AUTO
2359Z140
Time of day and date
Hours / minutes
The display shows the hours blinking.
Turn the setting knob until the hours of
the time of day are correct.
Press the OK button to confirm.
