24/221
Siemens Switzerland Ltd User manual RVS61.843 CE1U2355en_02
HVAC Products 3 Mounting and installation 23. November 2007

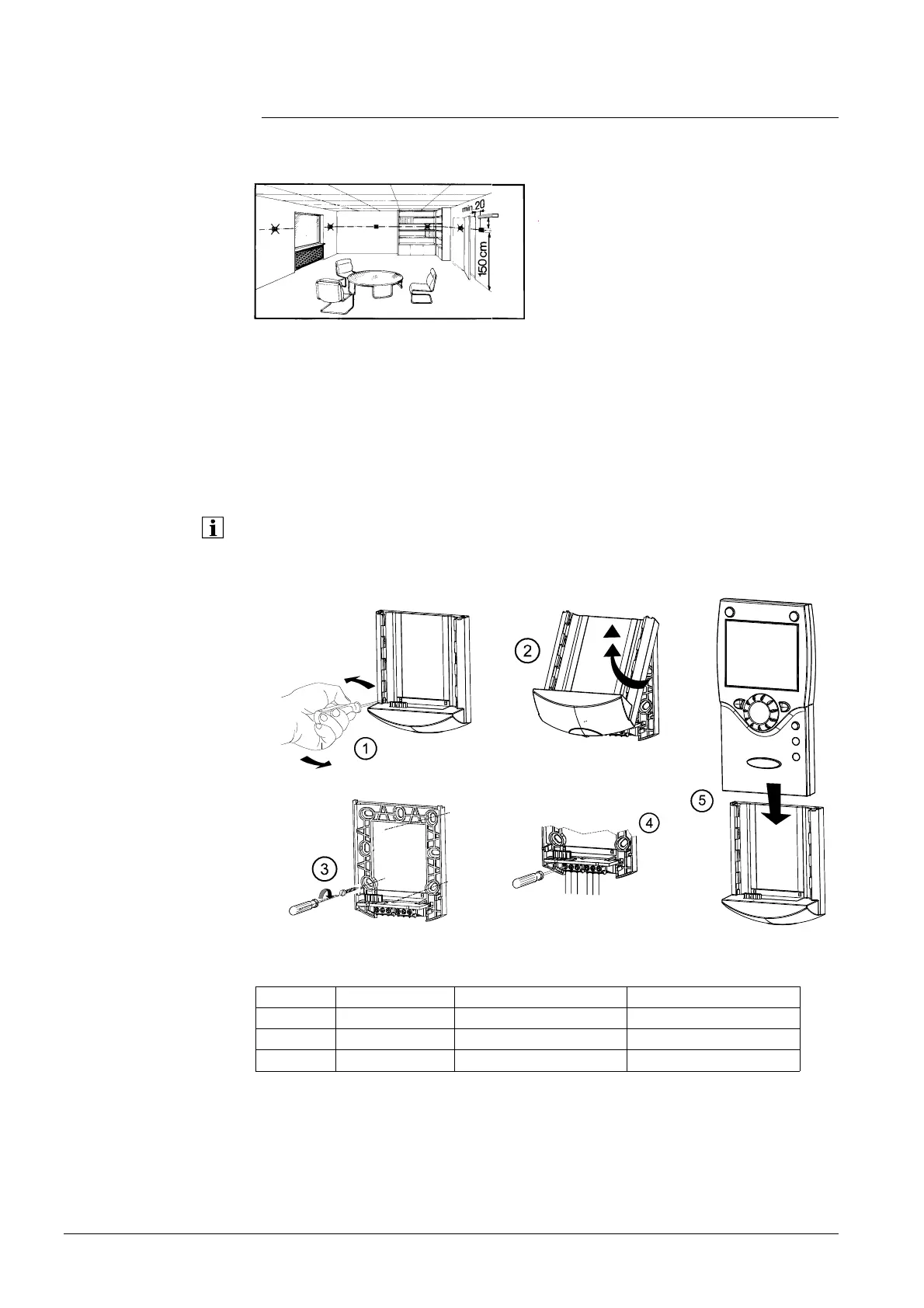

3.7 Room unit QAA75…
Engineering
min.
10 cm
2261Z03
The room unit should be located in the main living room while giving consideration to
the following criteria:
• The place of installation should be chosen so that the sensor can capture the room
temperature as accurately as possible without getting adversely affected by direct
solar radiation or other heat or refrigeration sources (about 1.5 meters above the
floor)
• In the case of wall mounting, there must be sufficient clearance above the unit,
enabling it to be fitted and removed
When the unit is removed from its base, power is disconnected so that the unit is out of
operation.
Terminal Identifier QAA75.610 QAA75.611
1 CL+ BSB data BSB data
2 CL- BSB ground BSB ground
3 G+ Reserved Power supply DC 12 V
Mounting method
Connections
2359Z25
2359Z20
2359Z26
2359Z24
2359Z21
