Room temperature limitation
Line no. Operating line
HC1 HC2 HC3P
760 1060 1360 Room temp limitation

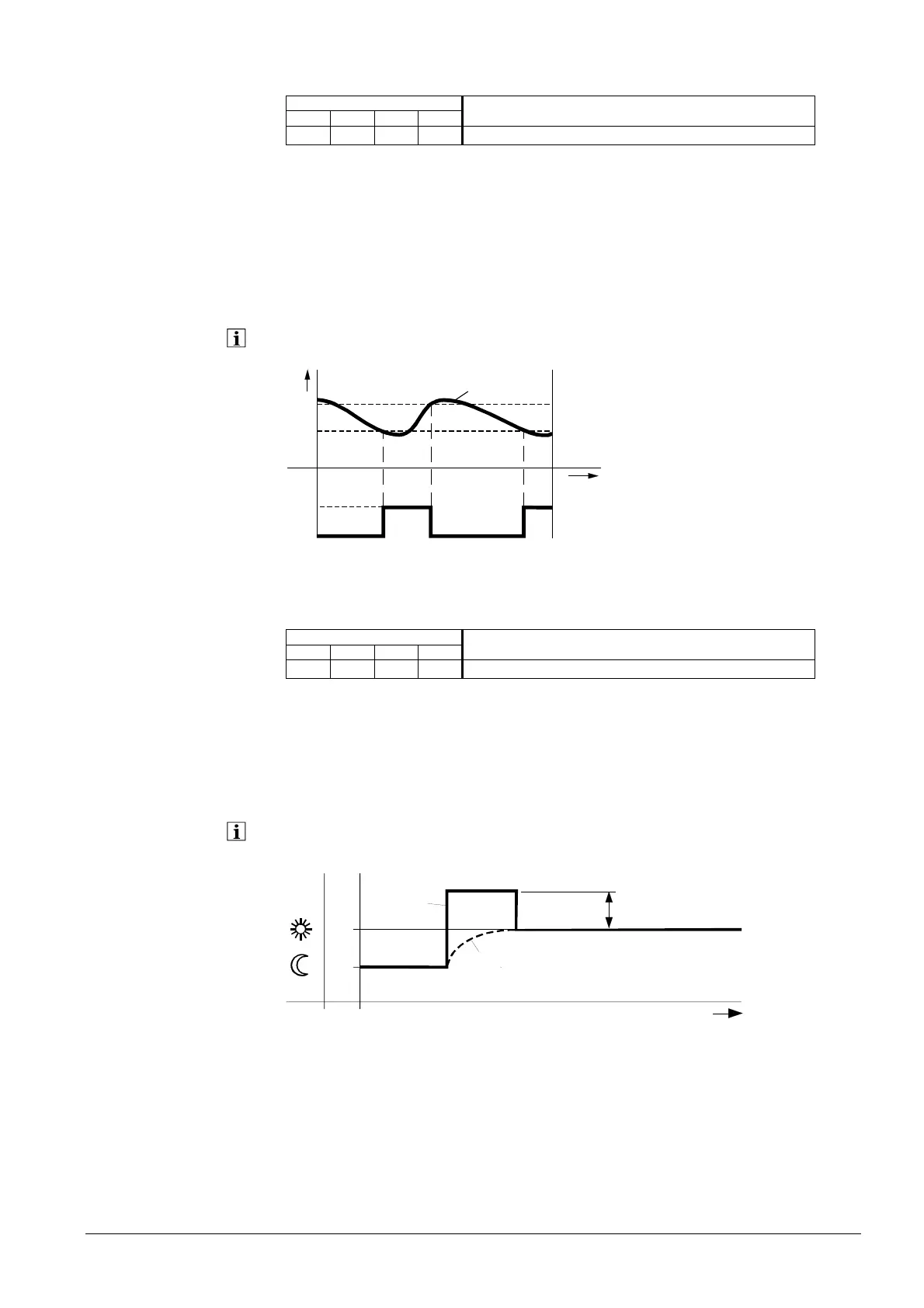

The "Room temperature limitation" function enables the heating circuit pump to be
deactivated should the room temperature exceed the current room temperature
setpoint by more than the adjusted differential.
The heating circuit pump will be activated again as soon as the room temperature
returns to a level below the current room temperature setpoint.
During the time the "Room temperature limitation" function is active, no heat request is
sent to the heat source.
Room temperature limitation does not work in the case of pure weather compensation.
OFF
ON
P
°C
TRx
TRw+SDR
2371D02
TRw
t
TRx Actual value of the room
temperature
TRw Room temperature setpoint
SDR Room’s switching differential
P Pump
t Time
Boost heating
Line no. Operating line
HC1 HC2 HC3P
770 1070 1370 Boost heating
Boost heating is used to reach the new setpoint more quickly when switching from the
Reduced setpoint to the Comfort setpoint, thus shortening the heating up time . During
boost heating, the room temperature setpoint is raised by the value set here.
A higher setting leads to shorter heating up times, a lower setting to longer heating up
times.
• Boost heating is possible with or without room temperature sensor.
TRw Room temperature setpoint
TRx Actual value of the room temperature
DTRSA Increase of the room temperature setpoint
20
15
°C
t
TR
w
TR
x
2371D03
DTRSA
