Floor curing function
Line no. Operating line
HC1 HC2 HCP
850 1150 1450 Floor curing function
Off
Functional heating (Fh)
Curing heating (Bh)
Functional/curing heating
Curing heating/functional heating
Manually
851 1151 1451 Floor curing setp manually
1455 Floor curing setp current
1456 Floor curing day current
1457 Floor curing days completed
The floor curing function ensures controlled drying of the floor. It controls the flow
temperature according to a certain temperature profile. Drying of the floor is ensured by
the floor heating system and the mixing or pump heating circuit.
Off:
Function is deactivated.
Functional heating (Fh) :
The first part of the temperature profile is handled automatically.
Floor curing heating (Bh)
The second part of the temperature profile is handled automatically.
Floor curing heating and functional heating
The entire temperature profile (first and second part) is handled automatically.
Manually
It is not a temperature profile that is handled, but the floor setpoint is controlled
manually. The function is automatically ended after 25 days.
• Observe the relevant standards and regulations of the company making and laying
the floor!
• Proper functioning is ensured only when the plant is correctly installed (hydraulic
system, electrical installation, settings)!
If not observed, the floor might get damaged!
• The function can be aborted by selecting Off
• Maximum limitation of the flow temperature remains active
X Start day
Fh Functional heating
Bh Floor curing heating

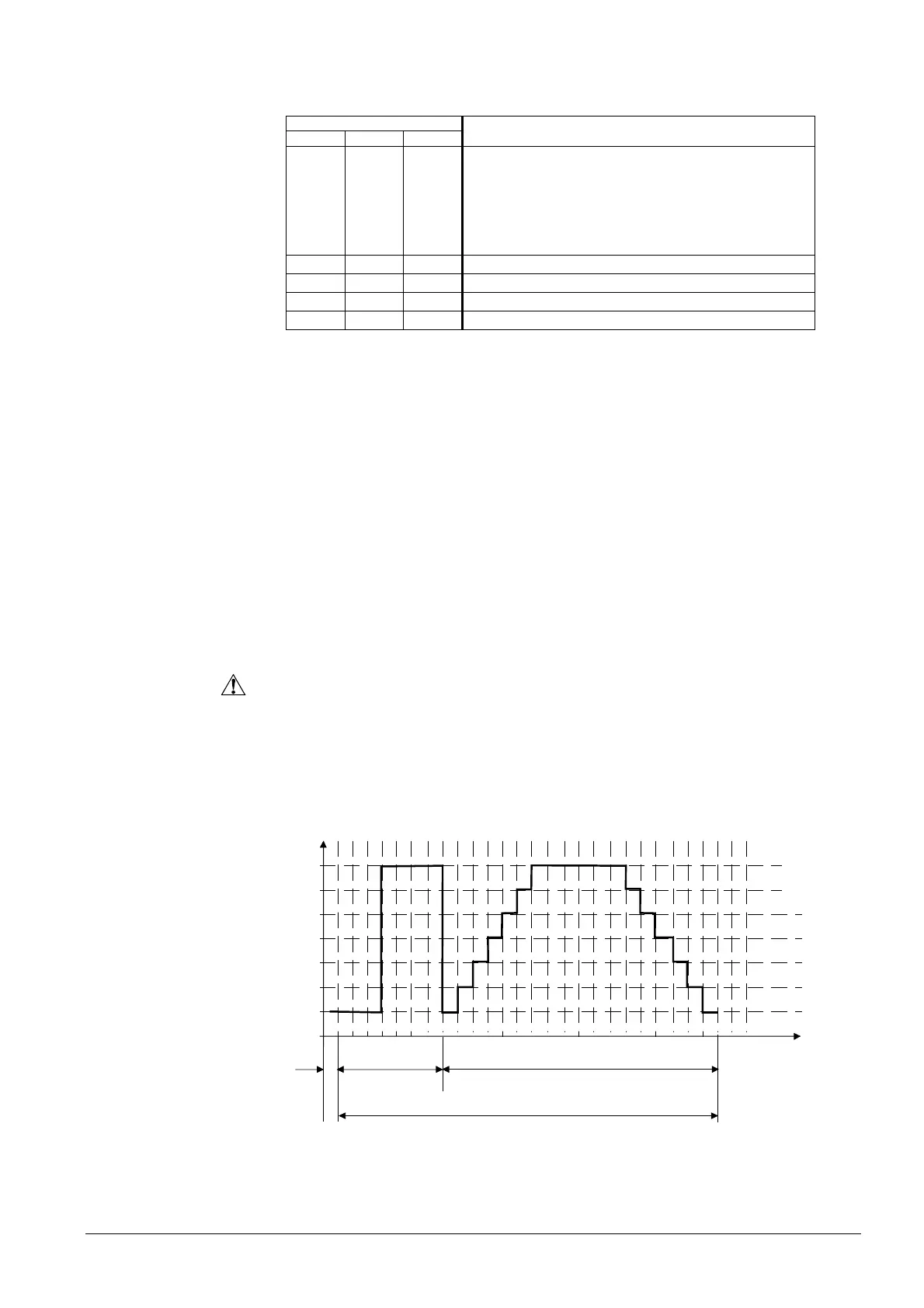

Floor curing function
50
45
40
35
30
20
5101518
[Tag
]
0
25
55
Fh
Bh
11
57
X
Fh + Bh
1 25
2358Z10
[TVw]
