Siemens LMV51.100B2 User Manual

181/301
Siemens Building Technologies Basic Documentation LMV5... CC1P7550en
HVAC Products 10 Description of the connection
terminals (AC 120 V) 13.08.2004

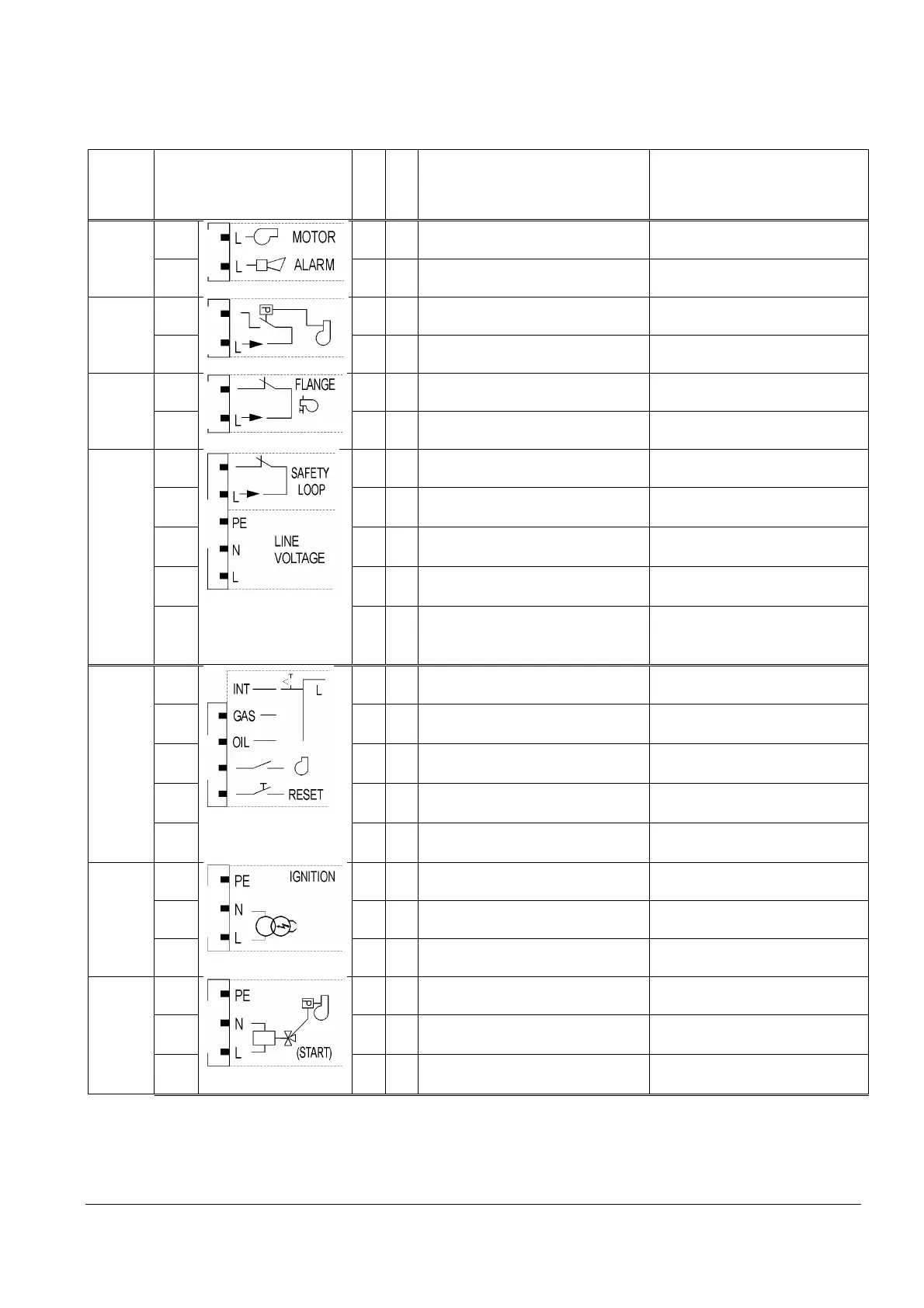

10 Description of the connection
terminals (AC 120 V)
Terminal designa- tion
Connection symbol
Input Output
Description Electrical rating
PIN1 x Fan motor contactor AC 120 V +10 % / -15 %, 50...60 Hz,
1 A, (pilot duty), cos
ϕ 0.4
X3-01
PIN2
x Alarm AC 120 V +10 % / -15 %, 50...60 Hz,
1 A, (pilot duty), cos
ϕ 0.4
PIN1 x Air pressure switch (LP) AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
X3-02
PIN2
x Power signal for air pressure switch
(LP)
AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
PIN1 x End switch burner flange AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
X3-03
PIN2
x Power signal for end switch burner
flange
AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN1 x Safety loop AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN2 x Power signal for safety loop AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN3 x Protective earth (PE)
PIN4 x Neutral conductor (N)
X3-04
PIN5
x Live conductor (L) AC 120 V +10 % / -15 %, 50...60 Hz,
fuse 6.3 AT
(DIN EN 60 127 2 / 5)
Fuel selection “internal” if pin 1-2 is not
used
PIN1 x Fuel selection gas AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN2 x Fuel selection oil AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN3 x Fan contactor contact (FCC) or FGR-
PS
AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
X4-01
PIN4
x Reset / manual lockout AC 120 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
X4-02
PIN3
x Ignition AC 120 V +10 % / -15 %, 50...60 Hz,
1.6 A, (pilot duty), cos
ϕ 0.2
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
X4-03
PIN3
x Start signal or PS relief (APS test valve) AC 120 V +10 % / -15 %, 50...60 Hz,
75 VA, (pilot duty), cos
ϕ 0.4
