Siemens Building Technologies Basic Documentation LMV5... CC1P7550en
HVAC Products 6 Temperature or pressure controller (internal load controller LC) 13.08.2004

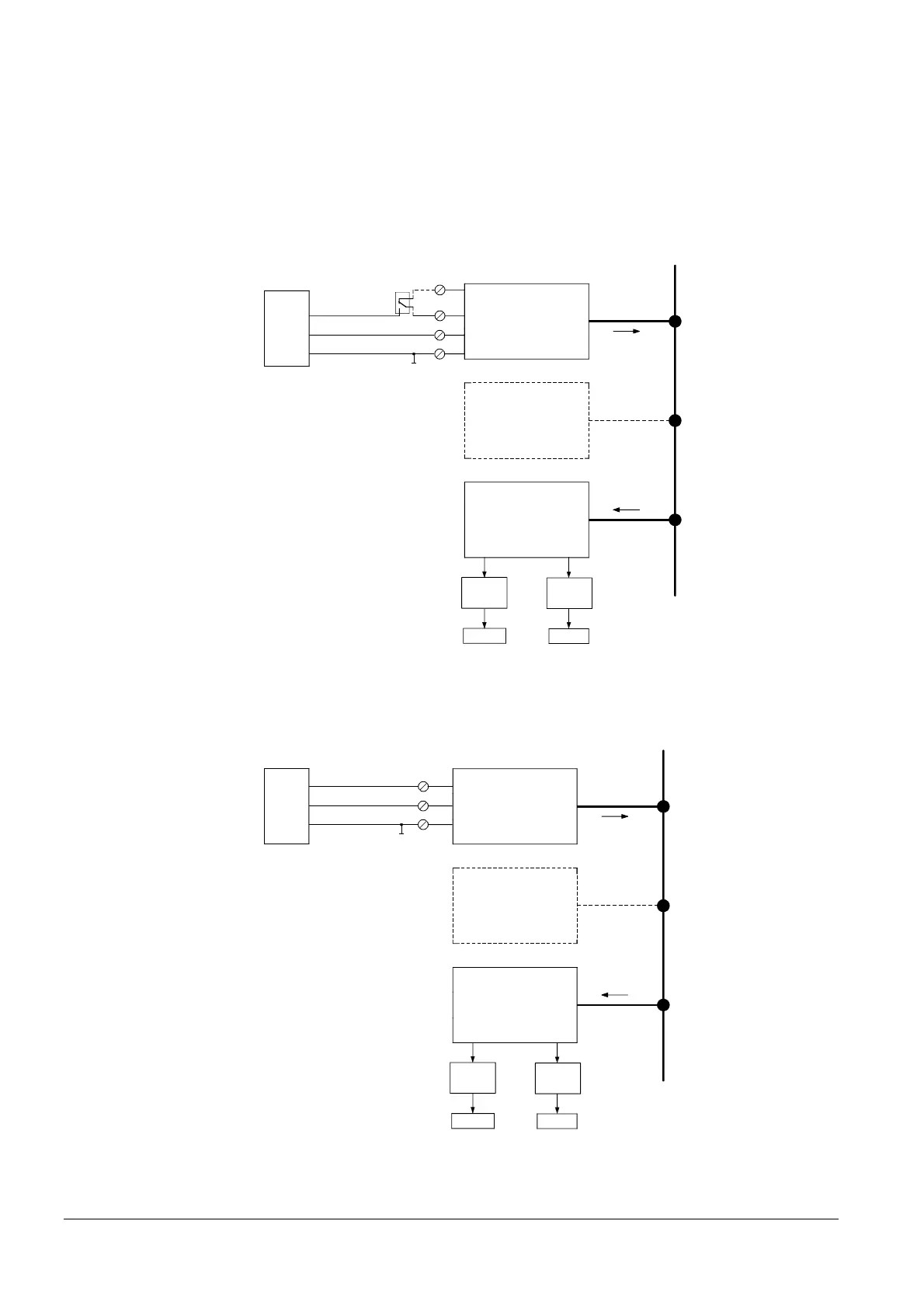

BACS as control via analog input with the internal load controller.
In principle, identical to operating mode 3, except that the BACS delivers the predefined
setpoint via analog input 3 (SET POINT INPUT).
Terminals X62.1 and X62.2 can be used to make a changeover from externally (e.g. in
the event the BACS fails) from the external predefined setpoints to the internal setpoint
W1, using a potential-free contact (LC software version V01.40 or higher).
With a predefined setpoint via DC 0...10 V signal, voltage – in the case of changeover
to the internal setpoint «W1» - must be separated from input X62.2.
AZL5...
CAN module
(basic unit)
FARC (BU)
Demand
for heat
BC (BU)
Manipulated variable,
demand for heat
Manipulated variable,
demand for heat
CAN bus
7550b04e/0704
Internal
load controller
Manipulated
variable
0...100 %
Input 3
(SET POINT INPUT)
X62.1
X62.2
BMS
X62.3
X62.4
Predefined setpoint
0...10 V
or
4...20 mA
The internal load controller is used for translating the analog load signal to the CAN bus
protocol. BACS as control (or external controller) with analog predefined manipulated
variable (load signal) to the controller inside the LMV5... .
AZL5...
CAN module
(basic unit)
FARC (BU)
Demand
for heat
BC (BU)
Manipulated variable,
demand for heat
Manipulated variable,
demand for heat
CAN bus
7550b05E/0202
Internal
load controller
Manipulated
variable
0...100 %
Input 3
(SET POINT INPUT)
BMS
X62.3
X62.4
X62.2
Predefined setpoint
2...10 V
or
4...20 mA
Operating mode 4
(int LC X62)
Operating mode 5
(Ext LC X62)
