Siemens LMV51.100B2 User Manual

186/301
Siemens Building Technologies Basic Documentation LMV5... CC1P7550en
HVAC Products 11 Description of the connection terminals (AC 230 V) 13.08.2004

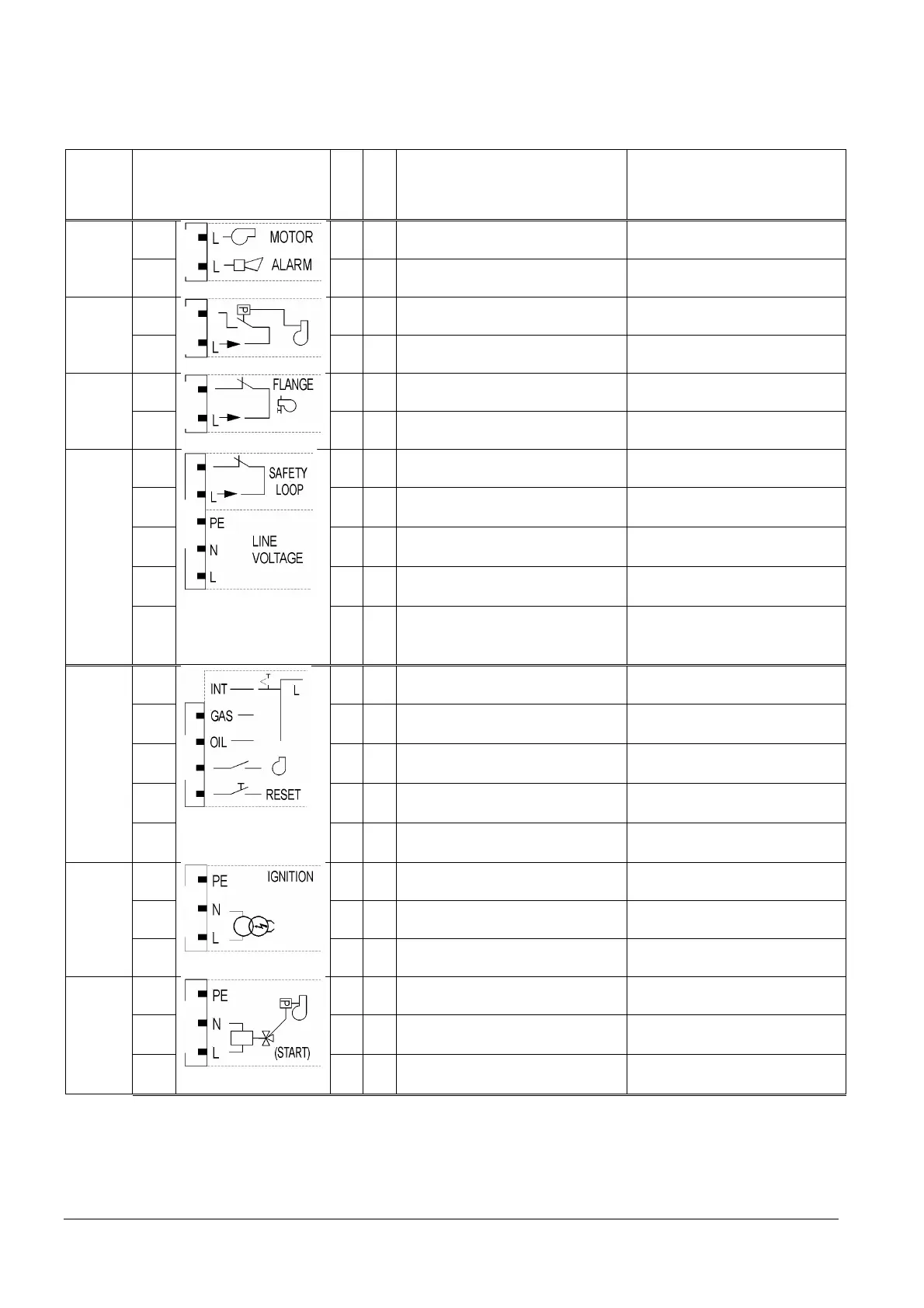

11 Description of the connection
terminals (AC 230 V)
Terminal designa- tion
Connection symbol
Input Output
Description Electrical rating
PIN1 x Fan motor contactor AC 230 V +10 % / -15 %, 50...60 Hz,
1 A, cos
ϕ 0.4
X3-01
PIN2
x Alarm AC 230 V +10 % / -15 %, 50...60 Hz,
1 A, cos
ϕ 0.4
PIN1 x Air pressure switch (LP) AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
X3-02
PIN2
x Power signal for air pressure switch
(LP)
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 500 mA
PIN1 x End switch burner flange AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
X3-03
PIN2
x Power signal for end switch burner
flange
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN1 x Safety loop AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN2 x Power signal for safety loop AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 5 A
PIN3 x Protective earth (PE)
PIN4 x Neutral conductor (N)
X3-04
PIN5
x Live conductor (L) AC 230 V +10 % / -15 %, 50...60 Hz,
fuse 6.3 AT
(DIN EN 60 127 2 / 5)
Fuel selection “internal” if pin 1-2 is not
used
PIN1 x Fuel selection gas AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN2 x Fuel selection oil AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN3 x Fan contactor contact (FCC) or FGR-
PS
AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
X4-01
PIN4
x Reset / manual lockout AC 230 V +10 % / -15 %, 50...60 Hz,
Imax 1.5 mA
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
X4-02
PIN3
x Ignition AC 230 V +10 % / -15 %, 50...60 Hz,
2 A, cos
ϕ 0.2
PIN1 x Protective earth (PE)
PIN2 x Neutral conductor (N)
X4-03
PIN3
x Start signal or PS relief (APS test valve) AC 230 V +10 % / -15 %, 50...60 Hz,
0.5 A, cos
ϕ 0.4
