8.5 Interface description
Basic Panels
142 Operating Instructions, 04/2012, A5E02421799-03

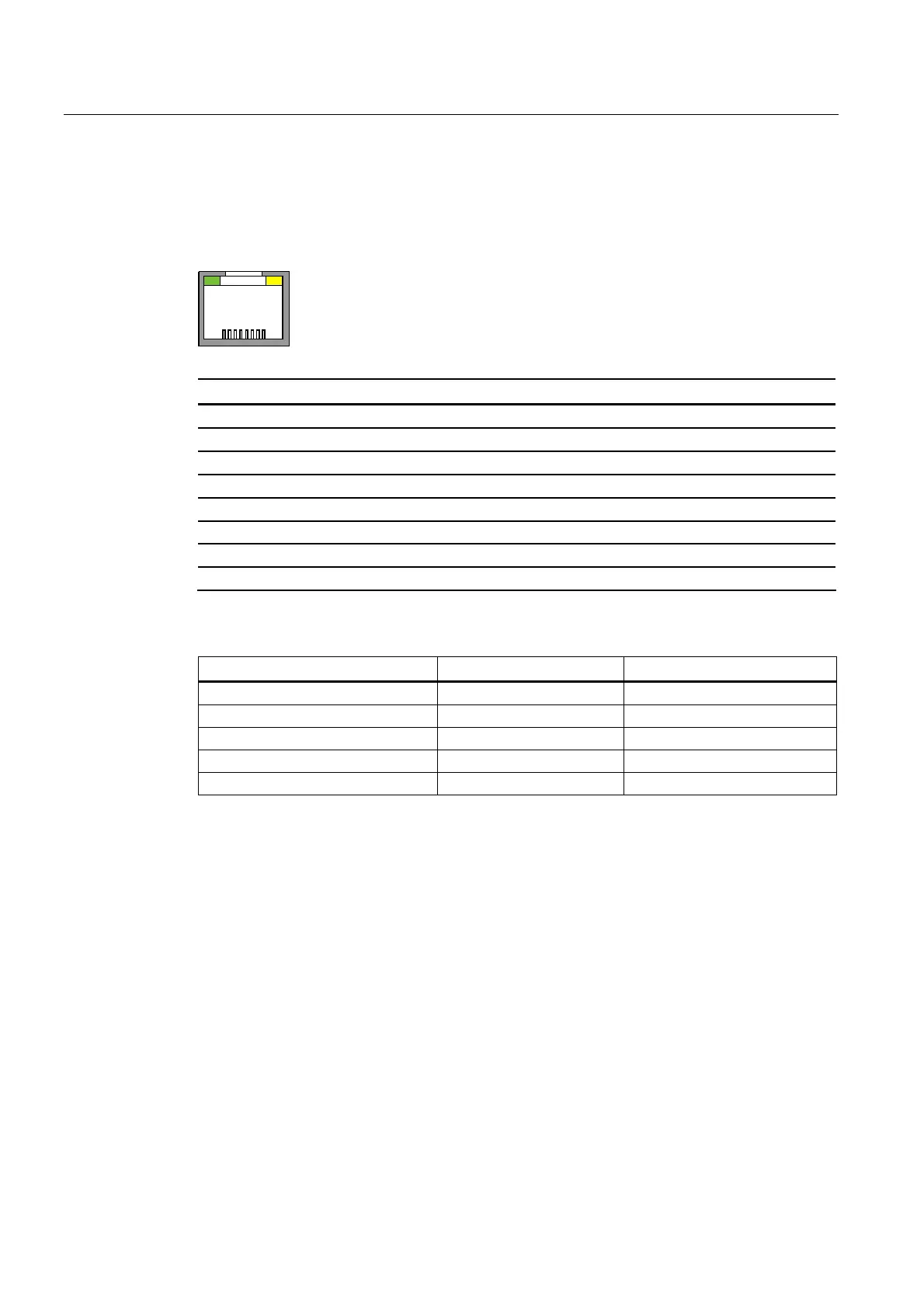

8.5.3 PROFINET (Ethernet)
Name of interface on HMI device: X1
RJ45 plug connector
 
Pin Assignment
1 Tx+
2 Tx–
3 Rx+
4 n. c.
5 n. c.
6 Rx–
7 n. c.
8 n. c.
Meaning of LEDs
State Green "SPEED" LED Yellow "LINK" LED
No connection On
1
Off
10 MB connection Off On
100 MB connection On On
Active data transfer 10 MB Off Flashing
Active data transfer 100 MB On Flashing
1
For KTP1000 Basic and TP1500 Basic: Off
