Operating the device
4.1 Operating touch devices
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
57
4.1.4 Entering data on the KTP600 Basic, KTP1000 Basic , TP1500 Basic
Alphanumerical screen keyboard

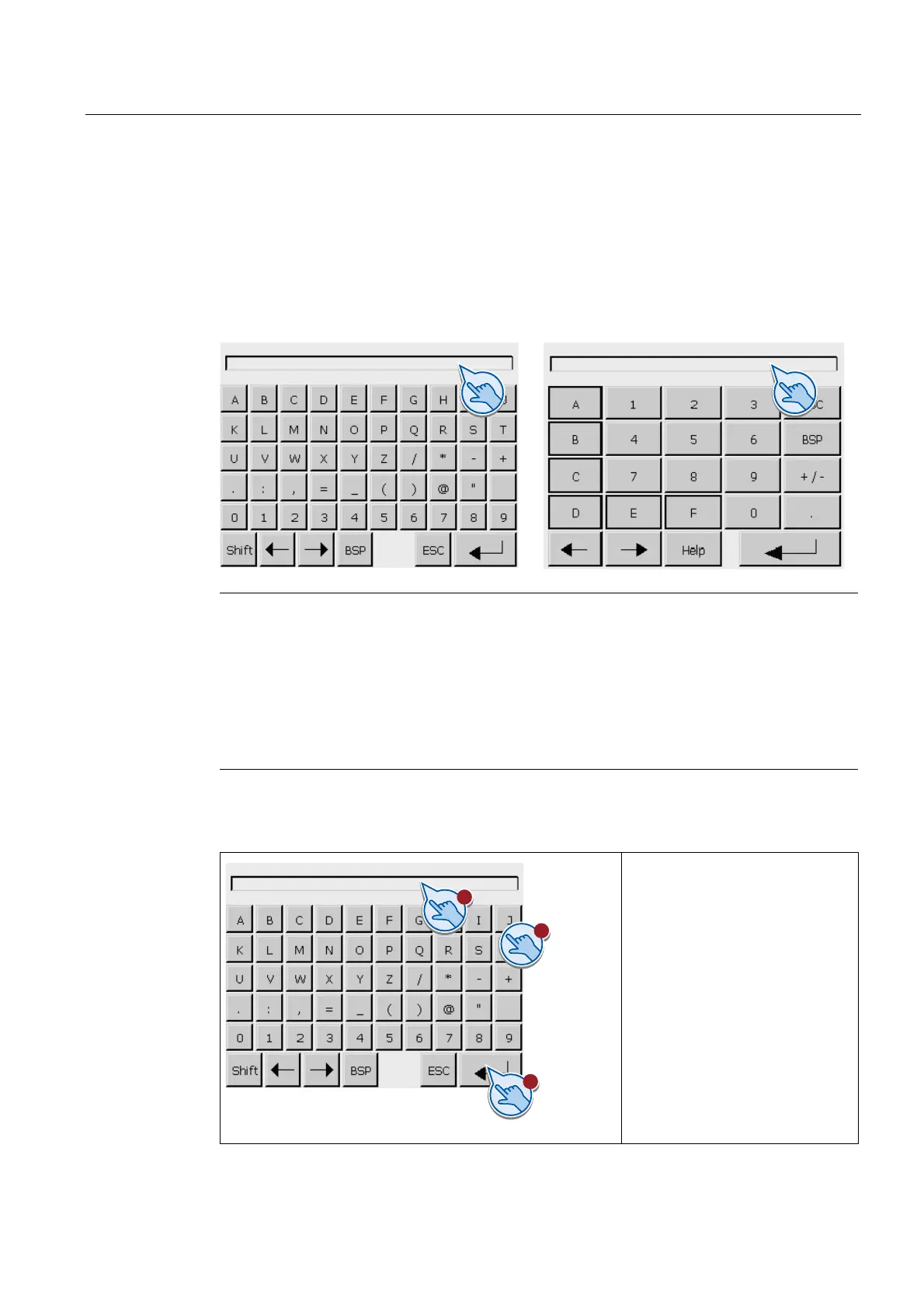

The screen keyboard appears on the HMI device touch screen when you touch an operating
element that requires input.
681 ))))
7H[W 1XPEHUV
Note
Job mailbox has no effect
PLC job 51 "Select screen" has no effect while the screen keyboard is open.
Key assignment
The alphanumerical screen keyboard layout is monolingual.
A language change within the project has no effect on the layout of the alphanumerical
screen keyboard.
Entering alphanumerical values
1. Touch the desired operating
element on the screen.
The alphanumerical screen
keyboard opens.
2. Enter the value. Depending on
the settings, the HMI device
outputs an audible signal.
Use the <Shift> key to enter
lower-case letters.
3. Press <Return> key to confirm
your entries, or cancel them with
<ESC>.
Either action closes the screen
keyboard.
