Configuring the HMI device
5.1 Configuring devices with graphical Control Panel
Basic Panels
74 Operating Instructions, 04/2012, A5E02421799-03

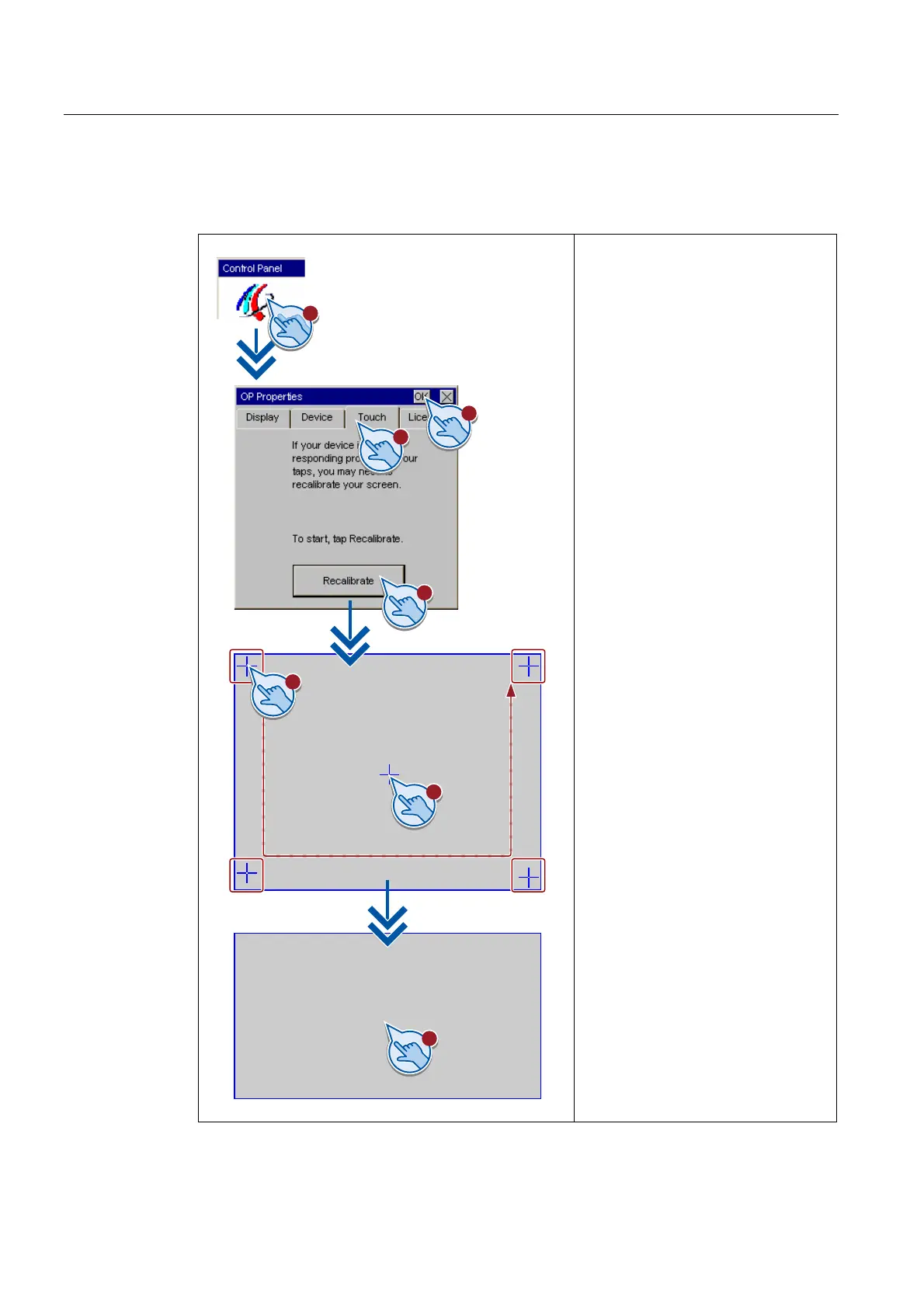

5.1.8 Calibrating the touch screen
This function is only available for touch screen devices.
&DUHIXOO\SUHVVDQGEULHIO\KROGVW\OXVRQWKHFHQWHURI
WKHWDUJHW5HSHDWDVWKHWDUJHWPRYHVDURXQGWKHVFUHHQ
New calibration settings have been measured.
Tap the screen to register saved data.
Wait for 30 seconds to cancel saved data and
keep the current setting.
Time limit: 30 sec
1. Press "OP" to open the
"OP Properties" dialog.
2. Change to the "Touch" tab.
3. Press "Recalibrate" to open the
calibration screen.
4. Touch the cross in the screen center
using the touch pen or your finger.
5. Using the touch pen or your finger,
touch the floating cross in the
corners of the screen.
6. Touch the cross in the screen center
once again using the touch pen or
your finger to confirm your entries.
7. Close the dialog and save your
entries with "OK".
