Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC277G
Operating Instructions, 08/2021, A5E50059956-AA
23

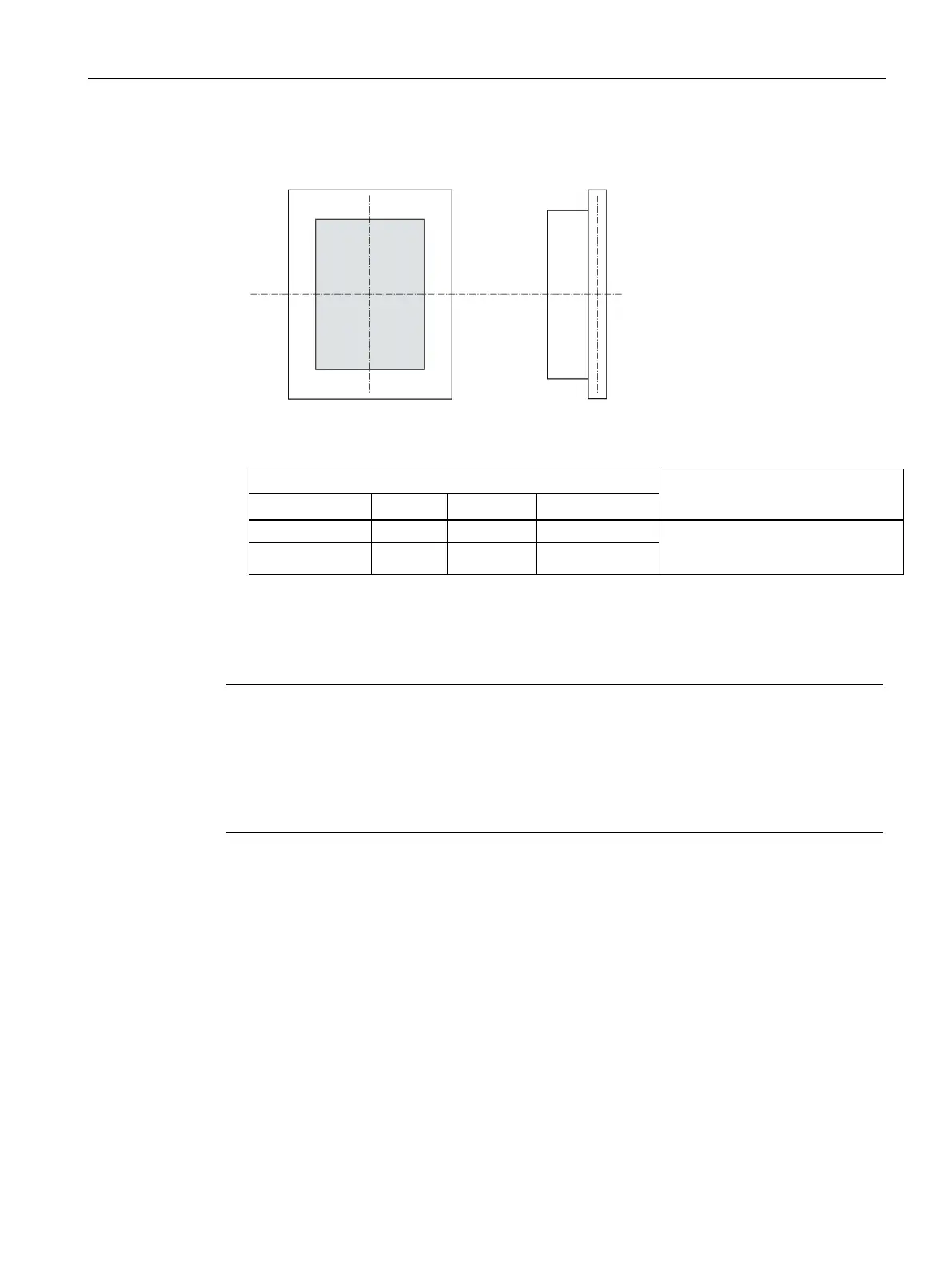

• Vertical installation in upright format, display turned through ±90 ° compared with the
standard position
For vertical installation in upright format, the following ambient temperatures are
permitted:
Maximum ambient temperature at the device
Comment
The device must be installed in a fire
protection enclosure (see "General
safety instructions (Page 15)").
M.2 Module - 5W 45 °C 45 °C 40 °C
3.1.4 Preparing the mounting cutout
Stability of the mounting cutout
The material in the area of the mounting cutout must provide sufficient strength to
guarantee the enduring and sa
fe mounting of the device.
To achieve the degrees of protection described below, it must be ensured that deformation of
the material cannot occur due to the force of the mounting clips or operation of the device.
Degrees of protection
The degrees of protection of the device can only be guaranteed if the following requirements
are met:
• In order to achieve IP65 protection degree or NEMA type4X/type12, the material thickness
for the mounting cutout should be: 2 mm to 6 mm
• Permissible deviation from plane at the mounting cutout: ≤ 0.5 mm
This condition must be fulfilled for the mounted device.
• Permissible surface roughness in the area of the seal: ≤ 120 µm (R
z 120)
