Siemens SIMATIC IPC277G User Manual

Technical specifications
8.5 Hardware descriptions
SIMATIC IPC277G
Operating Instructions, 08/2021, A5E50059956-AA
93
Ethernet RJ45 interface
LED 1
Orange light:1000 Mbps
Off: else
–
LED 2 Orange light: Link
Orange Blink: Activity
Off: No Link
–
The Ethernet interface supports MDXI (auto crossover) for all transmission rates.

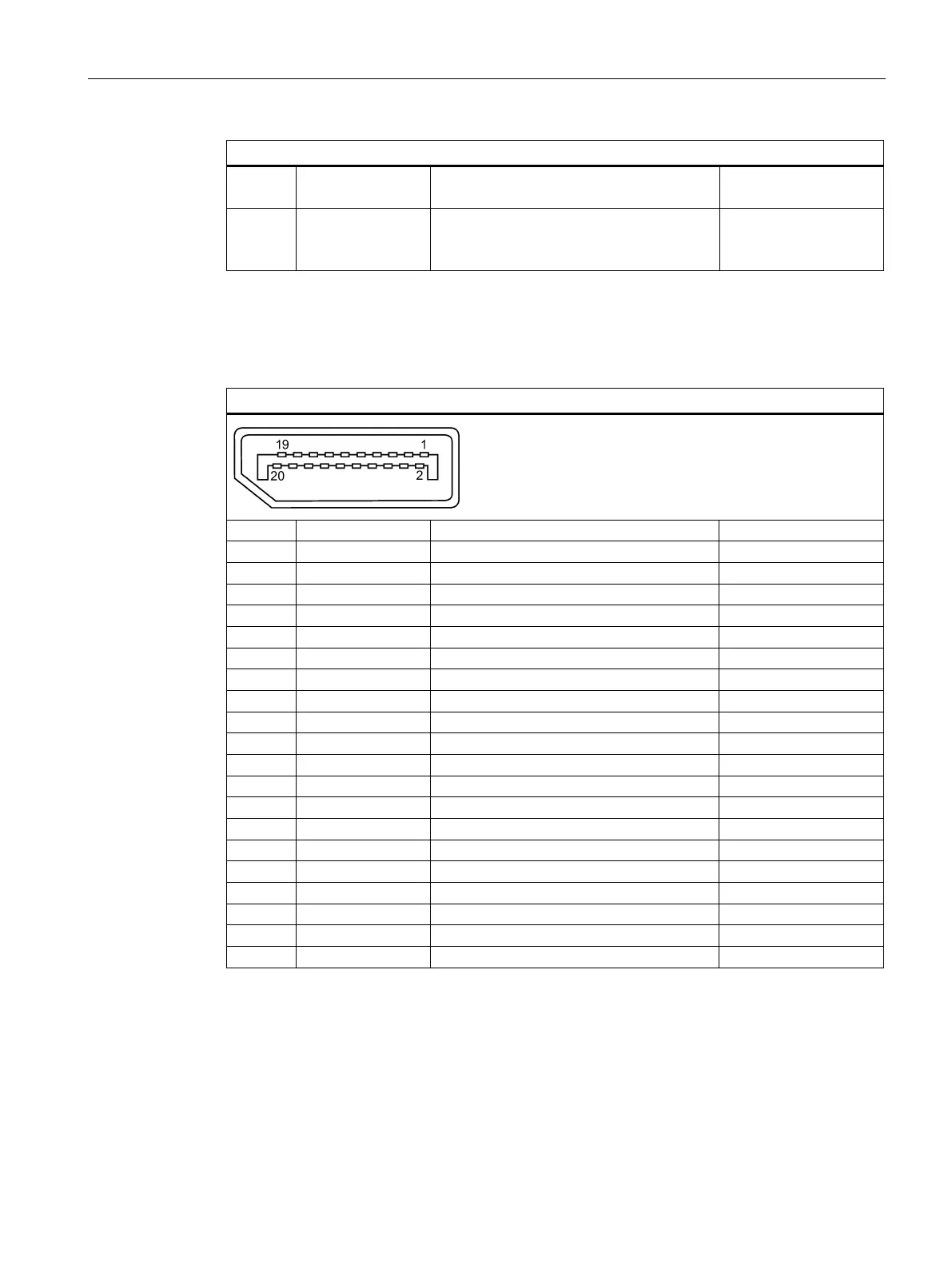

8.5.2.5 DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane 0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane 0-
DP data 0-
Output
4
ML_Lane 1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane 1-
DP data 1-
Output
7
ML_Lane 2+
DP data 2+
Output
8
GND
Ground
-
9
ML_Lane 2-
DP data 2-
Output
10
ML_Lane 3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane 3-
DP data 3-
Output
13
CONFIG1
CONFIG1
-
14
CONFIG2
CONFIG2
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3 V (Power switch)
power out
