8.5 Hardware description
SIMATIC IPC547E
124 Operating Instructions, 02/2014, A5E32317120-AB
8.5.3

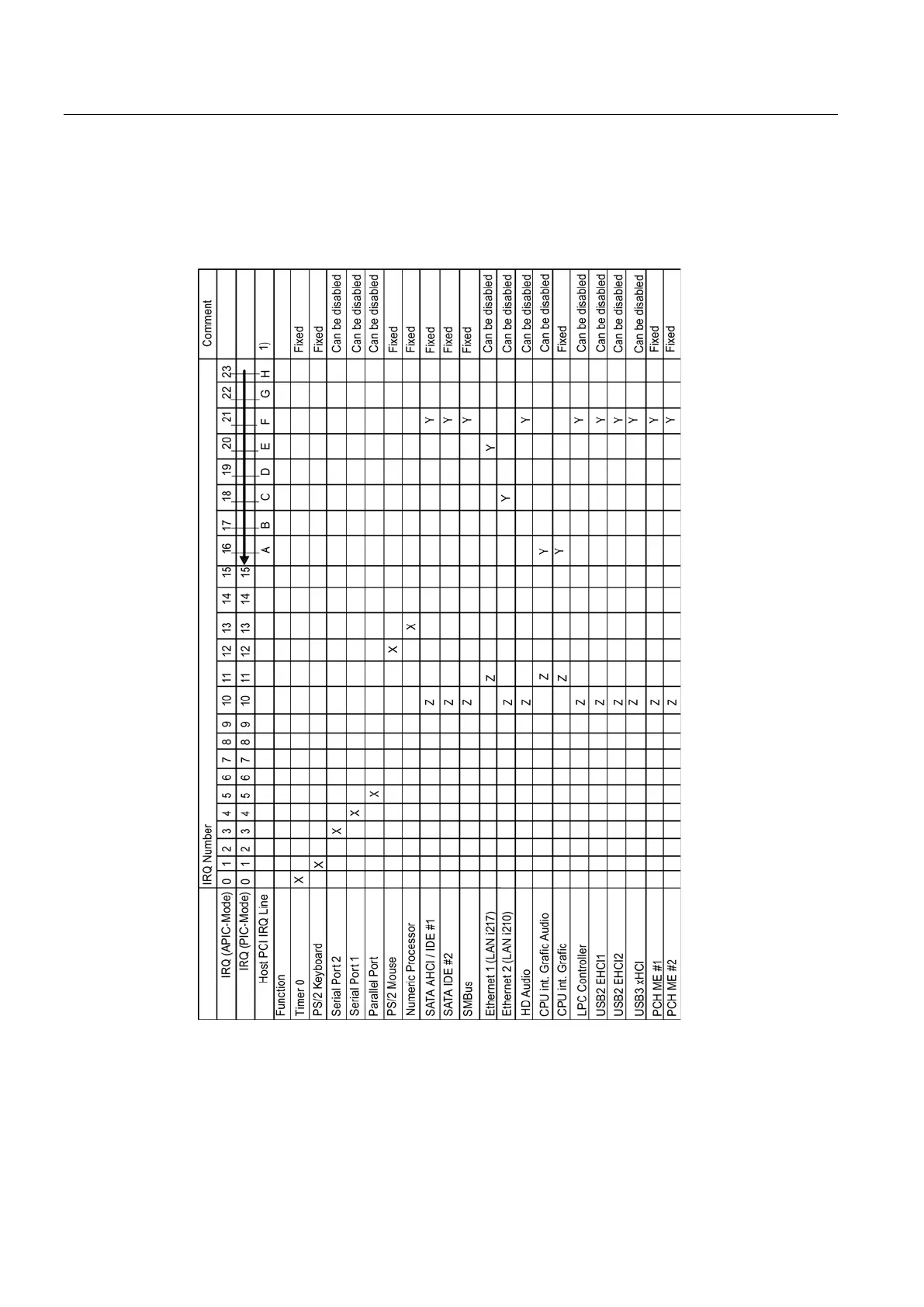

Interrupt assignment
Interrupt assignment depending on operating system
The functions are assigned different interrupts (IRQ), depending on the operating system. A
distinction is made between the PIC and APIC modes.
1) Host PCI-IRQ A to H is assigned to IRQ 16 to 23 permanently in APIC mode. Host PCI-IRQ A to
H is assigned to IRQ 0 to 15 automatically by the BIOS in PIC mode. A specific assignment
cannot be forced.
X
Interrupt PIC and APIC mode
Y
Interrupt APIC mode
Z
BIOS Default Interrupt PIC mode, e.g. DOS
