Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
79
Removing and installing the hard disk drive from the removable drive bay
Requirement
● The device is fully disconnected from the mains voltage, see section "Switching off the
device (Page 53)".
● The front door is open, see section "Opening the front door (Page 61)".
● T10 screwdriver

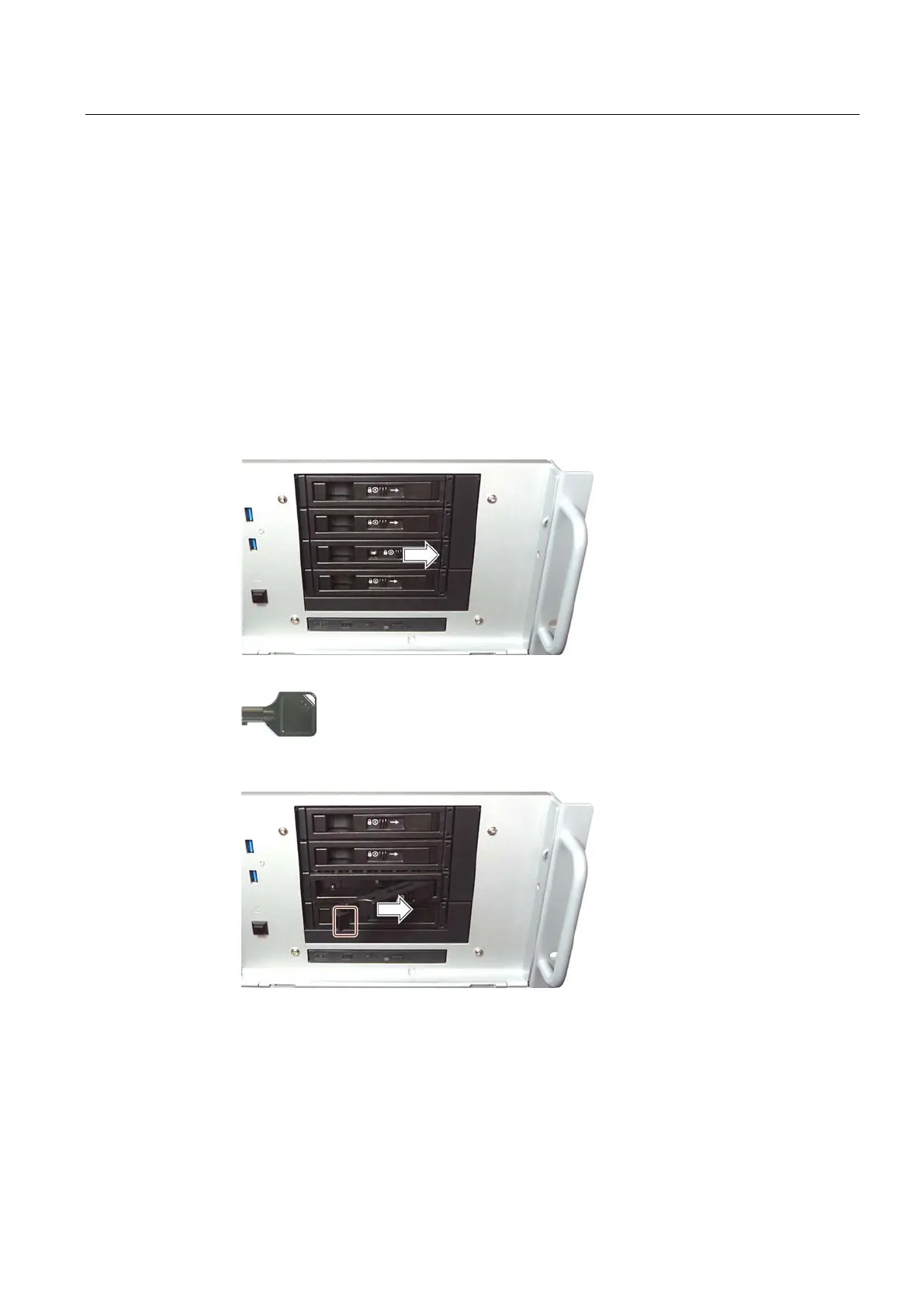

1. Slide the cover of the locking mechanism of the removable drive bay in the direction of
the arrow.
2. Unlock the tray on the removable drive bay with the key provided.
3. Open the handle on the removable drive bay and open it at the highlighted spot in
direction of the arrow until you feel a slight resistance.
4. Now grip the handle to the right of the notch from where it was pulled out, and pull the
tray all the way out of the removable drive bay.
