Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
81
3. Carefully insert the tray back into the removable drive bay on the drive cage.
4. Fold the handle out of the tray as far as it will go and slide the tray fully into the removable
drive bay with unfolded handle.
Make sure that the tray is completely inserted into the removable drive bay.
5. Close the handle and lock the tray.
Note
The tray must always be locked in the removable drive bay to ensure reliable operation of
the devices with removable drive bays.
Removing and installing an internal hard disk
Requirement
● The device is fully disconnected from the mains voltage, see chapter "Switching off the
device (Page 53)".
● The device is open, see the chapter "Open the device (Page 62)".
● T10 screwdriver

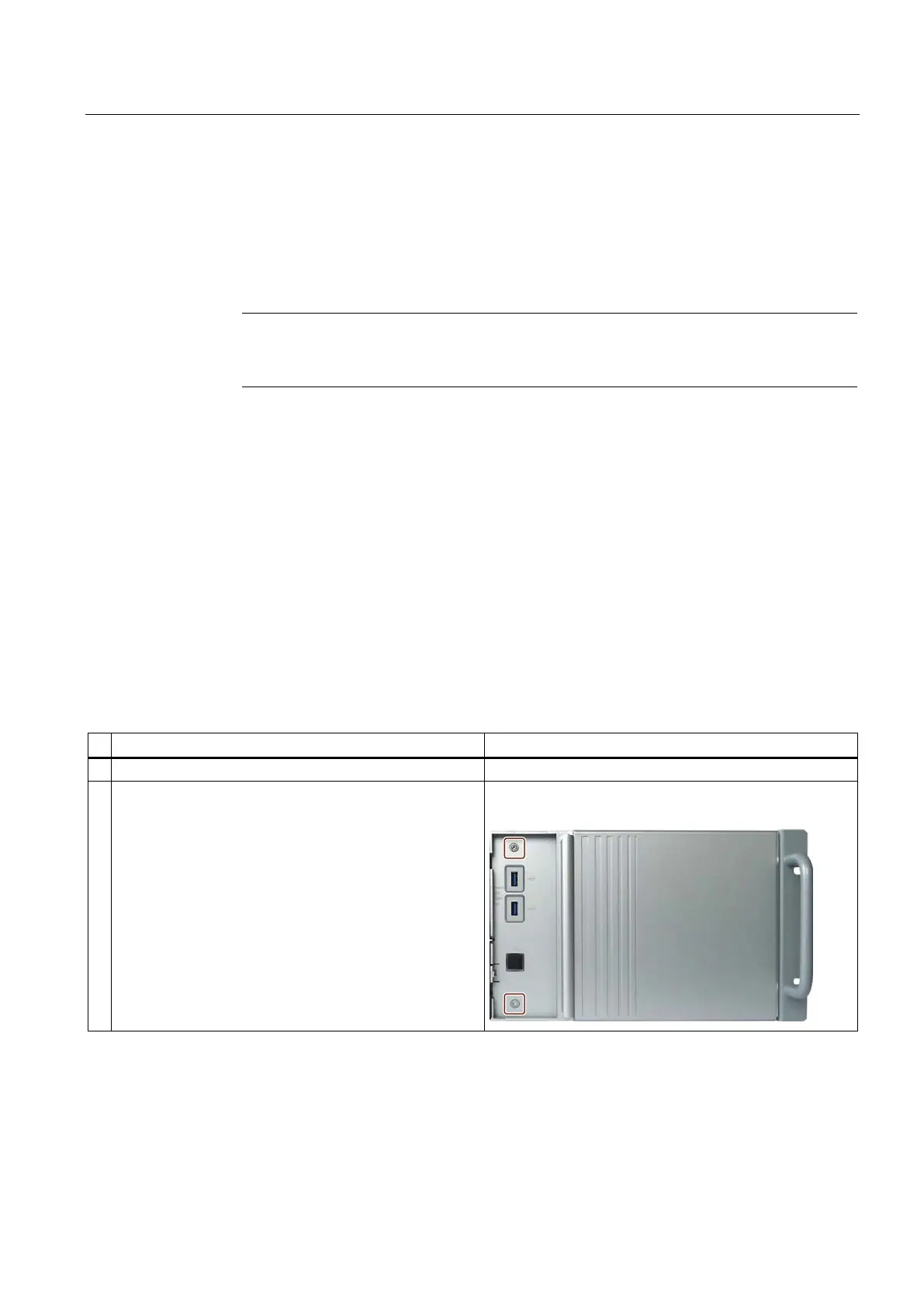

SIMATIC IPC547E with short enclosure
2. - Loosen the two highlighted screws and remove the front
panel.
