Siemens SIMATIC IPC547E User Manual

Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
88 Operating Instructions, 02/2014, A5E32317120-AB

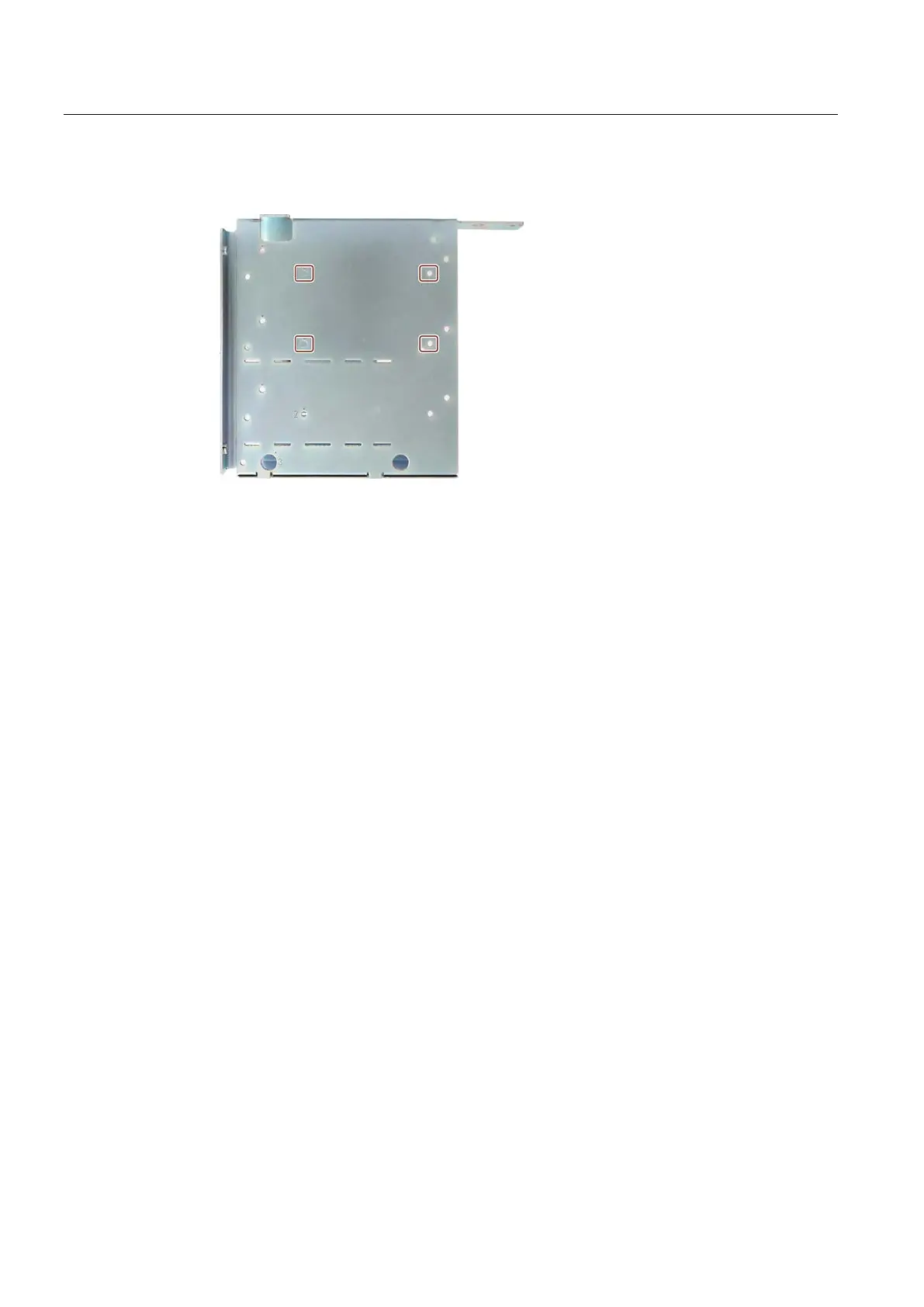

The figure below shows the possible positions of the screws on the right side of the drive
cage.
4. Install the drive cage back into the device, see section "Removing and installing the drive
cage (Page 77)".
7.4.1.6
Removing and installing a DVD drive
Requirement
● The device is fully disconnected from the mains voltage, see section "Switching off the
device (Page 53)".
● The drive cage is removed, see section "Removing and installing the drive cage
(Page 77)".
● T6 screwdriver
Procedure
Removal
1. Remove the screws on the side of the drive cage.
The figure below shows the positions of the screws on the left side of the drive cage.
