Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
92 Operating Instructions, 02/2014, A5E32317120-AB
Removing the power supply
Requirement
● The device is fully disconnected from the mains voltage, see chapter "Switching off the
device (Page 53)".
● The device is open, see the section "Open the device (Page 62)".
● T10 screwdriver
● Diagonal cutter
1. Disconnect the cables from the drives and the motherboard.
2. Remove the cable ties securing the power cables in the enclosure.

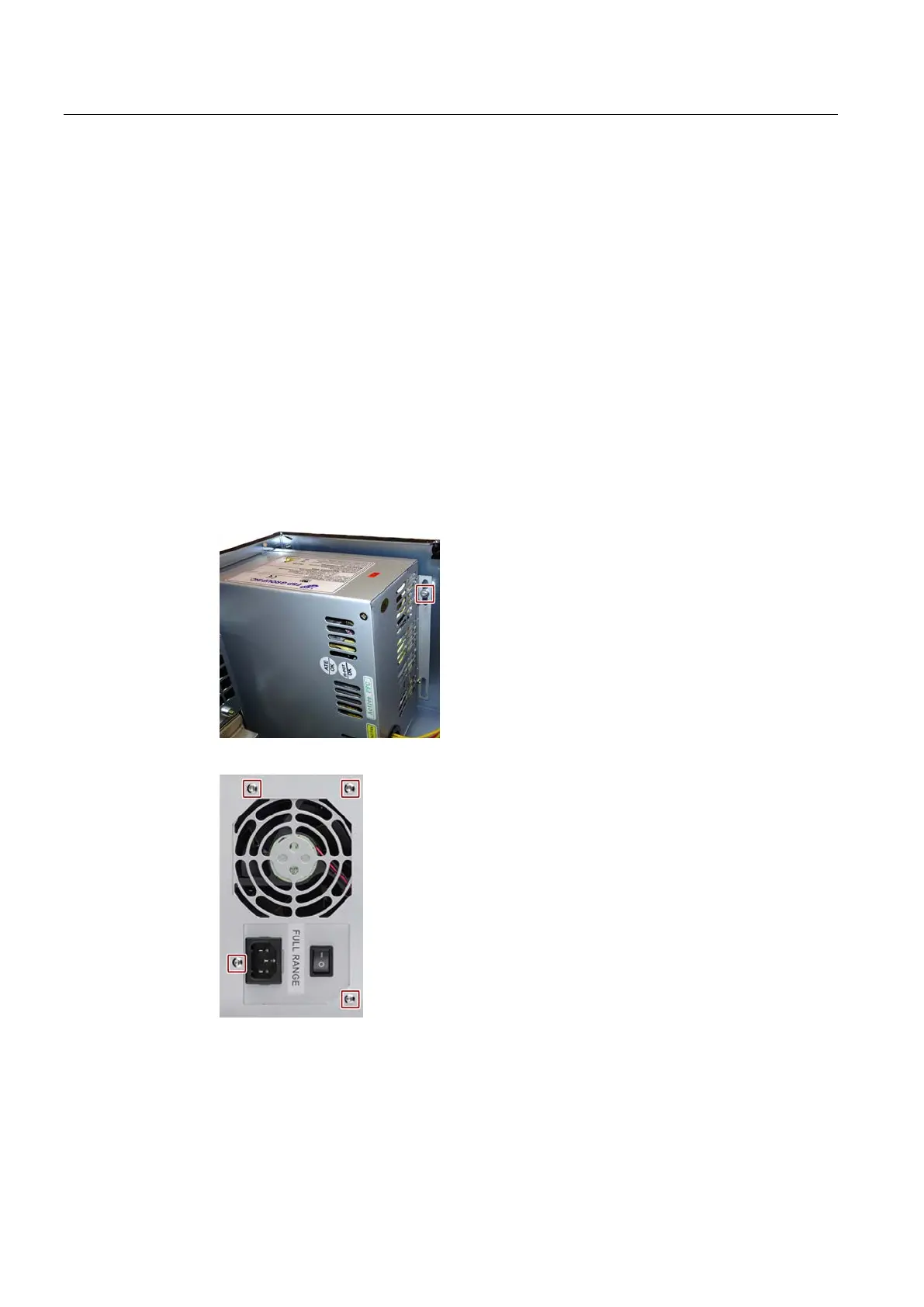

3. Remove the fixing screw that is marked in the figure below.
4. Remove the four fixing screws that are marked in the figure below.
5. Pull the power supply upward and out of the housing.
