Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
87
Installing a 5.25" front hard disk drive
Requirement
● The device is fully disconnected from the mains voltage, see chapter "Switching off the
device (Page 53)".
● The drive cage has been removed, see chapter "Removing and installing the drive cage
(Page 77)".
● T10 screwdriver
1. If a removable drive bay is already installed at the location in the drive cage where you
want to install the 5.25'' hard drive it can be removed by removing the screws on the
sides of the drive cage and then taking out the removable drive bay.
or:
Remove the corresponding panel if the space in the drive cage where you want to install
the 5.25'' hard disk drive is still available.
2. Carefully insert the 5.25" hard disk drive into the drive cage from the front.
Take care not to touch the contacts of the drive when you do this.
3. Fasten the 5.25"hard disk drive with the screws to the the drive cage.

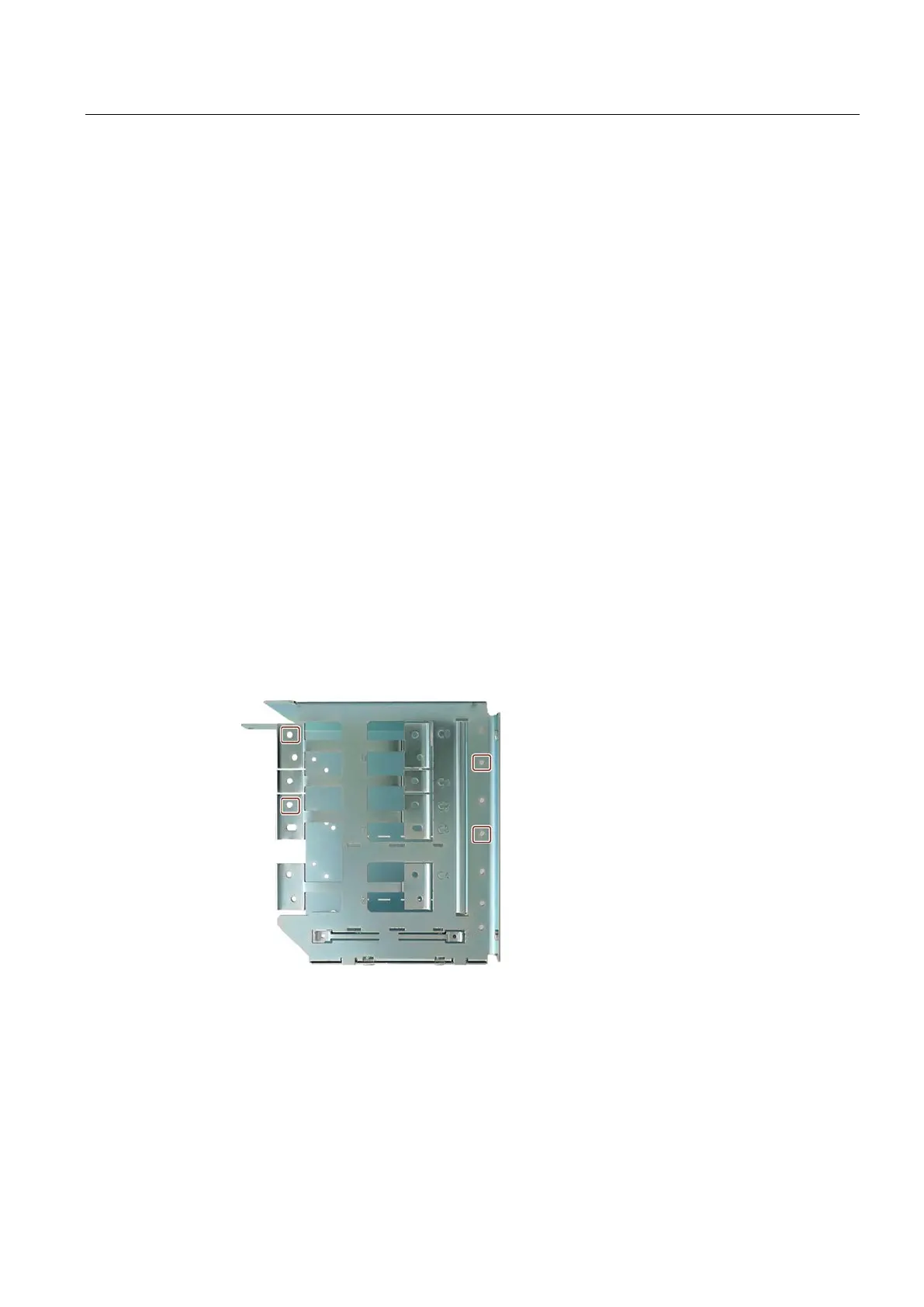

The figure below shows the possible positions of the screws on the left side of the drive
cage.
