Siemens SIMATIC NET SCALANCE SC-600 Configuration Manual

Configuring with Web Based Management
4.4 "System" menu
SCALANCE SC-600 Web Based Management (WBM)
178 Configuration Manual, 10/2021, C79000-G8976-C475-03
4.4.10.1 Manual Setting

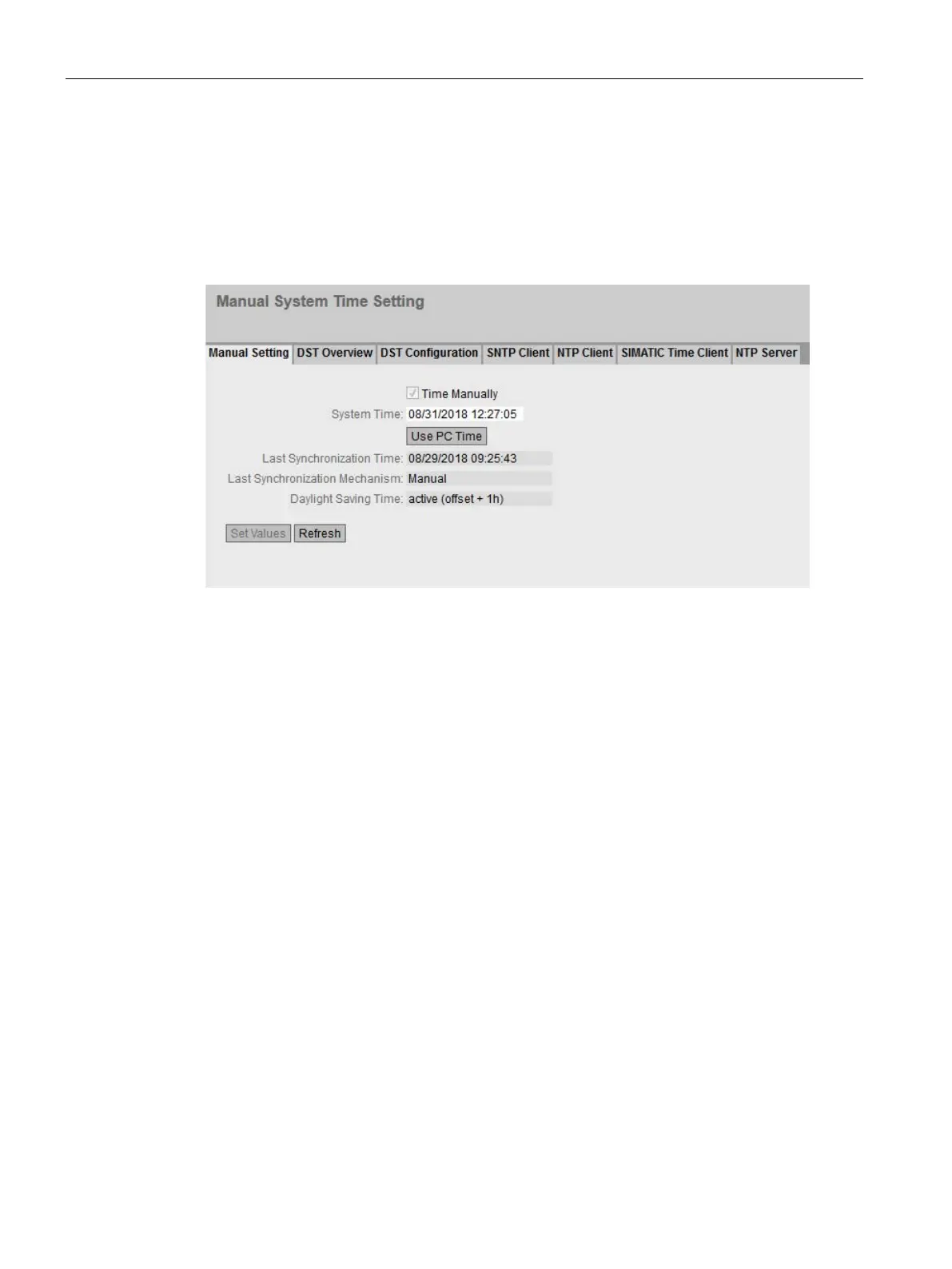

Manual setting of the system time
On this page, you set the date and time of the system yourself. For this setting to be
used, enable "Time Manually".
Description
The page contains the following boxes:
• Time Manually
Enable or disable the manual time setting. If you enable the option, the "System
Time" input box can be edited.
• System Time
Enter the date and time in the format "MM/DD/YYYY HH:MM:SS".
After a restart, the time of day begins at 01/01/2000 00:00:00
• Use PC Time
Click the button to use the time setting of the PC.
• Last Synchronization Time
Shows when the last time-of-day synchronization took place. If no time-of-day
synchronization was possible, the box displays "Date/time not set".

Siemens SIMATIC NET SCALANCE SC-600 Specifications

General

Product Series	SC-600
VLAN Support	Yes
VLAN standard	IEEE 802.1Q
QoS Support	Yes
Type of housing	Metal
Product Family	SCALANCE
Product type designation	SCALANCE SC-600
Port Types	Ethernet
Number of 100/1000Base-SFP ports	2
Operating Temperature	-40°C to +60°C
Ambient temperature during operation	-40 ... 60 °C
Ambient temperature during storage	-40 ... 70 °C
Relative humidity during operation	10% to 95% (non-condensing)
Protection class IP	IP30
Power Supply	24 V DC
Mounting Type	DIN rail
MTBF	Varies by model
Certifications	CE, UL, cUL, ATEX, IECEx
Switching Capacity	Varies by model
Throughput	Varies by model
MAC Address Table	Varies by model
Number of VLANs	Varies by model
Max. frame size	Varies by model
