Siemens SIMATIC NET SCALANCE SC-600 Configuration Manual

Configuring with Web Based Management
4.4 "System" menu
SCALANCE SC-600 Web Based Management (WBM)
198 Configuration Manual, 10/2021, C79000-G8976-C475-03
Configuration procedure
1. To use the functionality, select the corresponding check box.
2. Click the "Set Values" button.
See also
Upkeep and maintenance (Page 347)

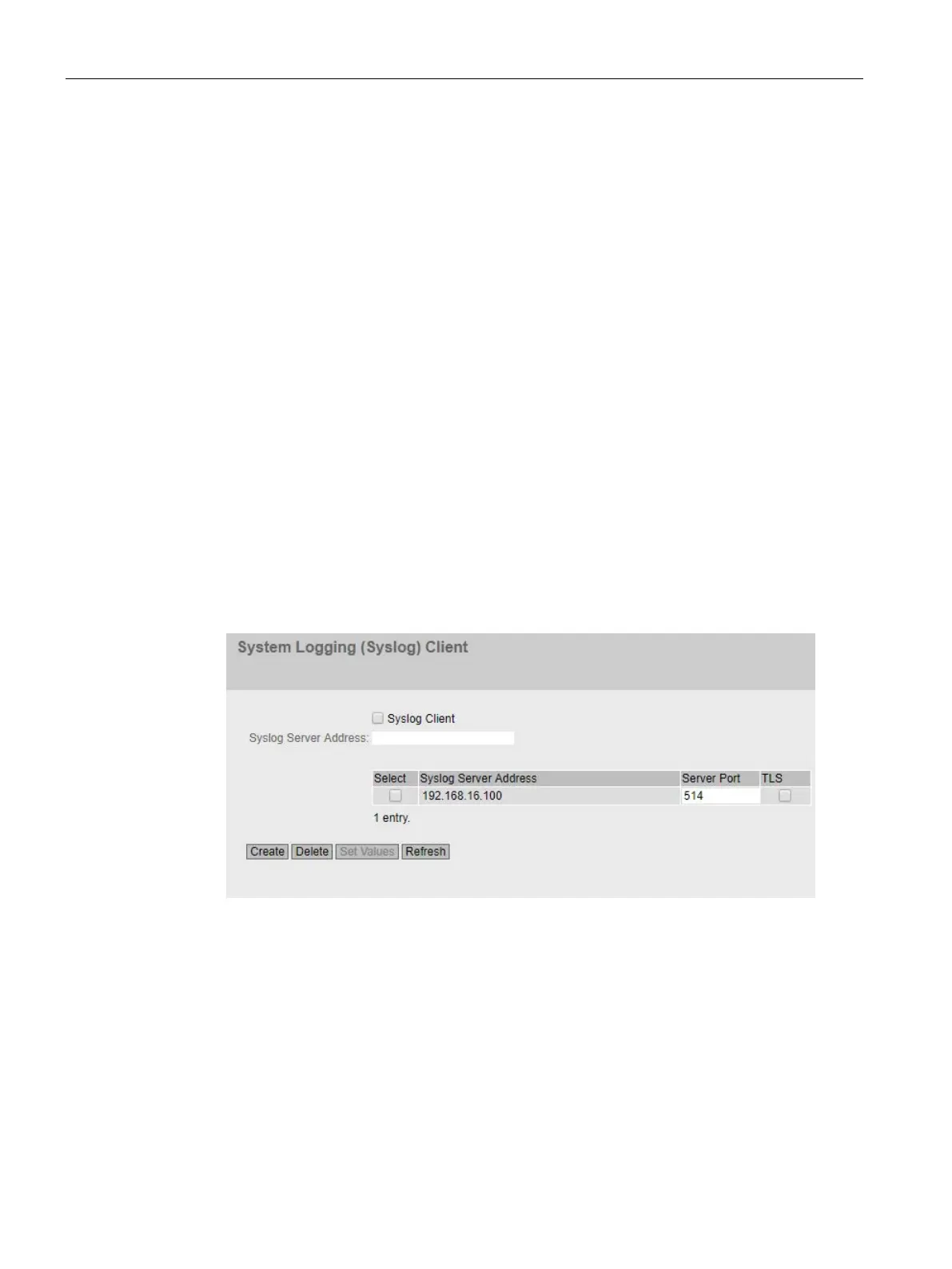

4.4.13 Syslog client
On this page, you configure the Syslog client. The Syslog messages can be sent to the
Syslog server unencrypted or encrypted.
Requirements for sending Syslog messages
• The Syslog client is enabled.
• In "System > Events > Configuration", "Syslog" is activated for the relevant event.
• There is a Syslog server in your network that receives the Syslog messages.
• The IP address or the FQDN (Fully Qualified Domain Name) of the Syslog server is
entered in the device.
Description
The page contains the following boxes:
• Syslog Client
Enable or disable the Syslog client on the device.
• Syslog Server Address
Enter the IP address, the FQDN (Fully Qualified Domain Name) or the host name of
the Syslog server.

Siemens SIMATIC NET SCALANCE SC-600 Specifications

General

Product Series	SC-600
VLAN Support	Yes
VLAN standard	IEEE 802.1Q
QoS Support	Yes
Type of housing	Metal
Product Family	SCALANCE
Product type designation	SCALANCE SC-600
Port Types	Ethernet
Number of 100/1000Base-SFP ports	2
Operating Temperature	-40°C to +60°C
Ambient temperature during operation	-40 ... 60 °C
Ambient temperature during storage	-40 ... 70 °C
Relative humidity during operation	10% to 95% (non-condensing)
Protection class IP	IP30
Power Supply	24 V DC
Mounting Type	DIN rail
MTBF	Varies by model
Certifications	CE, UL, cUL, ATEX, IECEx
Switching Capacity	Varies by model
Throughput	Varies by model
MAC Address Table	Varies by model
Number of VLANs	Varies by model
Max. frame size	Varies by model
