4.6 "Layer 3" menu
SCALANCE SC-600 Web Based Management (WBM)
266 Configuration Manual, 10/2021, C79000-G8976-C475-03
The table has the following columns:
• Select
Select the check box in the row to be deleted.
• Source Interface
Shows the interface from which the packets need to come. Only these packets are
considered for port forwarding.
• Traffic Type
Shows the protocol for which the address assignment applies.
• Interface IP
Shows whether the IP address of the interface is used.
• Destination IP
Shows the destination IP address. The frames are received at this IP address.
• Destination Port
Shows the destination port. Incoming frames with this port as the destination port are
forwarded.
• Translated Destination IP
Shows the IP address of the node to which the packets will be forwarded.
• Translated Destination Port
Shows the destination port to which the packets are translated.
4.6.2.4 Source NAT

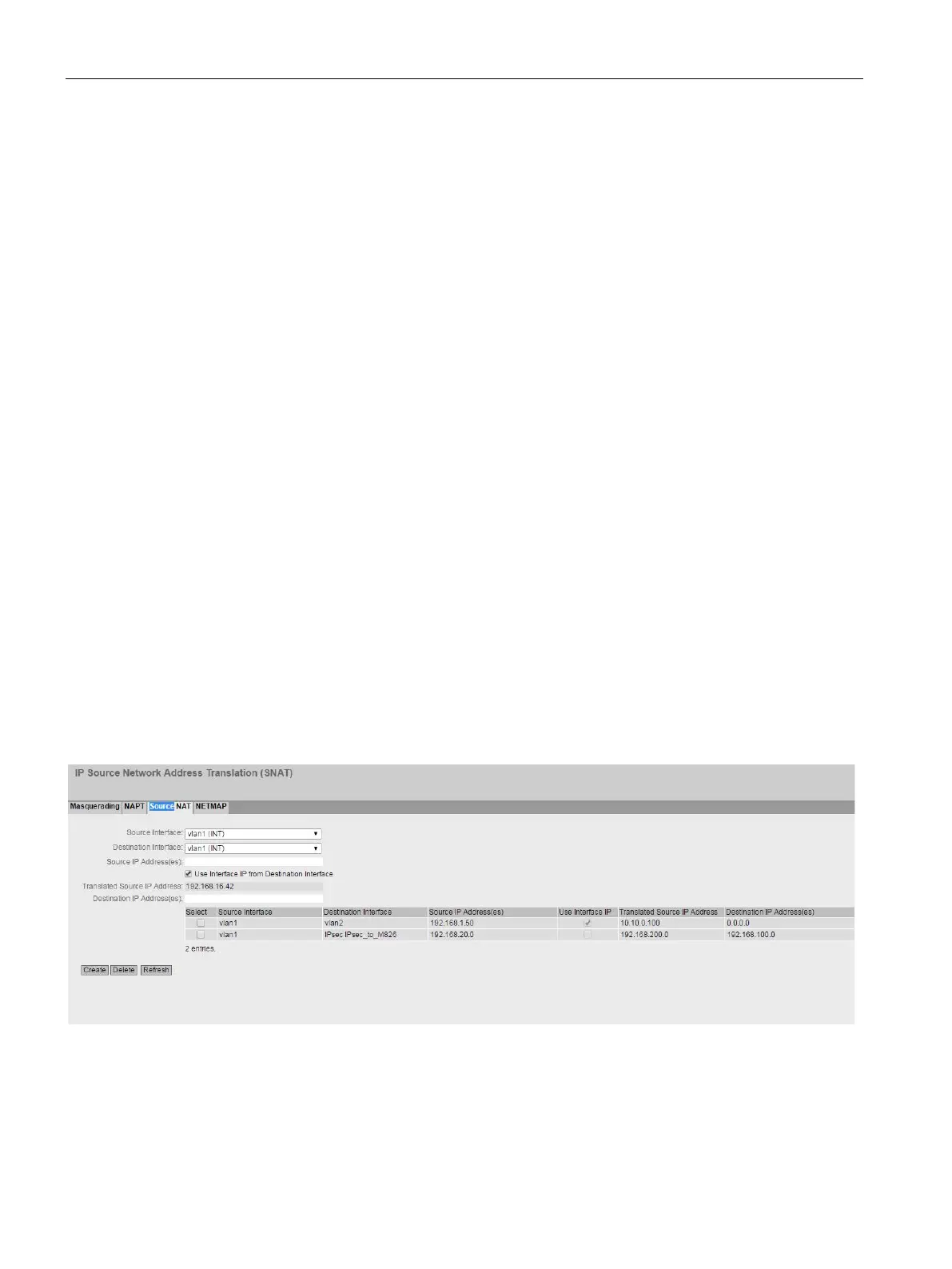

On this WBM page, you configure the rules for source NAT.

Siemens SIMATIC NET SCALANCE SC-600 Specifications

General

Product Series	SC-600
VLAN Support	Yes
VLAN standard	IEEE 802.1Q
QoS Support	Yes
Type of housing	Metal
Product Family	SCALANCE
Product type designation	SCALANCE SC-600
Port Types	Ethernet
Number of 100/1000Base-SFP ports	2
Operating Temperature	-40°C to +60°C
Ambient temperature during operation	-40 ... 60 °C
Ambient temperature during storage	-40 ... 70 °C
Relative humidity during operation	10% to 95% (non-condensing)
Protection class IP	IP30
Power Supply	24 V DC
Mounting Type	DIN rail
MTBF	Varies by model
Certifications	CE, UL, cUL, ATEX, IECEx
Switching Capacity	Varies by model
Throughput	Varies by model
MAC Address Table	Varies by model
Number of VLANs	Varies by model
Max. frame size	Varies by model
