Siemens SINAMICS G120C Getting Started

SINAMICS G120C converter
Getting Started, 04/2014, FW V4.7, A5E34264105B AA
15
Product overview
2
2.1
Type plate and technical data
The inverter type plate contains the most important technical data and the order number. A
type plate is provided at the following locations of an inverter:
● At the front after removing the dummy cover for the operator panel.
● At the side of the heat sink.

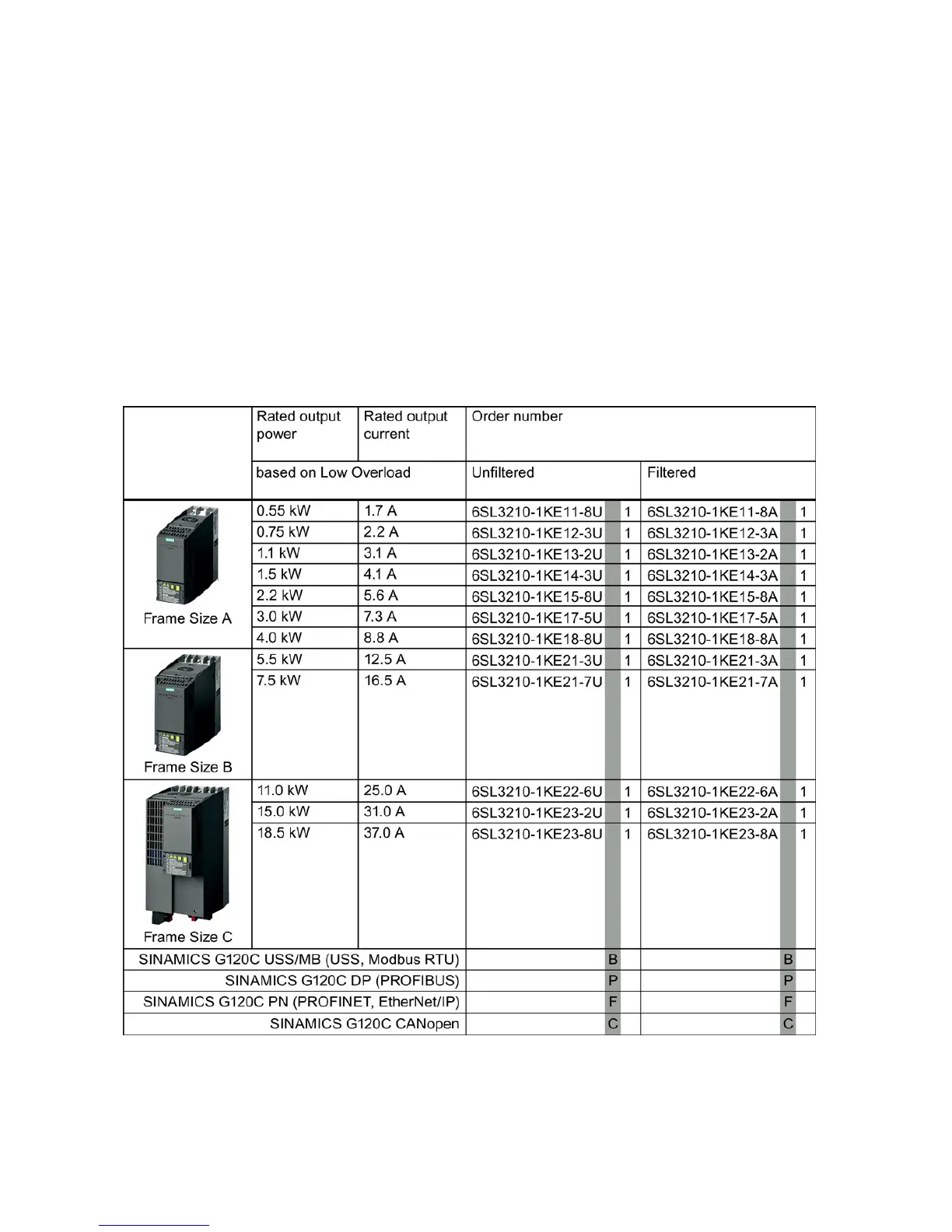

Figure 2-1 Identifying the converter

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
