Siemens SINAMICS G120C Getting Started

SINAMICS G120C converter
Getting Started, 04/2014, FW V4.7, A5E34264105B AA
17
Installing
3
3.1
Mounting
Dimensions

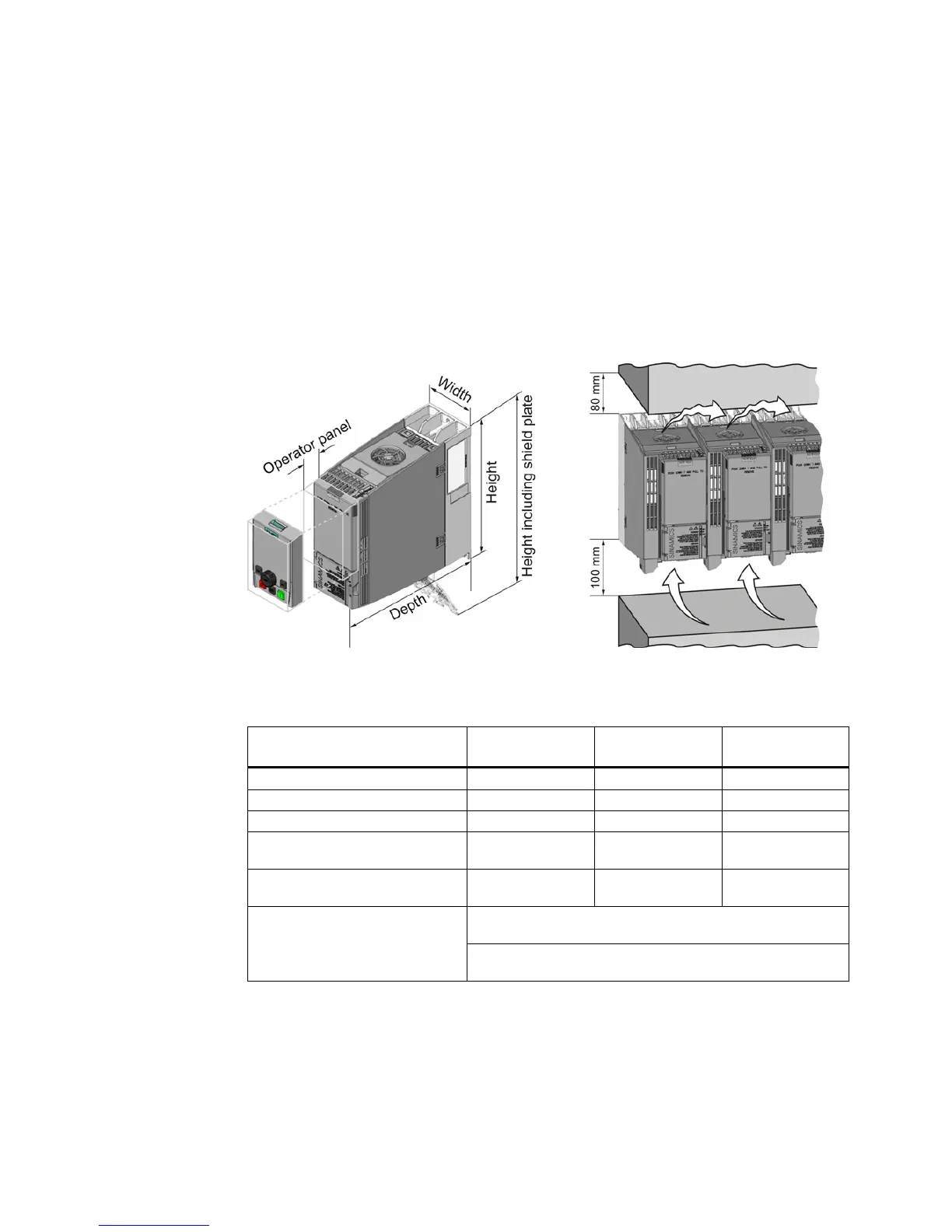

Figure 3-1 Dimensions and minimum spacing to other devices
Table 3- 1 Dimensions
Frame Size A
0.55 kW … 4.0 kW
Frame Size B
5.5 kW … 7.5 kW
Frame Size C
11 kW … 18.5 kW
Height
196 mm
196 mm
295 mm
Height including shield plate
276 mm
276 mm
375 mm
Width
73 mm
100 mm
140 mm
Depth of the inverter with
PROFINET interface
225.4 mm 225.4 mm 225.4 mm
Depth of the inverter with USS/MB,
CANopen, or PROFIBUS interface
203 mm 203 mm 203 mm
Additional depth when the Operator
Panel is attached
+ 21 mm when Operator Panel IOP (Intelligent Operator Panel)
is attached
+ 6 mm when Operator Panel BOP-2 (Basic Operator Panel) is
attached
