Installing
3.2 Connecting
SINAMICS G120C converter
Getting Started, 04/2014, FW V4.7, A5E34264105B AA
23
3.2.4
Terminal strips

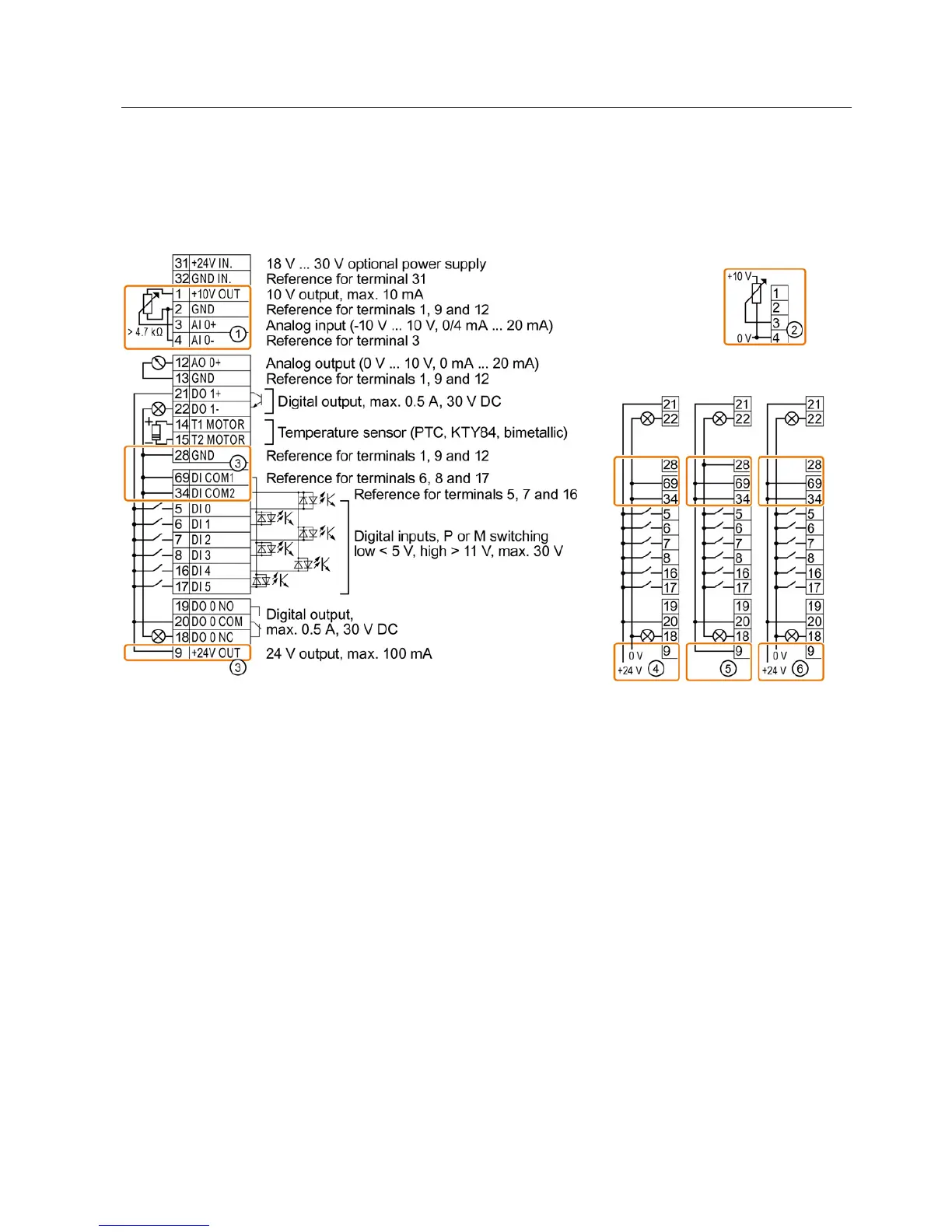

Wiring variations of the terminal strips
①
The analog input is supplied from the internal 10 V voltage.
②
The analog input is supplied from an external 10 V source.
③
Wiring when using the internal power supplies. Connecting a contact that switches to P potential.
④
Wiring when using external power supplies. Connecting a contact that switches to P potential.
⑤
Wiring when using the internal power supplies. Connecting a contact that switches to M potential.
⑥
Wiring when using external power supplies. Connecting a contact that switches to M potential.
