3.2 Connecting
SINAMICS G120C converter
Getting Started, 04/2014, FW V4.7, A5E34264105B AA
25
3.2.5

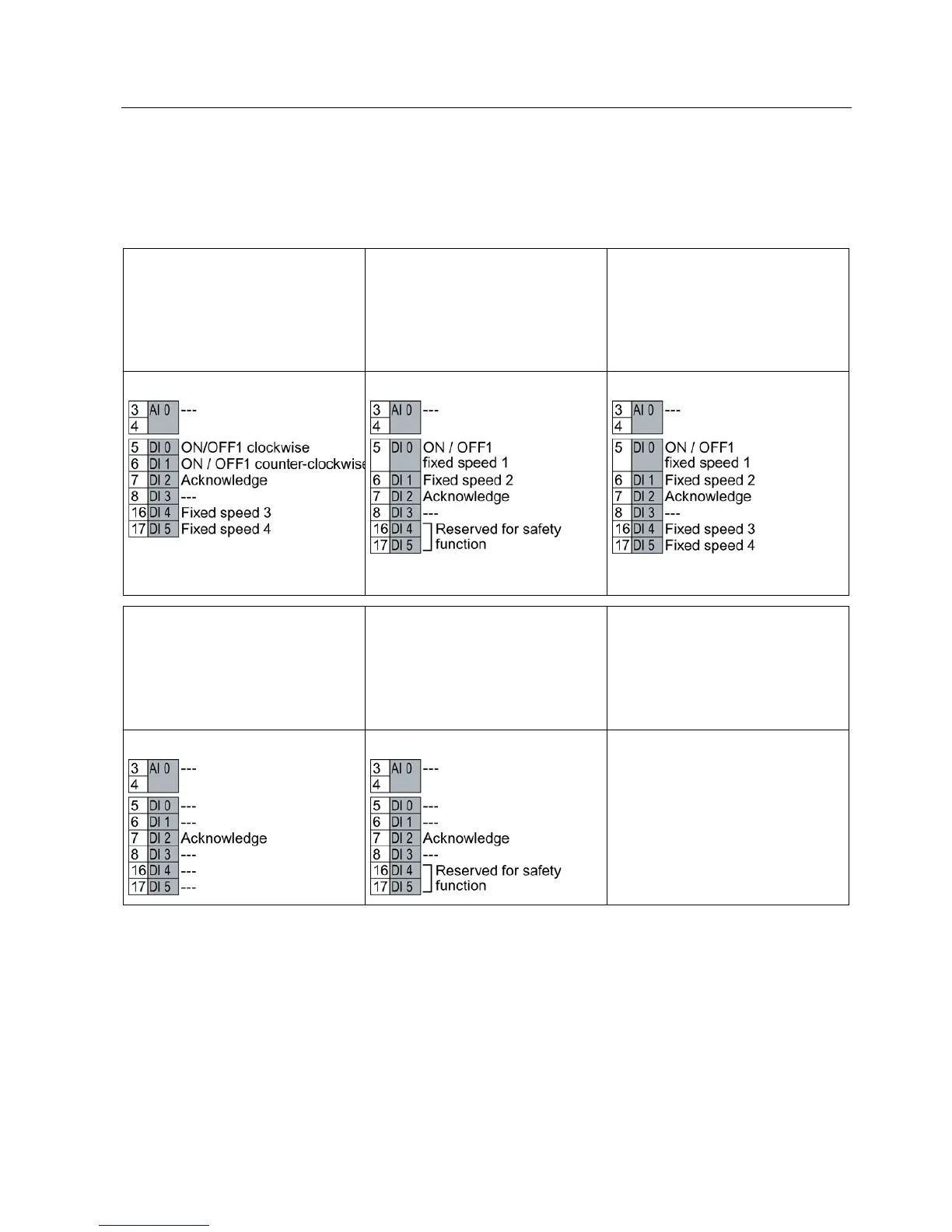

Default settings of the terminals
Available settings of the terminals
Default setting 1: Two fixed speeds
Selected with
• STARTER: Conveyor technology
with 2 fixed frequencies
• BOP-2: coN 2 SP
Default setting 2: Two fixed speeds
with safety function
Selected with
• STARTER: Conveyor systems with
Basic Safety
• BOP-2: coN SAFE
Default setting 3: Four fixed speeds
Selected with
• STARTER: Conveyor technology
with 4 fixed frequencies
• BOP-2: coN 4 SP
Fieldbus interface is not active.
DI 4 and DI 5 = high: The inverter adds
both fixed speeds.
Fieldbus interface is not active.
DI 0 and DI 1 = high: The inverter adds
both fixed speeds.
Fieldbus interface is not active.
Multiple DIs = high: The inverter adds
the corresponding fixed speeds.
Default setting 4: PROFIBUS or
PROFINET
Selected with
• STARTER: Conveyor systems with
fieldbus
• BOP2: coN Fb
Default setting 5: PROFIBUS or
PROFINET with safety function
Selected with
• STARTER: Conveyor systems with
fieldbus and Basic Safety
• BOP-2: coN Fb S
PROFIdrive telegram 352
PROFIdrive telegram 352
