Mechanical installation
3.3 Push-through mounting (frame sizes B ... D)
SINAMICS V20 Inverter
18 Operating Instructions, 07/2012, A5E03728167
3.3 Push-through mounting (frame sizes B ... D)
The frame sizes B to D are designed to be compatible with "push-through" applications,
allowing you to mount the heatsink of the inverter through the back of the cabinet panel.
When the inverter is mounted as the push-through variant, no higher IP rating is achieved.
Make sure that the required IP rating for the enclosure is maintained.
An additional mounting method is also available for different frame sizes. For more details,
refer to the following section:
●
Cabinet panel mounting (frame sizes A ... D) (Page 16)

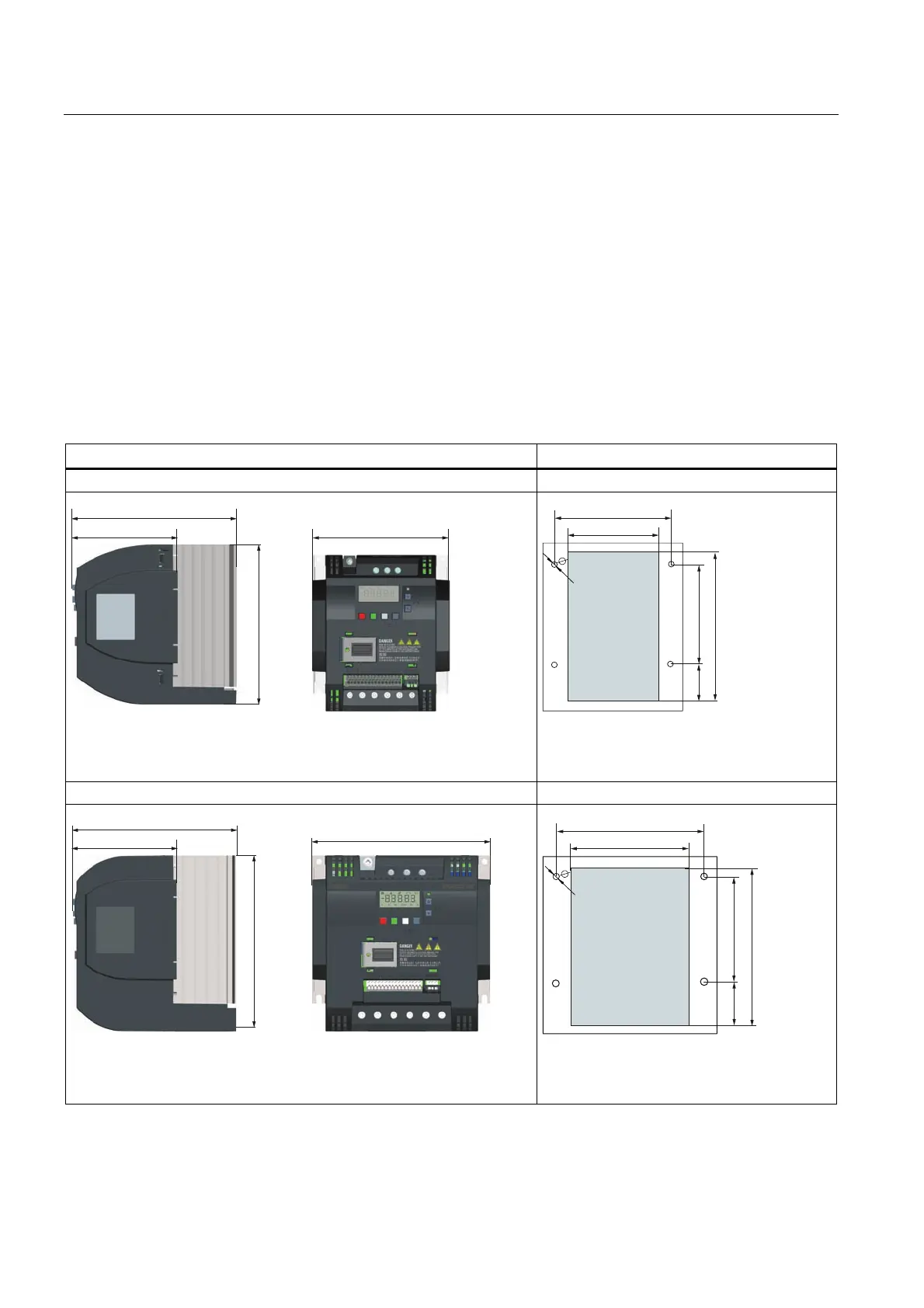

Outline dimensions, drill patterns, and cut-outs
Dimensions (mm) Drill pattern and cut-out (mm)
Frame size B
&XWRXWDUHD
Fixings:
4 x M4 screws
Tightening torque: 1.8 Nm ± 10%
Frame size C
&XWRXWDUHD
Fixings:
4 x M5 screws
Tightening torque: 2.5 Nm ± 10%
