SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
29
Commissioning
5
NOTICE
For a detailed description of parameter settings for the quick commissioning, refer to the
topic "
Quick commissioning (Page 38)".
5.1 The built-in Basic Operator Panel (BOP)

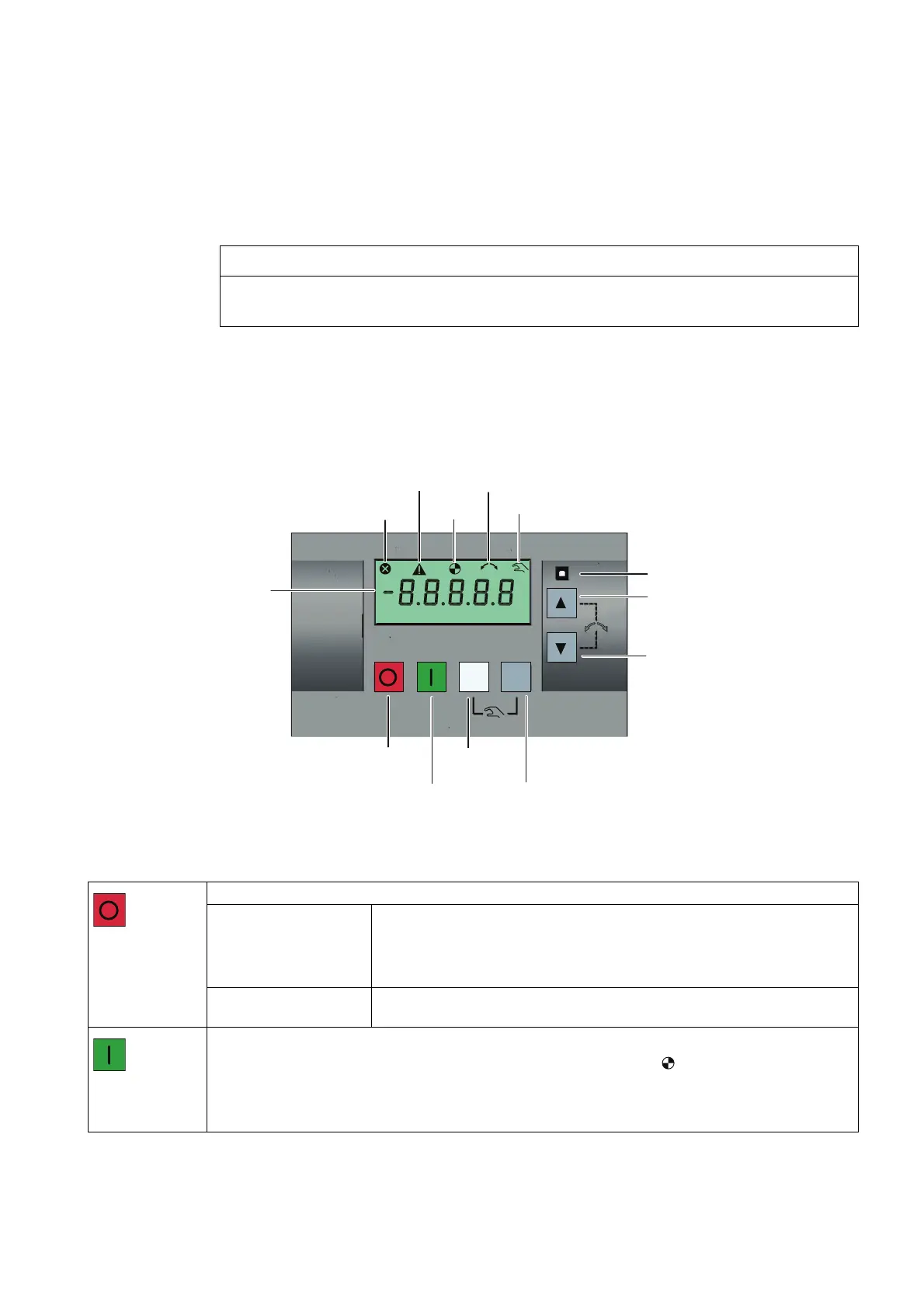

5.1.1 Introduction to the built-in BOP
OK
M
V
A
Hz
1/min
kW
%
6723
)DXOW
5XQQLQJ
$872+$1'-2*PRGH
$ODUP
5HYHUVH
581
)81&7,21
83
6WDWXV/('
/&'
GLVSOD\
'2:1
2.
Button functions
Stops the inverter
Single press OFF1 stop reaction: the inverter brings the motor to a standstill in the ramp-
down time set in parameter P1121.
Note:
If configured to be an OFF1 stop, this button is inactive in AUTO mode.
Double press (< 2 s) or
long press ( > 3 s)
OFF2 stop reaction: the inverter allows the motor to coast to a standstill
without using any ramp-down timings.
Starts the inverter
If the inverter is started in HAND / JOG mode, the inverter running icon (
) displays.
Note:
This button is inactive if the inverter is configured for control from terminals (P0700 = 2, P1000 = 2) and
is in AUTO mode.
