Siemens SINAMICS V20 Series User Manual

Commissioning
5.5 Quick commissioning
SINAMICS V20 Inverter
40 Operating Instructions, 07/2012, A5E03728167
5.5.1.2 Setting motor data
Functionality
This menu is designed for easy setup of nominal motor nameplate data.

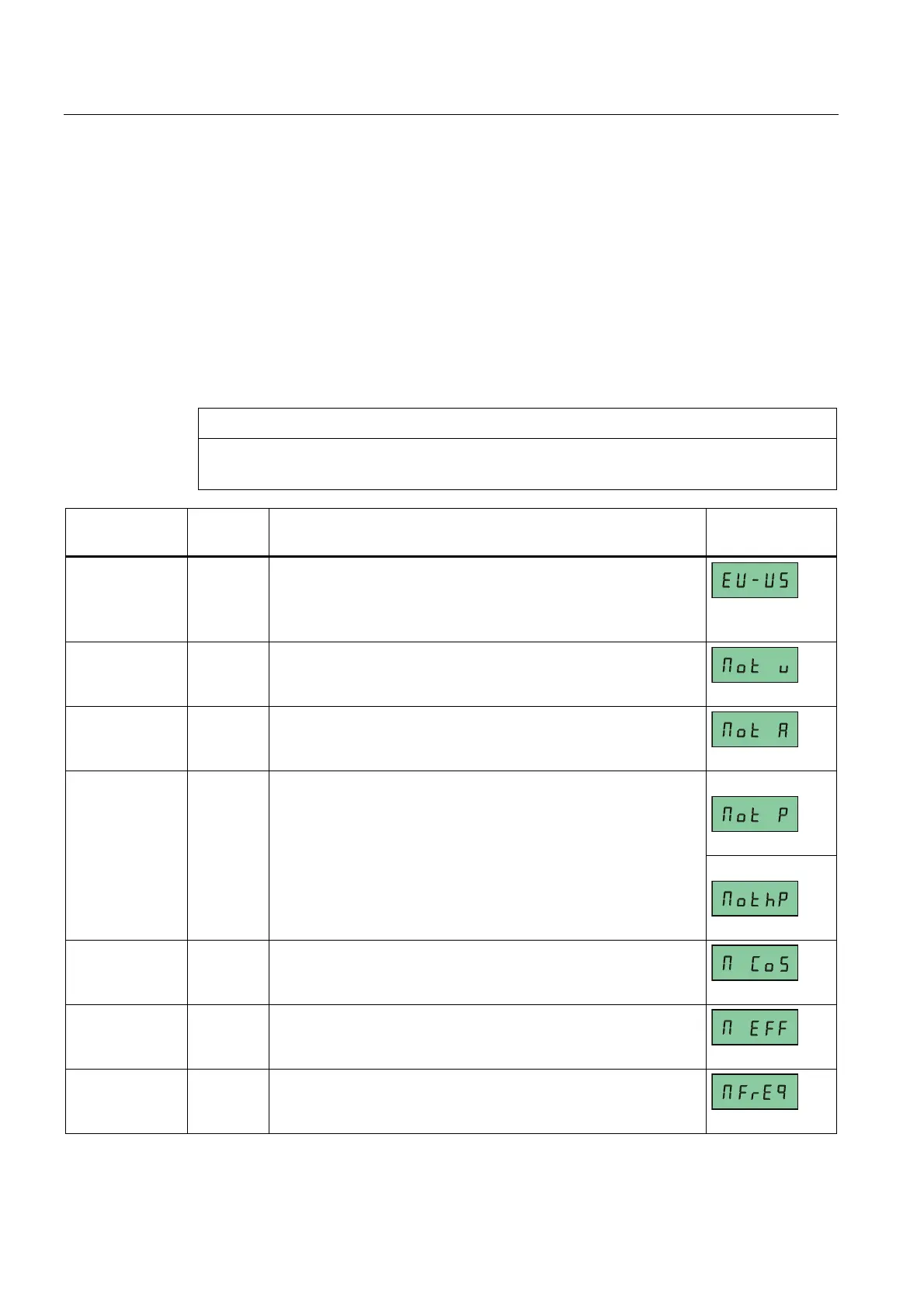

Text menu
If you set P8553 to 1, parameter numbers in this menu are replaced with short text.
Setting parameters
NOTICE
In the table below, "●" indicates that the value of this parameter must be entered according
to the rating plate of the motor.
Parameter Access
level
Function Text menu
(if P8553 = 1)
P0100 1 50 / 60 Hz selection
=0: Europe [kW], 50 Hz (factory default)
=1: North America [hp], 60 Hz
=2: North America [kW], 60 Hz
(EU - US)
P0304[0] ● 1 Rated motor voltage [V]
Note that the input of rating plate data must correspond with the
wiring of the motor (star / delta)
(MOT V)
P0305[0] ● 1 Rated motor current [A]
Note that the input of rating plate data must correspond with the
wiring of the motor (star / delta)
(MOT A)
P0100 = 0 or 2:
(MOT P)
P0307[0] ● 1 Rated motor power [kW / hp]
If P0100 = 0 or 2, motor power unit = [kW]
If P0100 = 1, motor power unit = [hp]
P0100 =1:
(MOT HP)
P0308[0] ● 1 Rated motor power factor (cosφ)
Visible only when P0100 = 0 or 2
(M COS)
P0309[0] ● 1 Rated motor efficiency [%]
Visible only when P0100 = 1
Setting 0 causes internal calculation of value.
(M EFF)
P0310[0] ● 1 Rated motor frequency [Hz]
(M FREQ)
