Options and spare parts
B.1 Options
SINAMICS V20 Inverter
260 Operating Instructions, 07/2012, A5E03728167
B.1.7 Output choke
Make sure you use a shielded cable (maximum length: 100 m) to connect the output choke.
Frame size Inverter power rating (kW) Output choke (order number)
3 AC 400 V inverters
0.37
0.55
0.75
1.1
1.5
6SE6400-3TC00-4AD2
Frame size A
2.2
3 Frame size B
4
6SE6400-3TC01-0BD3
Frame size C 5.5
7.5
11
Frame size D
15
6SE6400-3TC03-2CD3
B.1.8 Screening plate kit
Functionality
The screening plate kit is supplied as an option for each frame size. It allows easy and
efficient connection of the necessary screening to achieve EMC-compliant installation of the
inverter (see Section "
EMC-compliant installation (Page 27)" for details).
Components

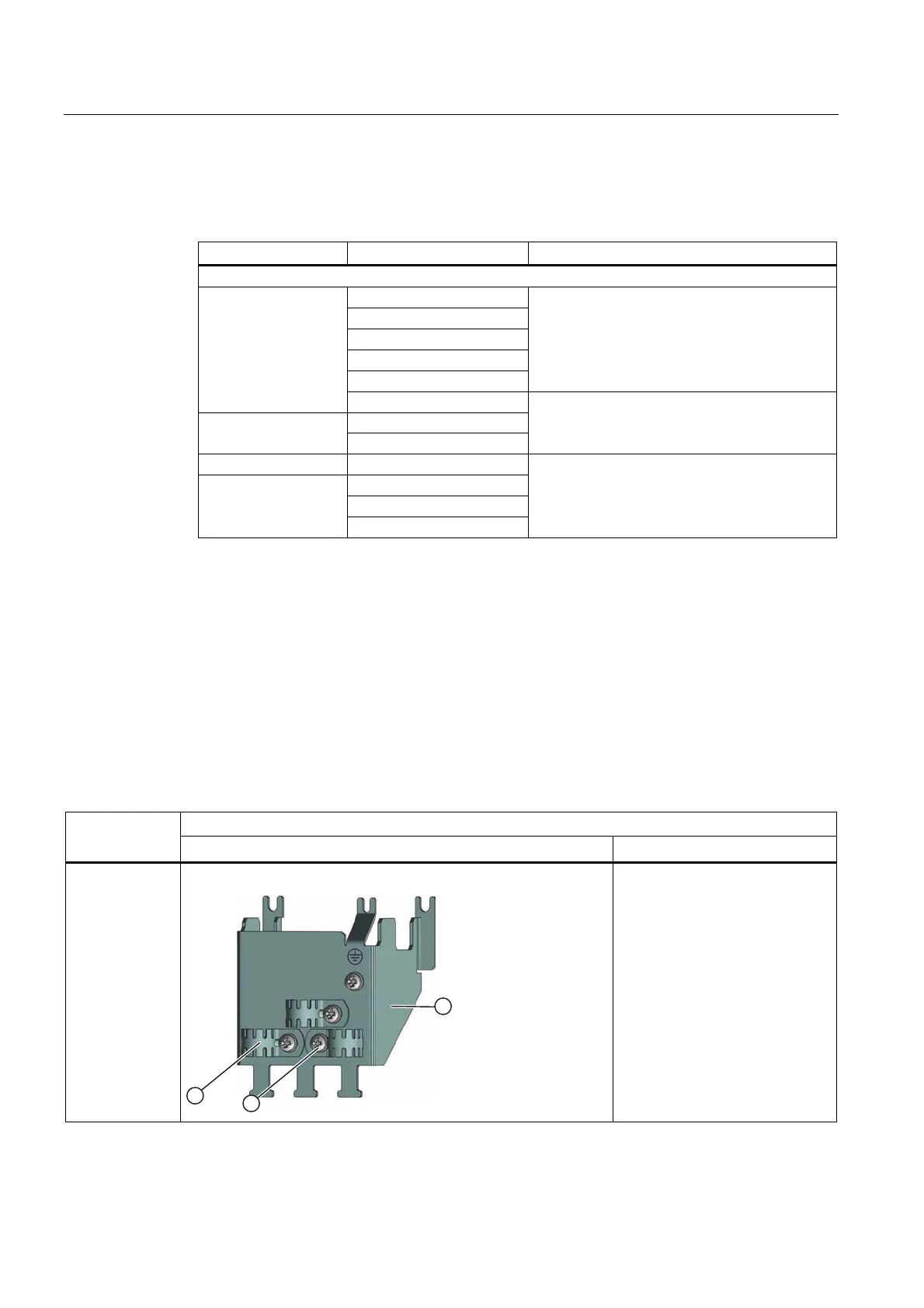

Screening plate kit
Inverter variant
Illustration Components
Frame size A Order number: 6SL3266-1AA00-0VA0
① Screening plate
② 3 × cable screen clamps
③ 4 × M4 screws (tightening
torque: 1.8 Nm ± 10%)
