Siemens SIPART DR19 User Manual

SIPART DR19
C73000-B7474-C140-06
51
Quick Reference Operating and Monitoring
2 Operating and Monitoring
1 Digital indicator PV-X for actual value x (pv)
2 Digital indicator SP-W for setpoint w (sp) or manipulated variable y (out), other
values possible
3 Analog indicator for e (xd) or -e (xw), other values can be displayed
3.1 Null indicator for w-x=0
4 x signal lamp - indicates the displayed values see configuring switch S88
5 w signal lamp - lights up when w is displayed on digital indicator SP-W (2)
6 Switchover button for digital indicator SP-W (2), and adjustment buttons (7),
(8); Pushbutton to acknowledge flashing after power restored or for accessing
selection level
7 Button to modify manipulated value - decrease (increase) or button "decrease
setpoint"
8 Button to modify manipulated value - increase (decrease) or button "decrease
setpoint"
9 Switchover button "Hand/Auto" or "Enter" button for accessing the selection
level in the configuration level
10 Signal lamp "y-external operation"
11 Signal lamp "hand operation"
12 Signal lamps for the y-digital outputs with S controller
13 Switchover button "internal/external setpoint" or Exit button to return from
configuring and selection levels to the process control level
14 Signal lamp "computer (with w
ext.
) switched off"
15 Signal lamp "internal setpoint"
16 "Adaptation in progress" signal lamp
17 "Limit value violated" signal lamp. Other signals possible.
+
NOTE
Operation can be disabled by the digital signal bLb; exception: switchover for
digital indicator SP-W (2).

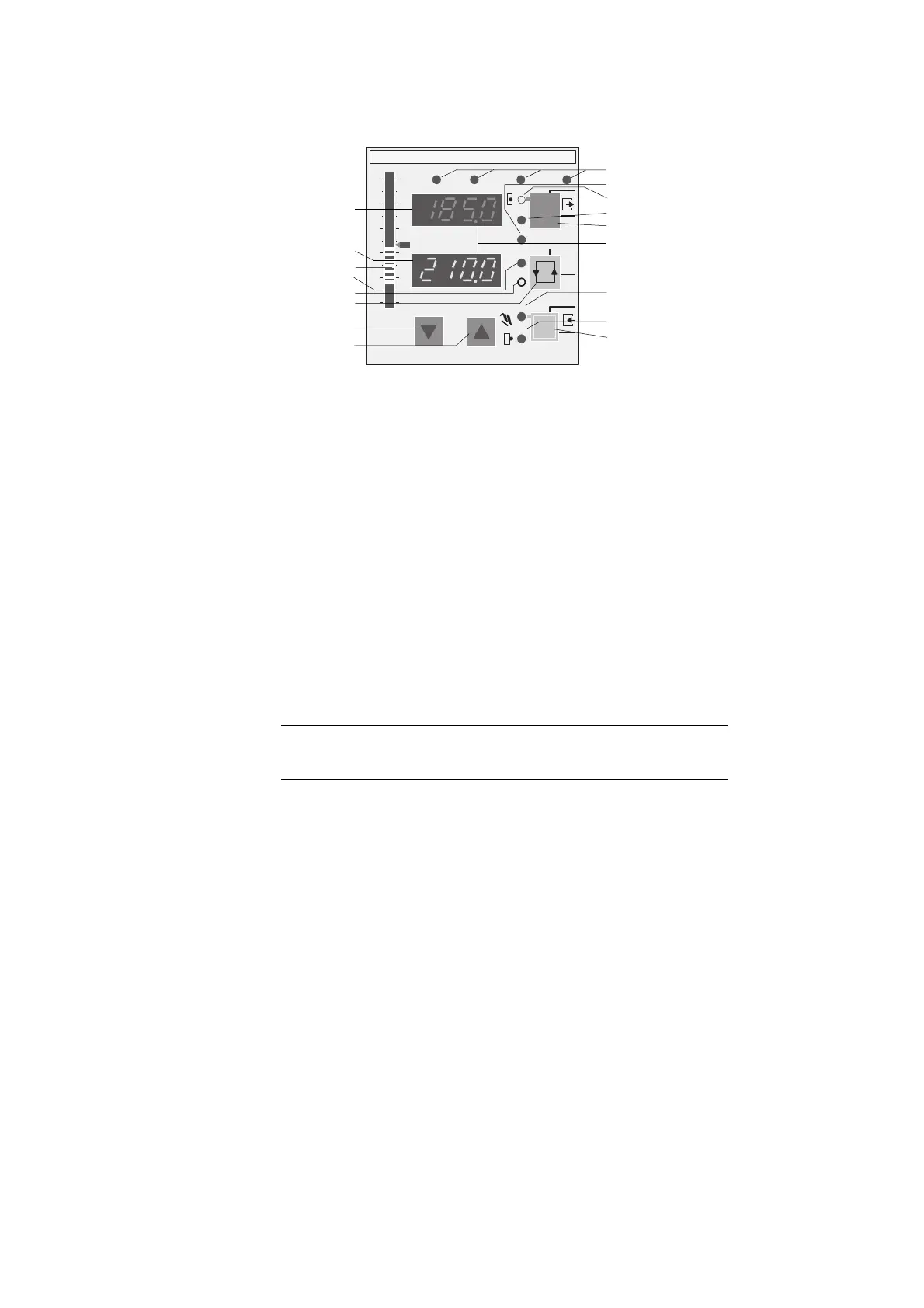

C
ontrols and
displays on
front panel
SIPART DR19
SIEMENS
OUT-Y
C
x
w
ADAPT
1234
SP-W
PV-X
SIPART DR19
+
-
0
100
80
0
20
40
60
17
16
15
14
13
12
1
2
3
4
5
6
11
10
9
7
8
Display actual
and setpoint
values
Modify mani-
pulated value
Modify set-
pont
Other signals
