SITOP PSU100S
Operating Instructions, 02.2013, C98130-A7589-A1-3-7629
17
Mounting/removal
3
WARNING
Installing the device in a housing or a control cabinet
SITOP PSU100S power supplies are built-in units. They must be installed in a housing or
control cabinet where only qualified personnel have access.
The device can be snapped onto a standard mounting rail EN 60715 35×7.5/15 for
installation in a control cabinet.
Mounting
To mount the device, position it with the mounting rail guide at the upper edge of the
standard mounting rail and press down to lock it into place. If this is too difficult, press slider
⑥ at the same time, as described under "Removal".
Removal
To remove, pull up the slider
⑥ using a screwdriver and disengage the device at the bottom
edge of the standard mounting rail (see Removal diagram (Page 17)). Then you can remove
the devi
ce from the upper edge of the standard mounting rail.

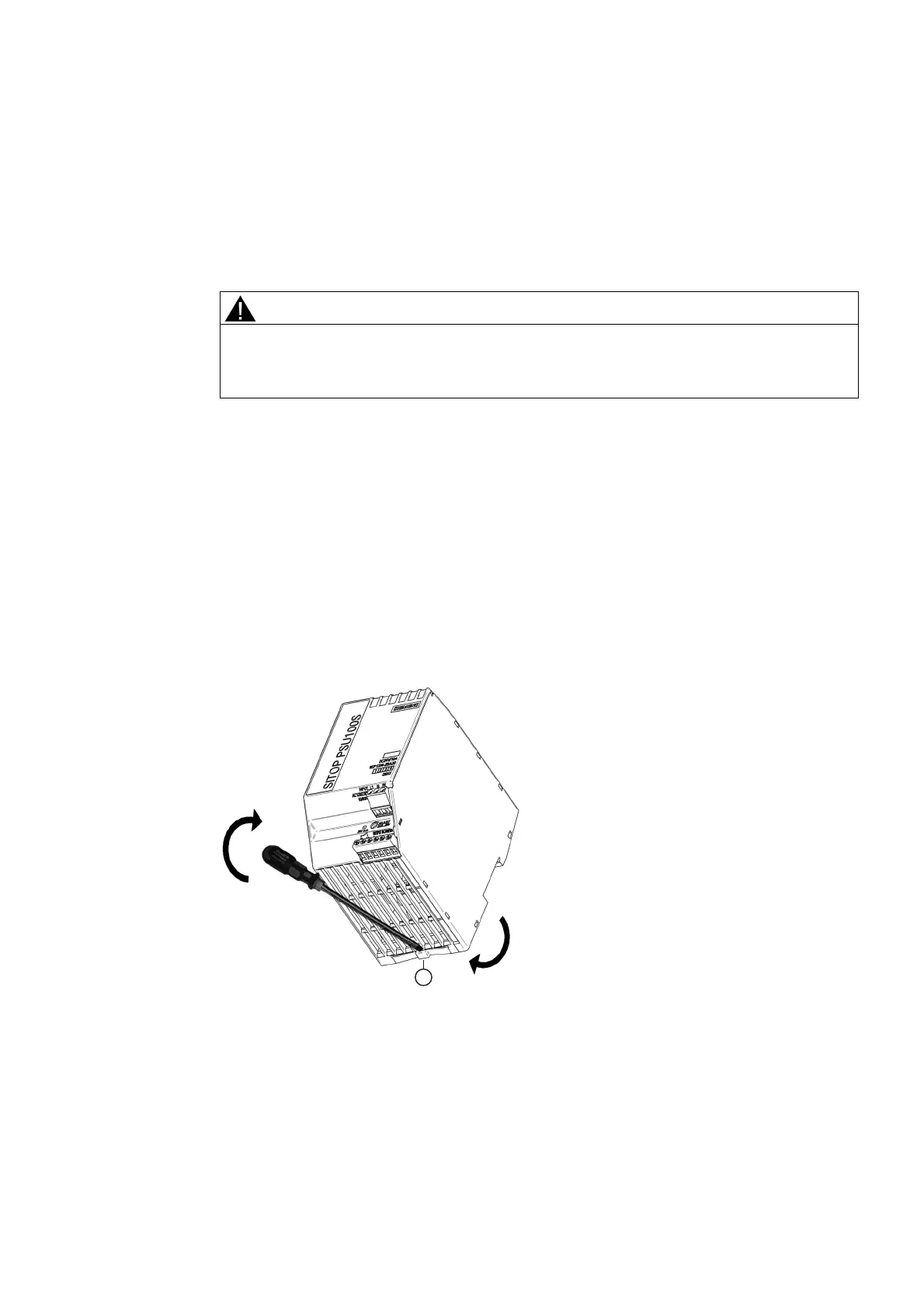

Figure 3-1 Removal
