6.4 Closed-loop control
SITOP PSU100S
50 Operating Instructions, 02.2013, C98130-A7589-A1-3-7629
10,5 A
7 A
14 A
14 A
7 A
10,5 A
80
80
100 120 140 160 180
84
85
82
81
83
86
87
88
200
89
90
220 240 260 280
(IILFLHQF\>@
,QSXWYROWDJH>9@

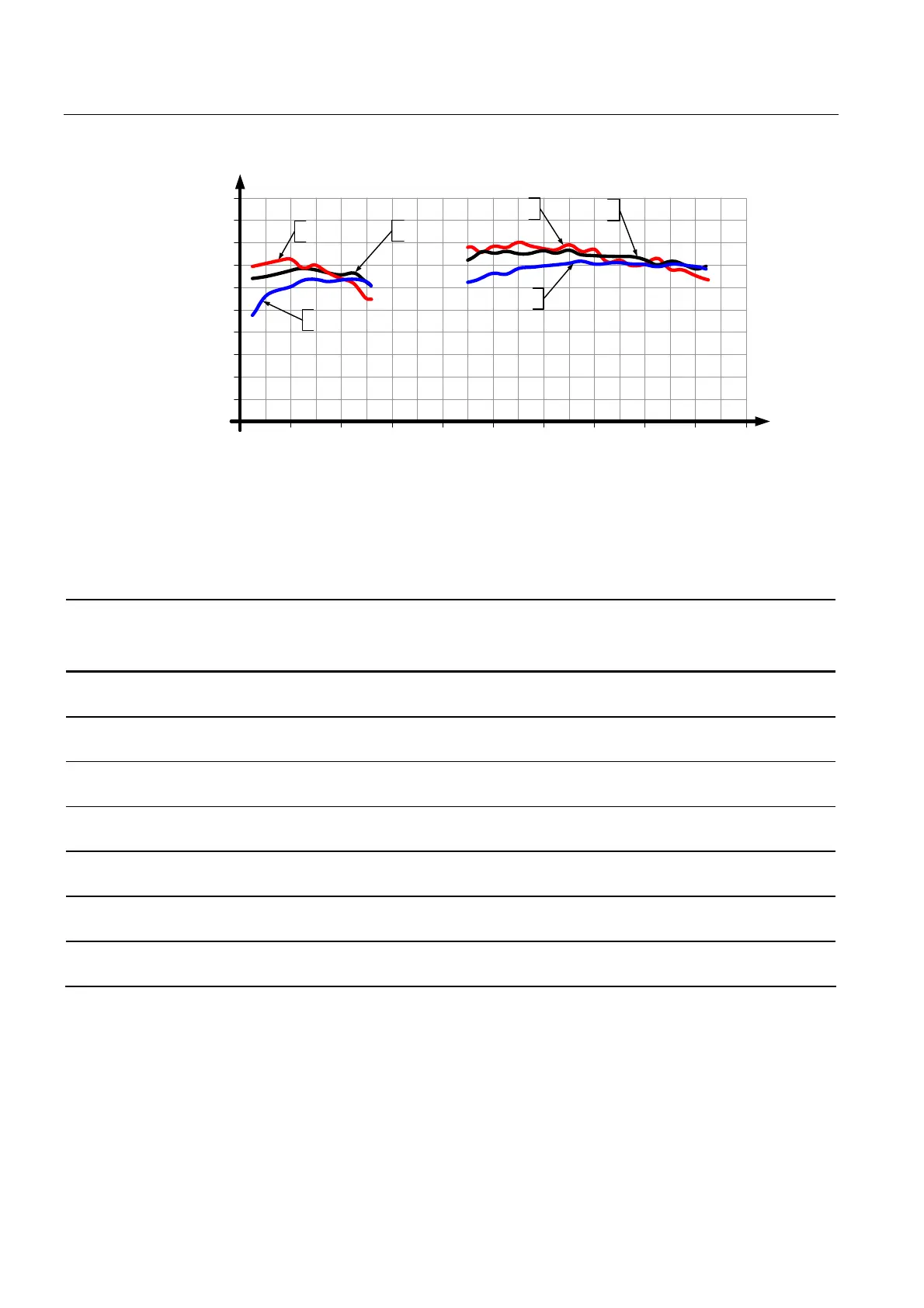

Figure 6-14 Efficiency 6EP1323-2BA00
6.4 Closed-loop control
6EP1332-2BA20
6EP1333-2BA20
6EP1334-2BA20
6EP1336-2BA10 6EP1322-2BA00
6EP1323-2BA00
Dyn. line regulation
(Ue rated ±15%), max.
3 % UA 3 % UA 3 % UA
Dyn. load regulation
(Ia: 10/90/10 %), max.
±5 % UA - ±15 % UA
Dyn. load regulation
(Ia: 10/90/10 %), typ.
- ±3 % UA -
Load-step settling time
10 to 90 %, max.
1 ms 10 ms 1 ms
Load-step settling time
10 to 90 %, typ.
- 2 ms -
Load-step settling time
90 to 10 %, max.
1 ms 10 ms 1 ms
Load-step settling time
90 to 10 %, typ.
- 2 ms -
