SITOP PSU100S
Operating Instructions, 02.2013, C98130-A7589-A1-3-7629
19
Mounting position, mounting clearances
4
4.1 Standard mounting position
The device is designed for installation on standard EN 60715 35×7.5/15 mounting rails. The
device must be mounted vertically to ensure proper cooling, and with the input terminals and
output terminals at the bottom.
A clearance of at least 50 mm should be maintained above and below the device (maximum
depth of the cable duct, 50 mm).
No space is required at the side.

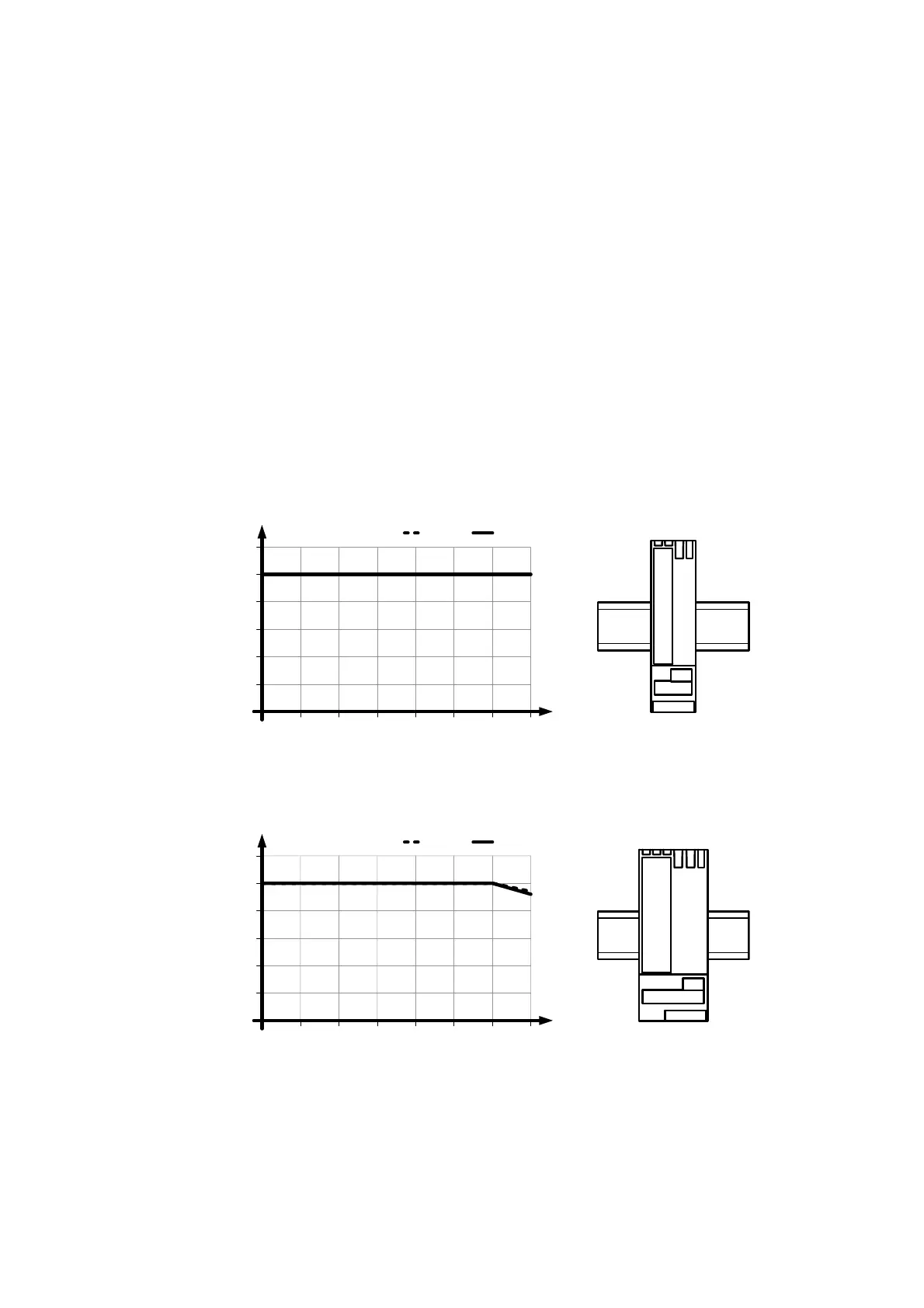

Output current as a function of the ambient temperature and mounting height
SITOP PSU100S
IN
OUT
70
2,0
0
2,5
1,0
0,5
1,5
0
20 40 60
10 30
50
3,0
120 V
230 V=
2XWSXWFXUUHQW>$@
7HPSHUDWXUH>r&@
Figure 4-1 6EP1332-2BA20: Output current in the standard mounting position
70
4
0
5
2
1
3
0
20 40 60
10 30
50
6
120 V
230 V
SITOP PSU100S
IN
OUT
2XWSXWFXUUHQW>$@
7HPSHUDWXUH>r&@
Figure 4-2 6EP1333-2BA20: Output current in the standard mounting position
