Technical data
6.3 Efficiency
SITOP PSU100S
Operating Instructions, 02.2013, C98130-A7589-A1-3-7629
47
When the output voltage falls below approx. 10 V, the 6EP1336-2BA10 device switches off,
and automatically restarts. This response is repeated as long as the overload condition is
present.
6.3 Efficiency
6EP1332-2BA20 6EP1333-2BA20 6EP1334-2BA20 6EP1336-2BA10
Efficiency at Ua rated, Ia rated
120 V / 230 V AC approx.
83 % / 85 % 86 % / 87 % 89 % / 90 % 89 % / 90 %
Power loss at Ua rated, Ia rated
120 V / 230 V AC approx.
11 W / 10 W 18 W / 16 W 27 W / 25 W 59 W / 53 W
Power loss when idling
120 V / 230 V AC approx.
1.7 W / 1.2 W 1.8 W / 1.3 W 3.0 W / 2.4 W 4.1 W / 3.6 W
6EP1322-2BA00 6EP1323-2BA00
Efficiency at Ua rated, Ia rated
120 V / 230 V AC approx.
82 % / 83 % 86 % / 87 %
Power loss at Ua rated, Ia rated
120 V / 230 V AC approx.
16 W / 15 W 27 W / 15 W
Power loss when idling
120 V / 230 V AC approx.
1.5 W / 1.0 W 2.8 W / 2.3 W
1,875 A
1,25 A
2,5 A
2,5 A
1,25 A 1,875 A
80
80
100 120 140 160 180
84
85
82
81
83
86
87
88
200
89
90
220 240 260 280
(IILFLHQF\>@
,QSXWYROWDJH>9@

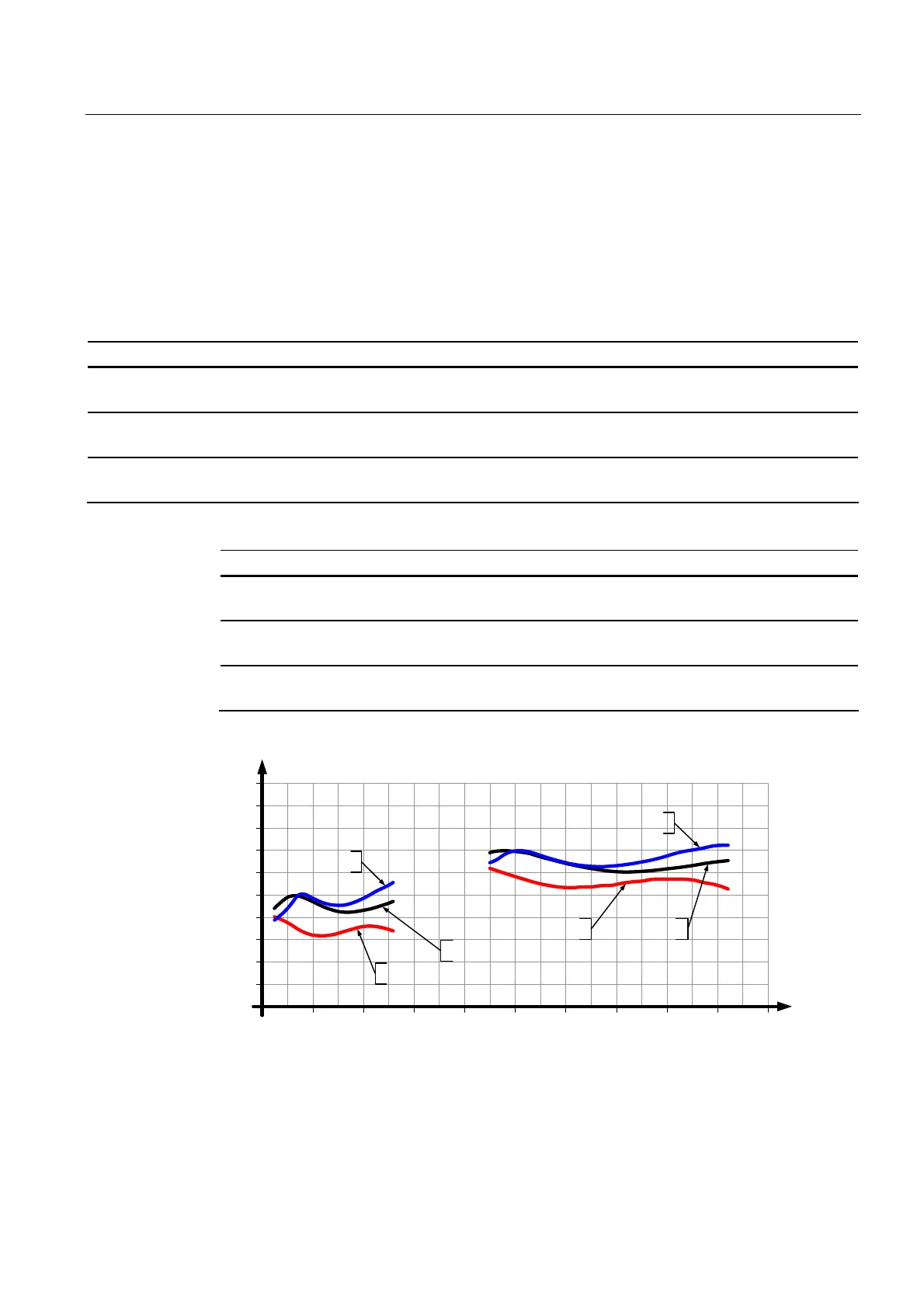

Figure 6-9 Efficiency 6EP1332-2BA20
