Technical data
6.2 Output
SITOP PSU100S
Operating Instructions, 02.2013, C98130-A7589-A1-3-7629
41
,QSXWYROWDJH
2XWSXWYROWDJH
%XIIHUWLPH


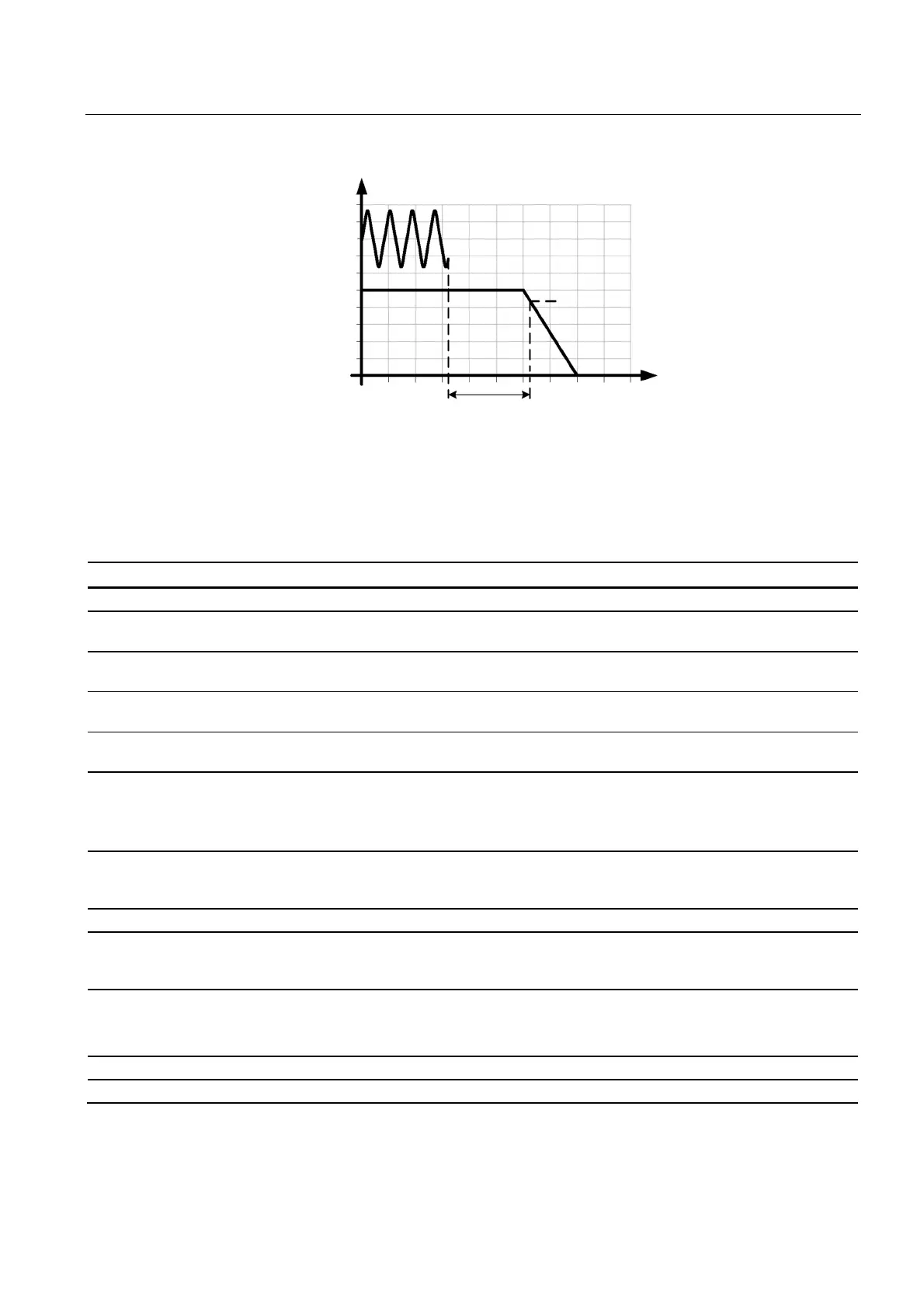

Figure 6-1 Power-failure buffering
6.2 Output
6EP1332-2BA20 6EP1333-2BA20 6EP1334-2BA20 6EP1336-2BA10
Output Regulated, isolated DC voltage
Rated voltage value
Ua rated DC
24 V
Total tolerance, static
±
3 % 3 % 3 % 3 %
Static line regulation,
approx. ±
0,1 % 0,1 % 0,1 % 0,5 %
Static load regulation,
approx. ±
1 % 1 % 1 % 1 %
Residual ripple
Peak-peak, max.
150 mV 150 mV 150 mV 150 mV in the load
range >100 mA
300 mV in the load
range up to 100 mA
Spikes peak-peak,
max. (bandwidth, 200
MHz)
240 mV 240 mV 240 mV 240 mV
Adjustment range 22.8...28.0 V 24...28.0 V
Product function /
output voltage can be
adjusted
Yes
Output voltage setting
 Remark
Using a potentiometer
Max. 480 W
Status display LED green for 24 V O.K.
Signaling Relay contact (NO contact, rating 60 V DC /0.3 A) for 24 V O.K.
